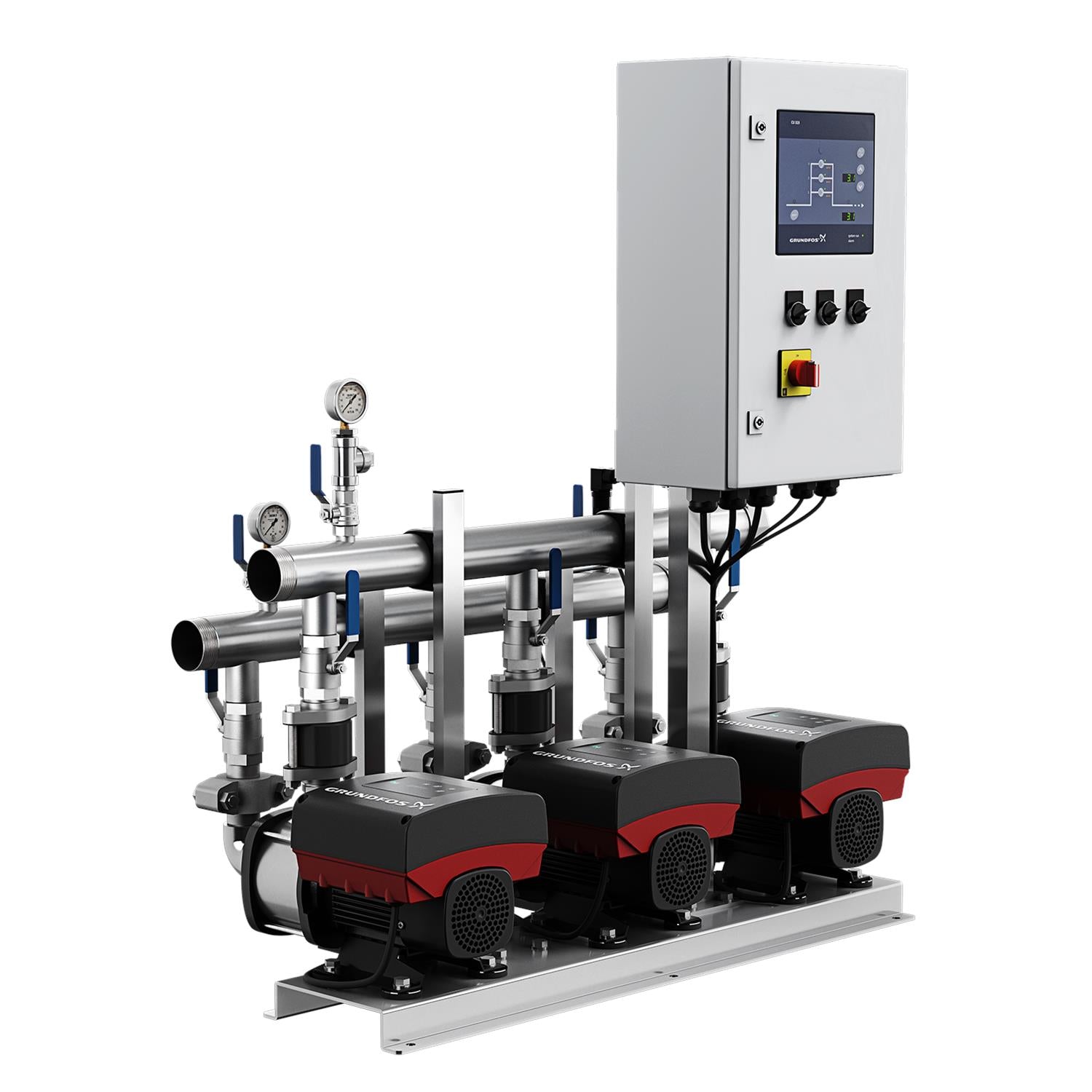

![Grundfos 91149125 - HYDRO MULTI-B/E 3 CME5-4]()
![Grundfos 91149125 - HYDRO MULTI-B/E 3 CME5-4]()
![Grundfos 91149125 - HYDRO MULTI-B/E 3 CME5-4]()
![Grundfos 91149125 - HYDRO MULTI-B/E 3 CME5-4]()
Description
Grundfos 91149125 - HYDRO MULTI-B/E 3 CME5-4 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
145.04 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 460-480 V
Pumped liquid
Water
Liquid temperature range
32 .. 140 °F
Rated current of system
0.4166666666666667
Net weight
279.0 lb
Gross weight
502.0 lb
Rated current
Product name:HYDRO MULTI-B/E 3 CME5-4
Pipe connection
2NPT
Sales region
Namreg
Rated flow
74 US gpm
Number of pumps
3
Model
A
Head max
174.9 ft
Rated head
145 ft
Type
E
Control type
E
Connection
2NPT
Unit
CU323-3
Pump
2 HP
Motor Curves
Dimensional Drawing
