Description

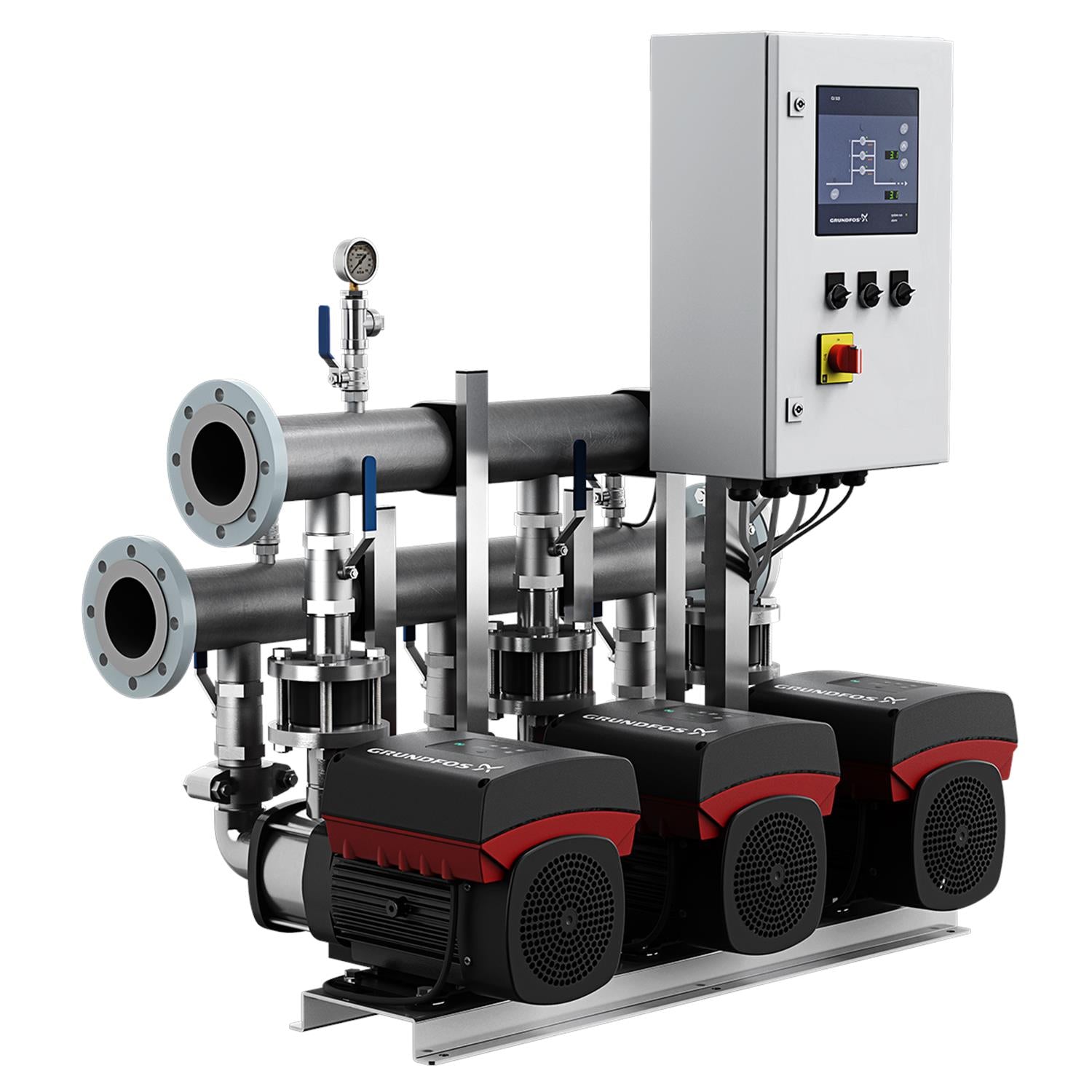

Grundfos 99184381 - HYDRO MULTI-B/E 3 CME25-2 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
145.04 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 208-230 V
Pumped liquid
Water
Liquid temperature range
32 .. 140 °F
Rated current of system
62 A
Net weight
684.0 lb
Gross weight
906.0 lb
Rated current
Product name:HYDRO MULTI-B/E 3 CME25-2
Pipe connection
4ANSI
Sales region
Namreg
Rated flow
349 US gpm
Number of pumps
3
Model
A
Head max
163.7 ft
Rated head
154.2 ft
Type
E
Control type
E
Connection
4ANSI
Unit
CU323-3
Pump
7.51 HP
Motor Curves
