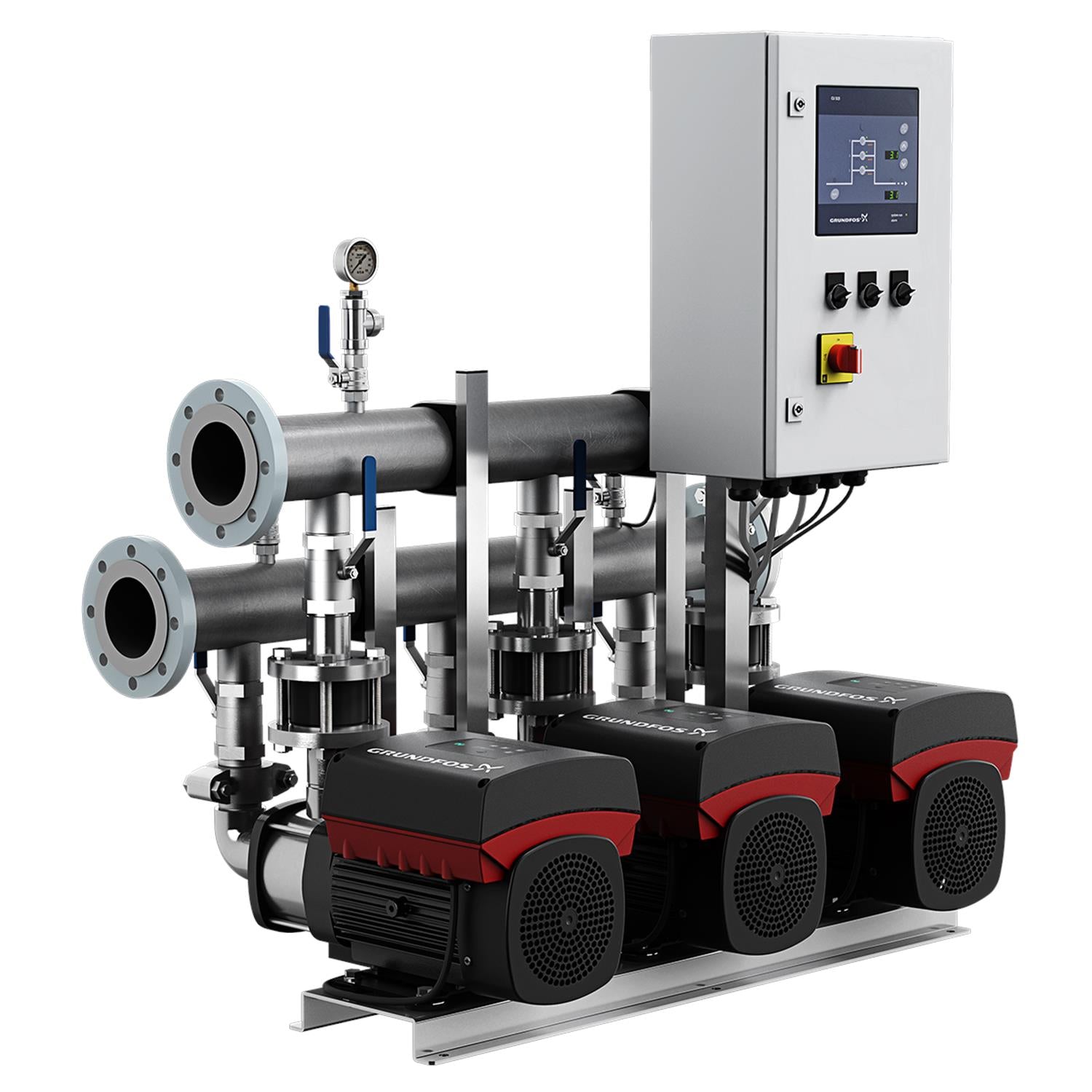

![Grundfos 91149134 - HYDRO MULTI-B/E 3 CME15-1]()
![Grundfos 91149134 - HYDRO MULTI-B/E 3 CME15-1]()
![Grundfos 91149134 - HYDRO MULTI-B/E 3 CME15-1]()
![Grundfos 91149134 - HYDRO MULTI-B/E 3 CME15-1]()
Description
Grundfos 91149134 - HYDRO MULTI-B/E 3 CME15-1 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
145.04 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 460-480 V
Pumped liquid
Water
Liquid temperature range
32 .. 140 °F
Rated current of system
13.4 A
Net weight
443.0 lb
Gross weight
666.0 lb
Rated current
Product name:HYDRO MULTI-B/E 3 CME15-1
Pipe connection
4ANSI
Sales region
Namreg
Rated flow
269 US gpm
Number of pumps
3
Model
A
Head max
83.99 ft
Rated head
69.56 ft
Type
E
Control type
E
Connection
4ANSI
Unit
CU323-3
Pump
3 HP
Motor Curves
Dimensional Drawing
