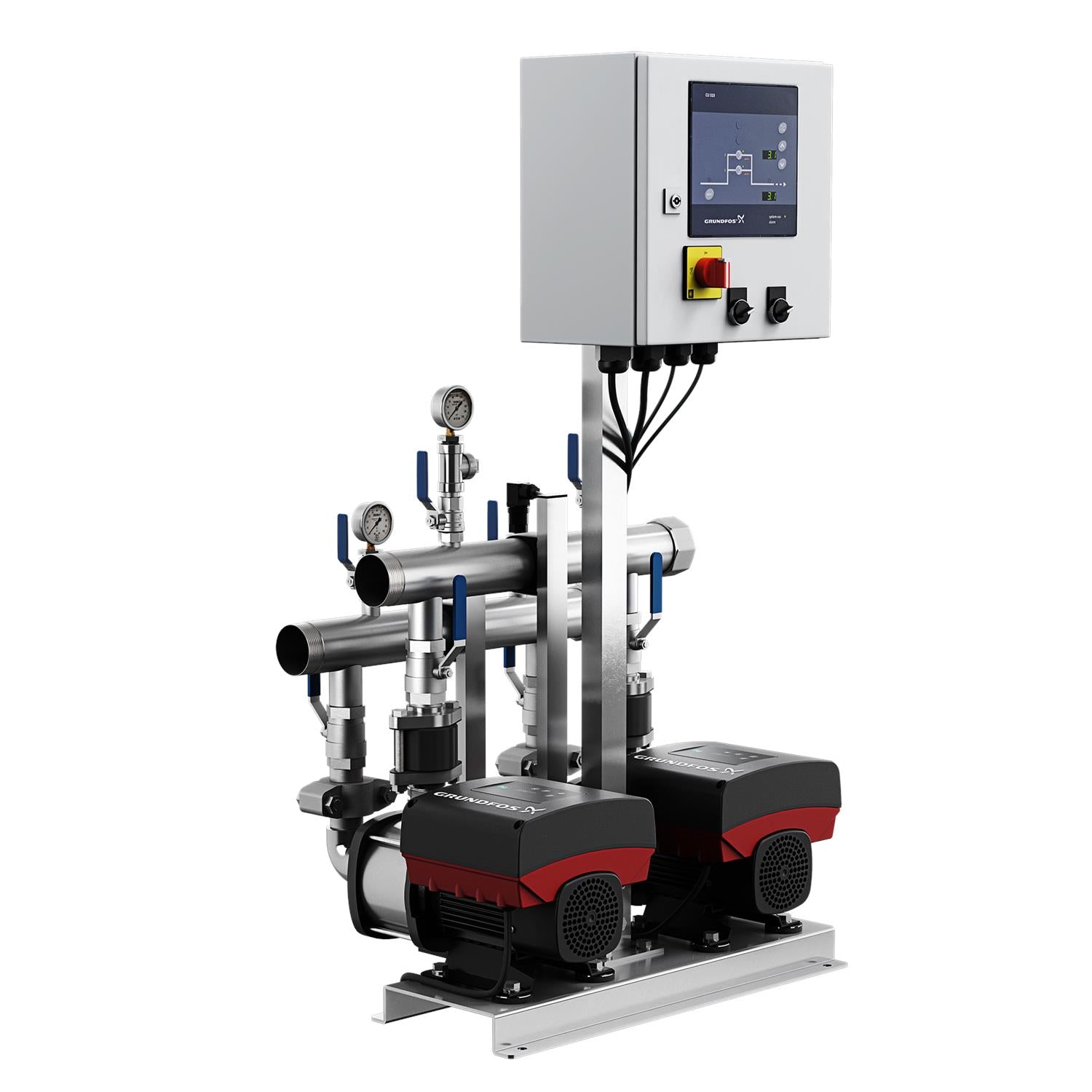

Grundfos 91149111 - HYDRO MULTI-B/E 2 CME5-4
Grundfos 91149111 - HYDRO MULTI-B/E 2 CME5-4
Grundfos 91149111 - HYDRO MULTI-B/E 2 CME5-4
Grundfos 91149111 - HYDRO MULTI-B/E 2 CME5-4

Grundfos 91149111 - HYDRO MULTI-B/E 2 CME5-4

Save $1,664.88
GRUNDFOSSKU: 91149111
Price:
$12,209.12 $13,874.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

HYDRO MULTI-B/E 2 CME5-4 | Pressure booster system designed and manufactured by Grundfos. Delivered on a common base plate, completely assembled and tested before it leaves the factory and ready for connection of water and electricity. All pumps are Grundfos CME pumps with integrated frequency drives connected in parallel and operated in cascade. The booster maintains a constant pressure through continuous adjustment of speed of the pumps and starting and stopping the pumps to meet the required flow. The system consists of:

Density 62.29 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 208-230 V
Pumped liquid Water
Liquid temperature range 32 .. 140 °F
Rated current of system 12.8 A
Net weight 255.0 lb
Gross weight 371.0 lb
Rated current Product name:HYDRO MULTI-B/E 2 CME5-4
Pipe connection 2NPT
Sales region Namreg
Rated flow 49.3 US gpm
Number of pumps 2
Model A
Head max 174.9 ft
Rated head 145 ft
Type E
Control type E
Connection 2NPT
Unit CU323-2
Pump 2 HP

Motor Curves

Dimensional Drawing
