Description

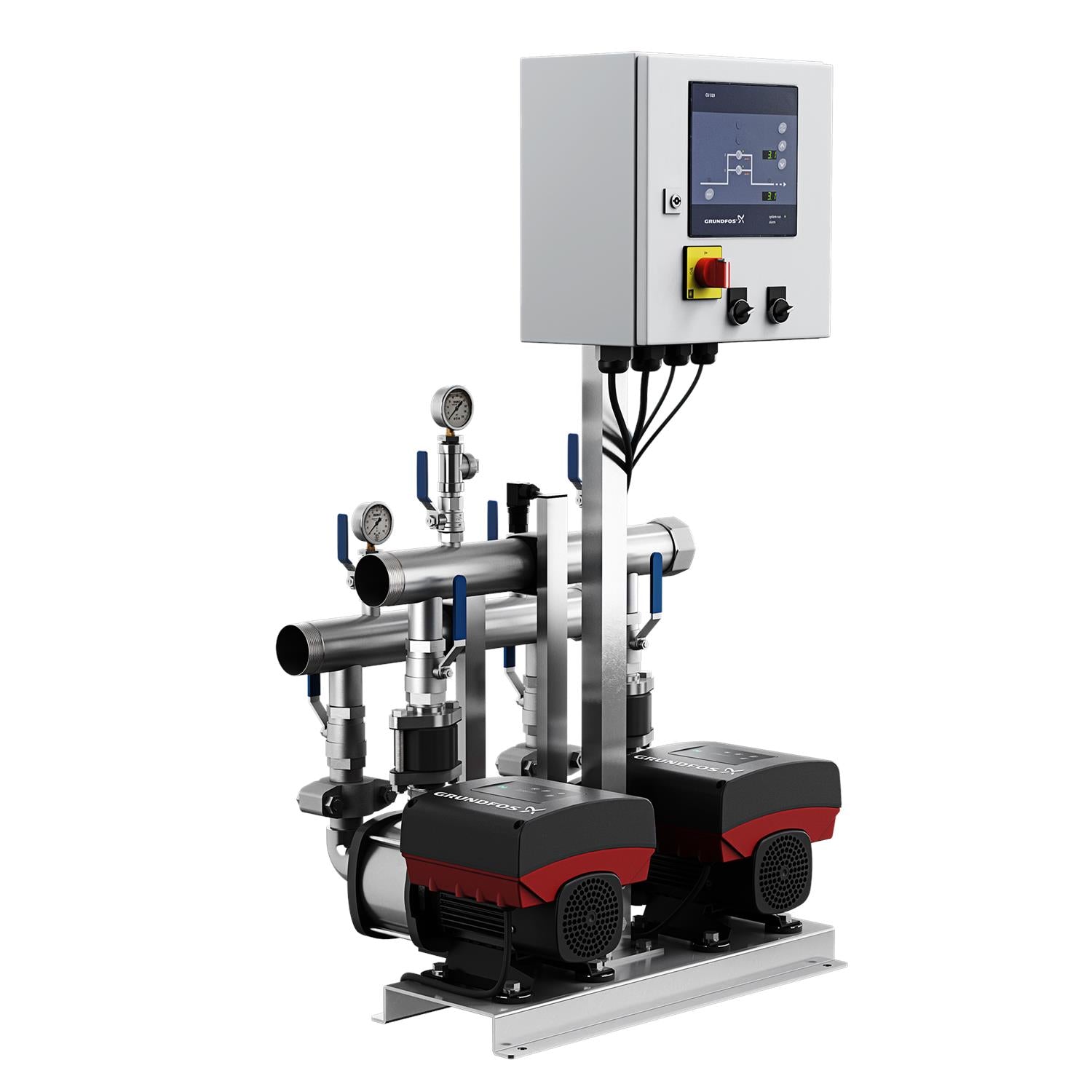

Grundfos 91149102 - HYDRO MULTI-B/E 2 CME3-5 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
145.04 psi
Selected liquid temperature
68 °F
Rated voltage
1 x 200-240 V
Pumped liquid
Water
Liquid temperature range
32 .. 140 °F
Rated current of system
15.4 A
Net weight
178.0 lb
Gross weight
294.0 lb
Rated current
Product name:HYDRO MULTI-B/E 2 CME3-5
Pipe connection
2NPT
Sales region
Namreg
Rated flow
32.6 US gpm
Number of pumps
2
Model
A
Head max
217.2 ft
Rated head
164 ft
Type
E
Control type
E
Connection
2NPT
Unit
CU323-2
Pump
1.5 HP
Motor Curves
