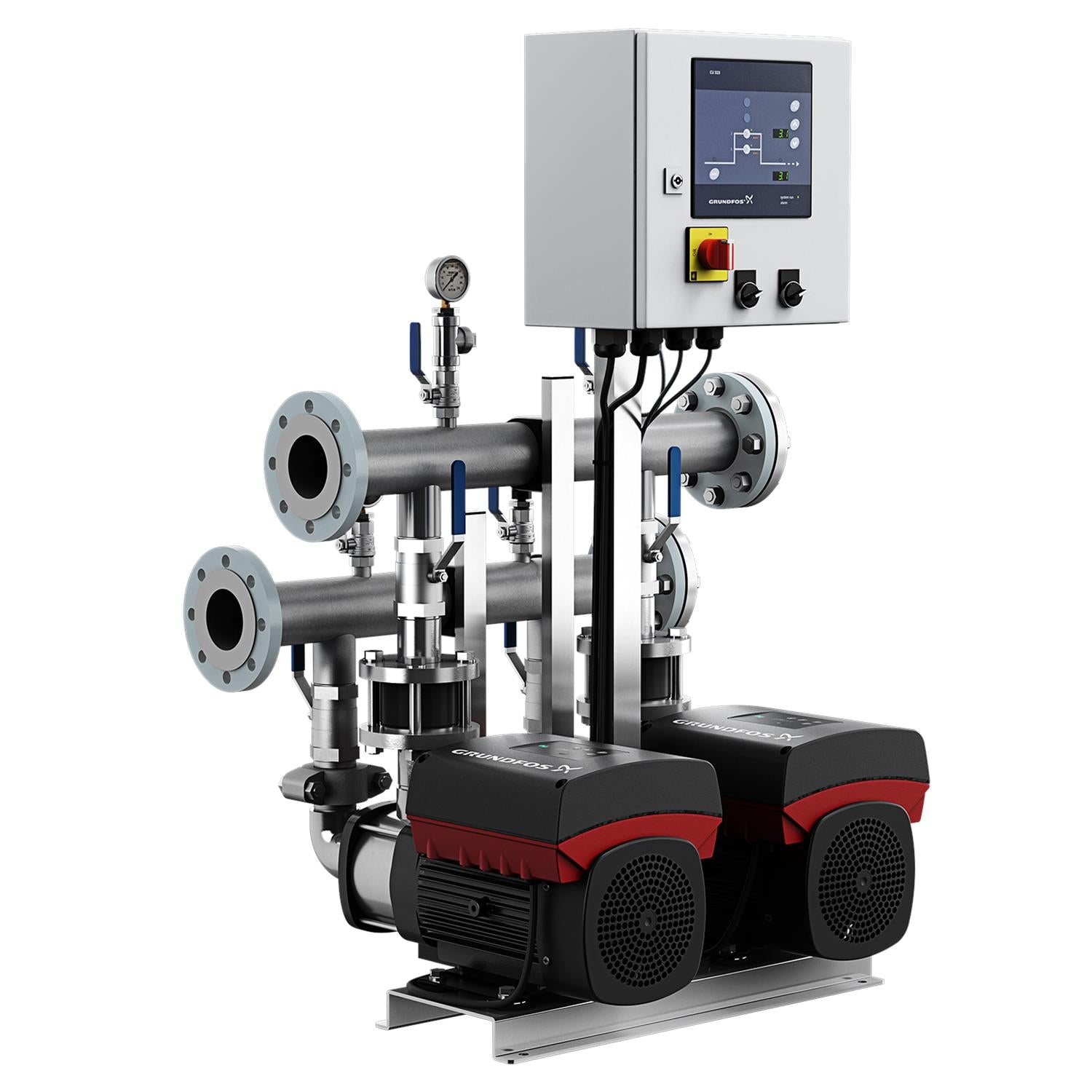

Grundfos 99184382 - HYDRO MULTI-B/E 2 CME25-1
Grundfos 99184382 - HYDRO MULTI-B/E 2 CME25-1
Grundfos 99184382 - HYDRO MULTI-B/E 2 CME25-1
Grundfos 99184382 - HYDRO MULTI-B/E 2 CME25-1

Grundfos 99184382 - HYDRO MULTI-B/E 2 CME25-1

Save $2,760.72
GRUNDFOSSKU: 99184382
Price:
$20,245.28 $23,006.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

HYDRO MULTI-B/E 2 CME25-1 | Pressure booster system designed and manufactured by Grundfos. Delivered on a common base plate, completely assembled and tested before it leaves the factory and ready for connection of water and electricity. All pumps are Grundfos CME pumps with integrated frequency drives connected in parallel and operated in cascade. The booster maintains a constant pressure through continuous adjustment of speed of the pumps and starting and stopping the pumps to meet the required flow. The system consists of:

Density 62.29 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460-480 V
Pumped liquid Water
Liquid temperature range 32 .. 140 °F
Rated current of system 14.4 A
Net weight 483.0 lb
Gross weight 706.0 lb
Rated current Product name:HYDRO MULTI-B/E 2 CME25-1
Pipe connection 4ANSI
Sales region Namreg
Rated flow 232 US gpm
Number of pumps 2
Model A
Head max 84.98 ft
Rated head 76.45 ft
Type E
Control type E
Connection 4ANSI
Unit CU323-2
Pump 5 HP
