Description

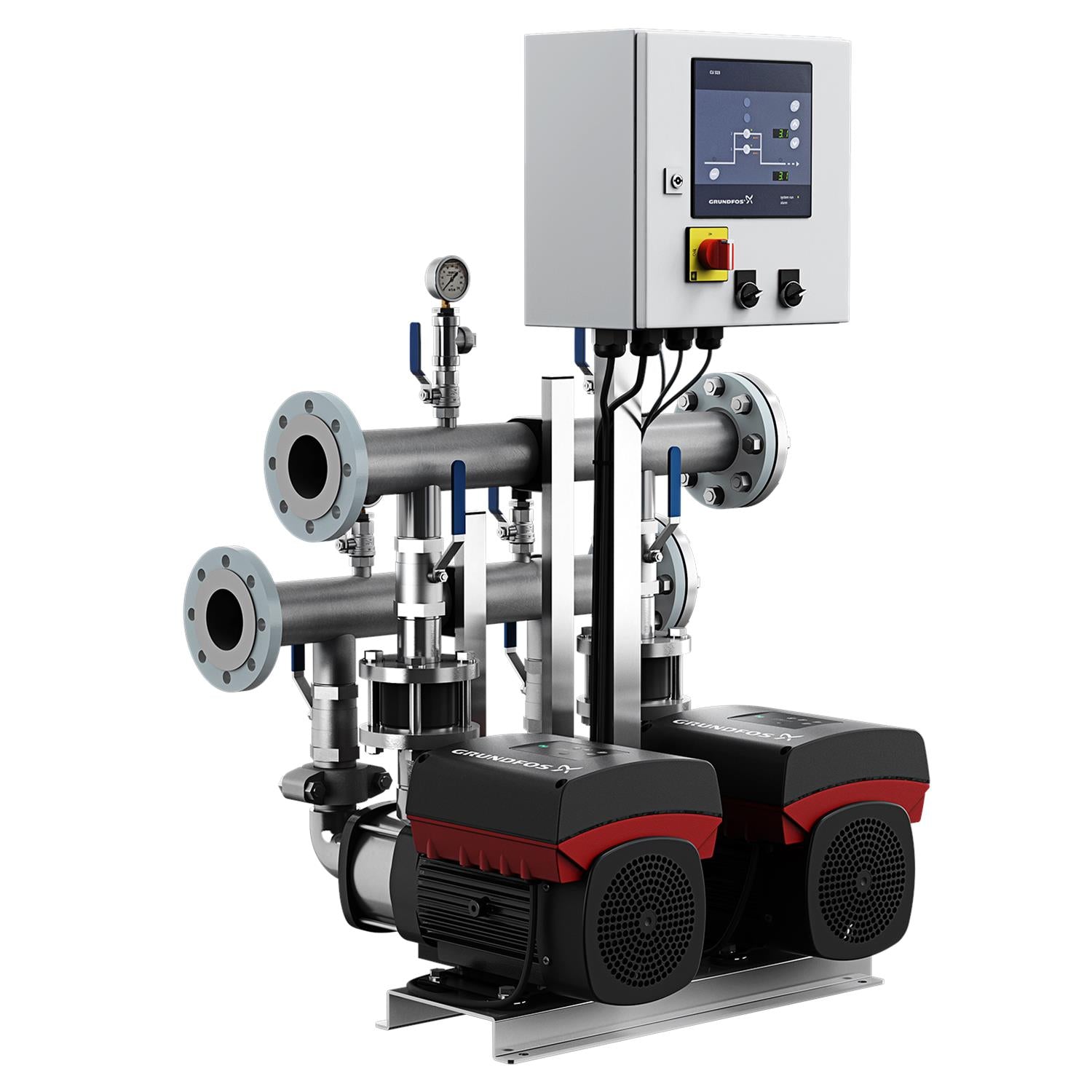

Grundfos 91149131 - HYDRO MULTI-B/E 2 CME15-1 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
145.04 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 460-480 V
Pumped liquid
Water
Liquid temperature range
32 .. 140 °F
Rated current of system
9.6 A
Net weight
300.0 lb
Gross weight
523.0 lb
Rated current
Product name:HYDRO MULTI-B/E 2 CME15-1
Pipe connection
3ANSI
Sales region
Namreg
Rated flow
180 US gpm
Number of pumps
2
Model
A
Head max
83.99 ft
Rated head
69.56 ft
Type
E
Control type
E
Connection
3ANSI
Unit
CU323-2
Pump
3 HP
