Description

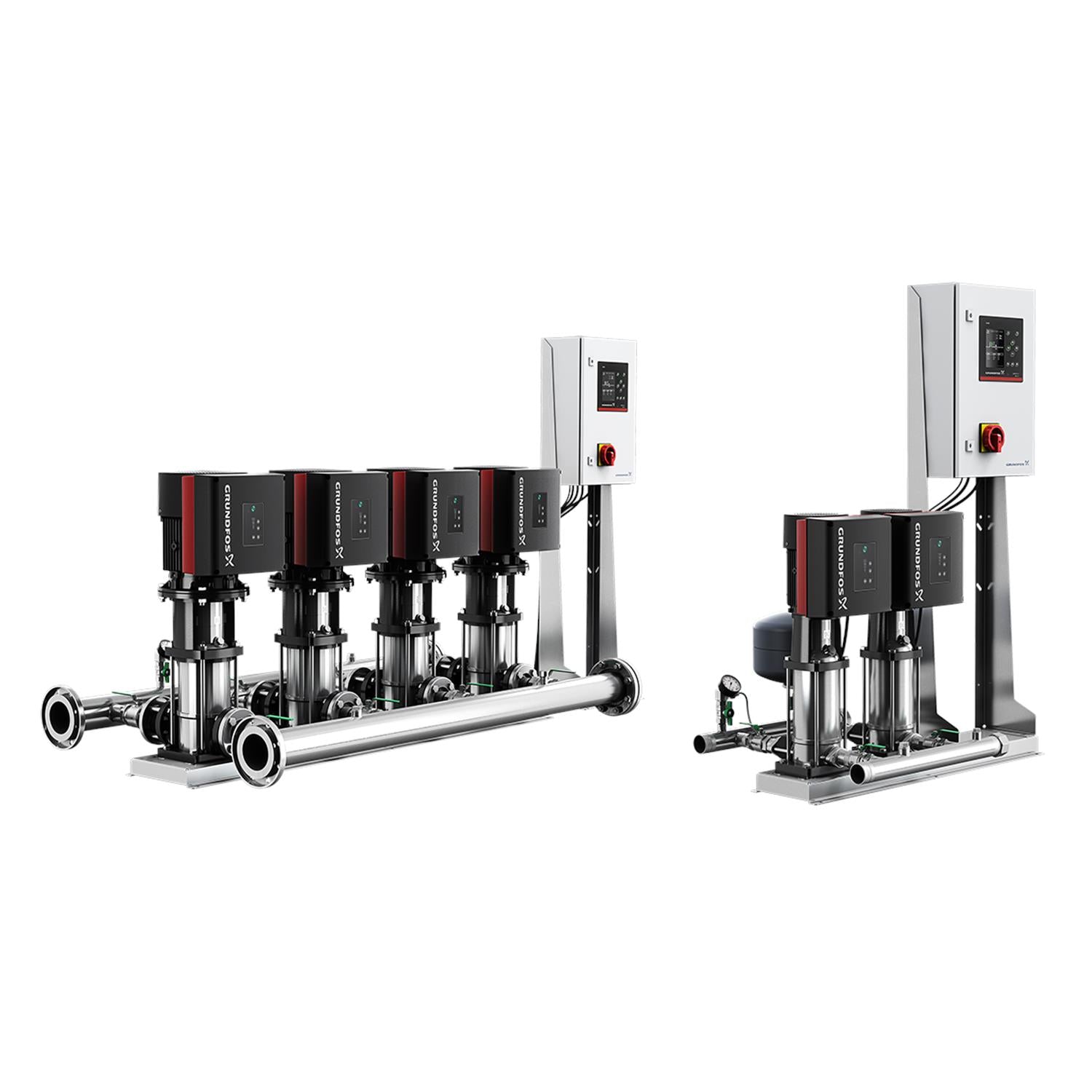

Grundfos 99689210 - Hydro MPC-E 5 CRE 32-2-1 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 460-480 V
Pumped liquid
Water
Liquid temperature range
41 .. 179.6 °F
Rated current of system
46.5 A
Net weight
1790.0 lb
Gross weight
2360.0 lb
Rated power - P2
7.5 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
8.8 A
Config. file no
98272422
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 5 CRE 32-2-1
Max flow
1060 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
793 US gpm
Number of pumps
5
Maximum head
168.6 ft
Number of phases of main pump
3
Return valve
Product name:Hydro MPC-E 5 CRE 32-2-1
Rated head
124.3 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
3
