Description

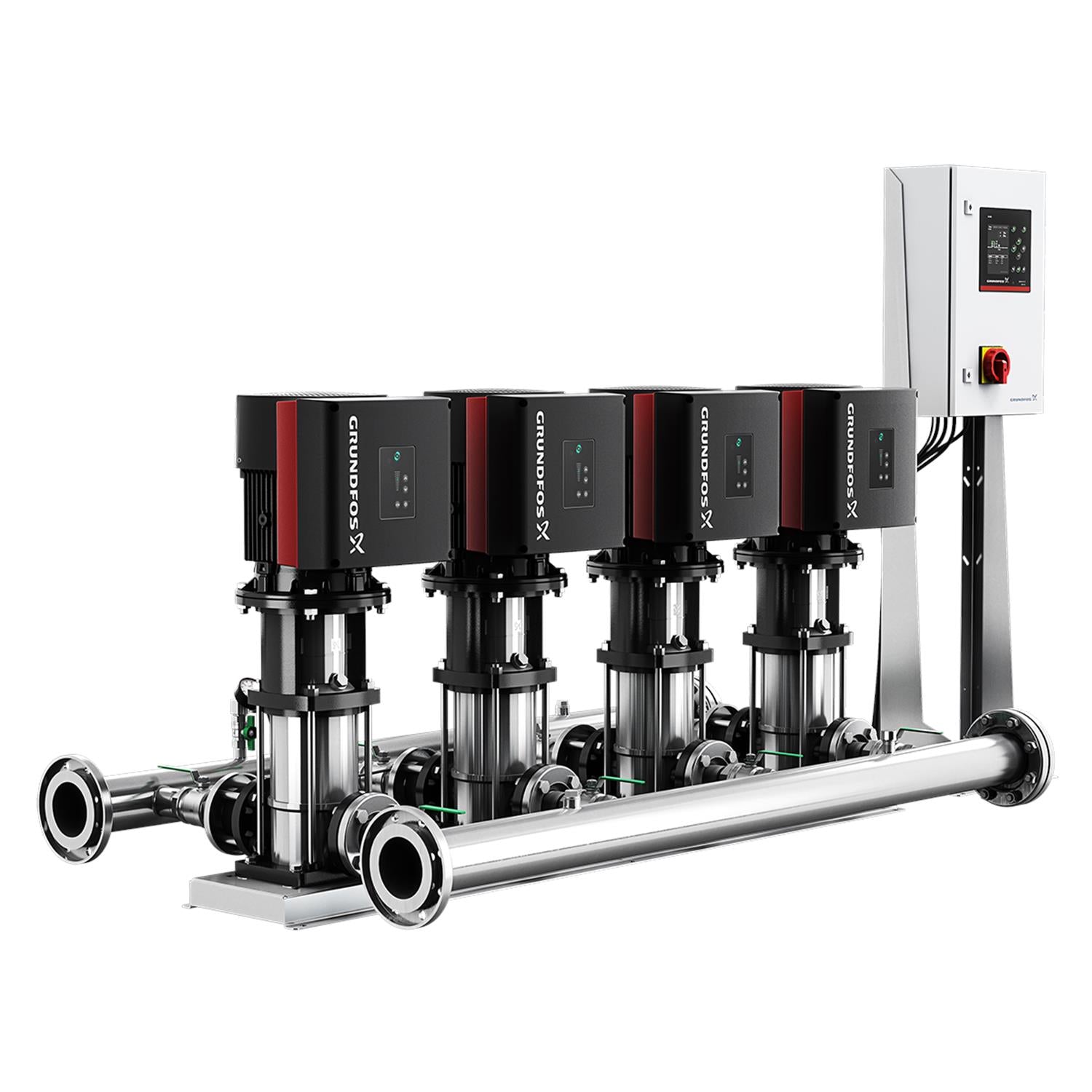

Hydro MPC-E 4 CRE 64-2 | Pressure booster system supplied as compact packaged assembly certified and listed by UL (Category QCZJ - Packaged Pumping Systems) for conformance to U. S. and Canadian Standards. Approvals: NSF61/NSF372 - Drinking Water and Low Lead approval. OSHPD Seismic certification available on MPC E CR(CUE) systems. All pumps are speed-controlled. Each pump is equipped with an integrated variable frequency drive motor (MLE motor).
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 460-480 V
Pumped liquid
Water
Liquid temperature range
41 .. 179.6 °F
Rated current of system
123 A
Net weight
2710.0 lb
Gross weight
3180.0 lb
Rated power - P2
25 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
30.5 A
Config. file no
98272463
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 4 CRE 64-2
Max flow
1800 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
1360 US gpm
Number of pumps
4
Maximum head
290.4 ft
Number of phases of main pump
3
Return valve
Product name:Hydro MPC-E 4 CRE 64-2
Rated head
212.6 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
3
