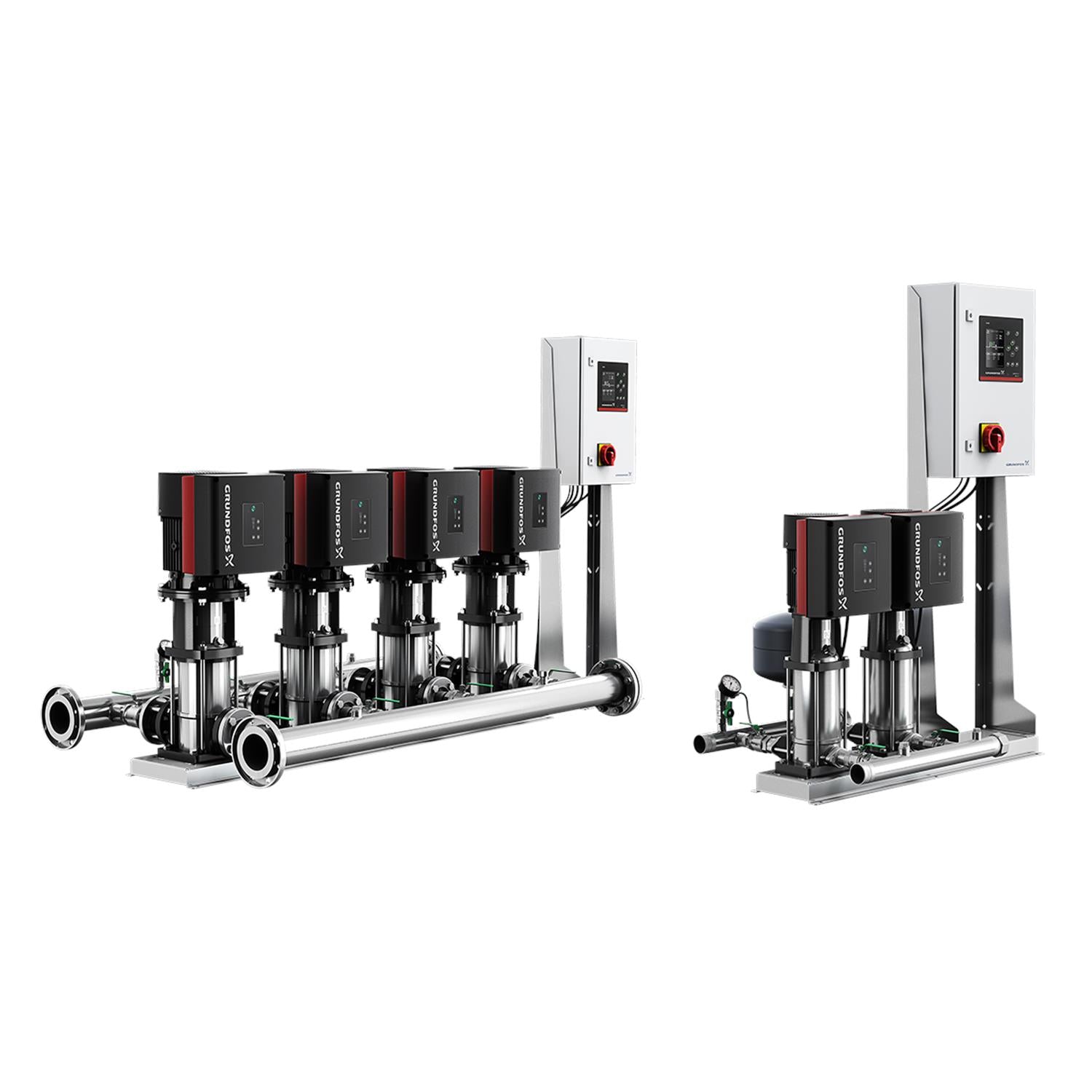

Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4
Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4
Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4
Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4
Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4
Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4

Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4

GRUNDFOSSKU: 99649794
Price:
$26,670.16
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99649794 - Hydro MPC-E 4 CRE 5-4 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 1 x 208-230 V
Pumped liquid Water
Liquid temperature range 41 .. 140 °F
Rated current of system 27.8 A
Net weight 454.0 lb
Gross weight 752.0 lb
Rated power - P2 1.5 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 6.48 A
Config. file no 98272373
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 4 CRE 5-4
Max flow 180 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 122 US gpm
Number of pumps 4
Maximum head 135.5 ft
Number of phases of main pump 1
Return valve Product name:Hydro MPC-E 4 CRE 5-4
Rated head 93.51 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 1

Motor Curves

Dimensional Drawing

DWiring Diagram
