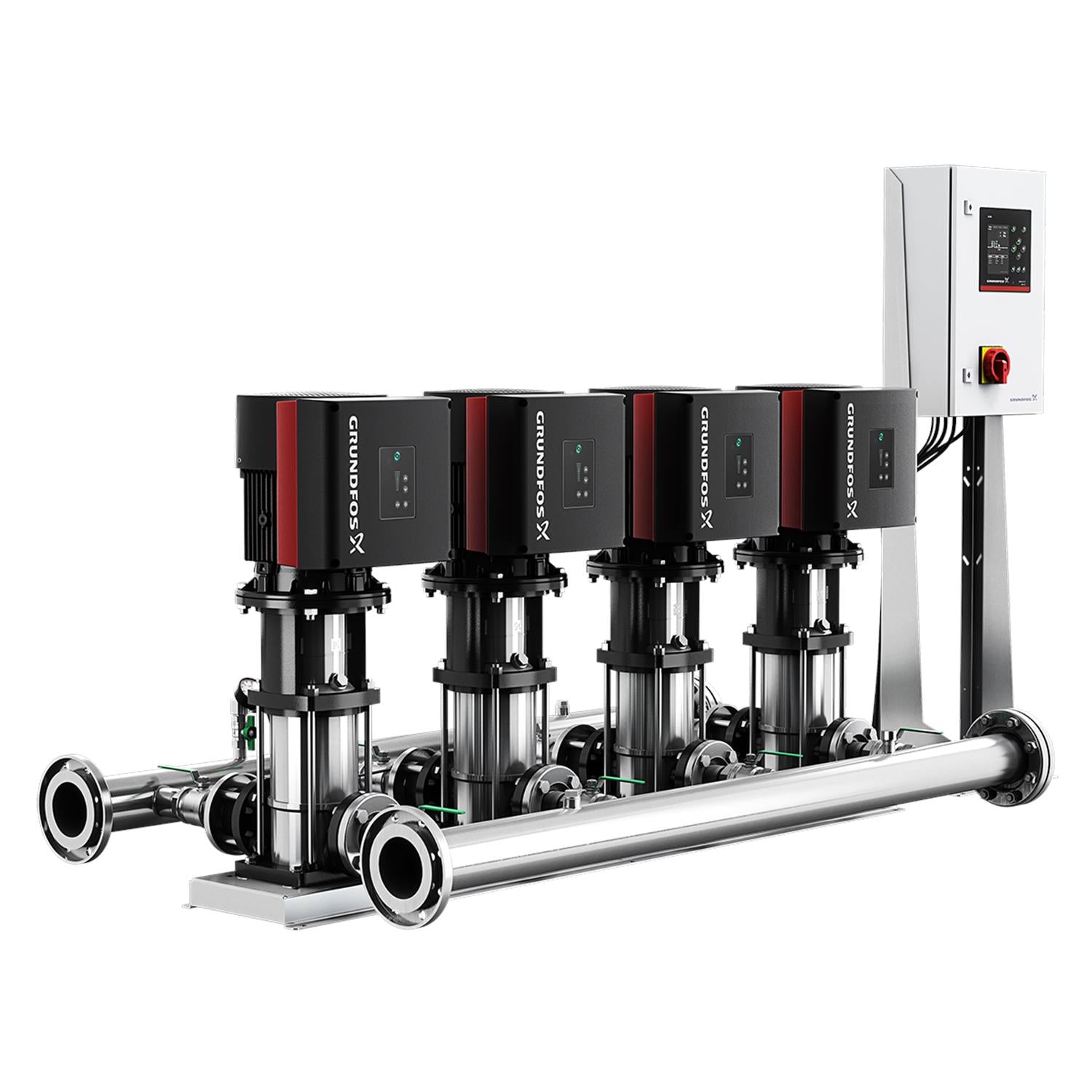

Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2
Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2
Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2
Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2
Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2
Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2

Grundfos 99689481 - Hydro MPC-E 4 CRE 15-2

GRUNDFOSSKU: 99689481
Price:
$42,634.24
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro MPC-E 4 CRE 15-2 | Pressure booster system supplied as compact packaged assembly certified and listed by UL (Category QCZJ - Packaged Pumping Systems) for conformance to U. S. and Canadian Standards. Approvals: NSF61/NSF372 - Drinking Water and Low Lead approval. OSHPD Seismic certification available on MPC E CR(CUE) systems. All pumps are speed-controlled. Each pump is equipped with an integrated variable frequency drive motor (MLE motor).

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 208-230 V
Pumped liquid Water
Liquid temperature range 41 .. 179.6 °F
Rated current of system 53.8 A
Net weight 1030.0 lb
Gross weight 1380.0 lb
Rated power - P2 5 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 12.7 A
Config. file no 98272402
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 4 CRE 15-2
Max flow 500 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 361 US gpm
Number of pumps 4
Maximum head 135.5 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 4 CRE 15-2
Rated head 103.7 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3
