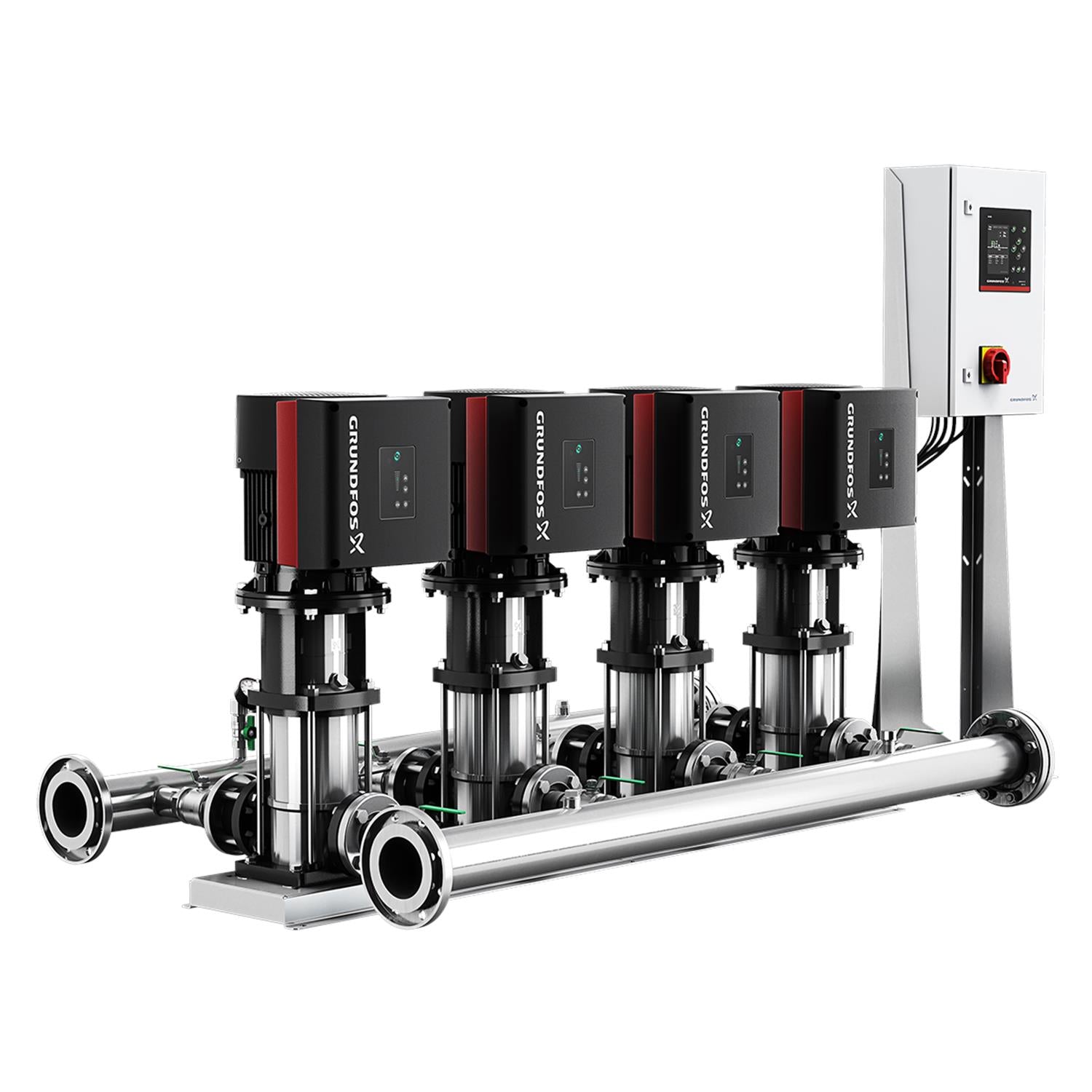

![Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1]()
![Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1]()
![Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1]()
![Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1]()
![Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1]()
![Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1]()
Description
Grundfos 99689696 - Hydro MPC-E 4 CRE 15-1 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
1 x 208-230 V
Pumped liquid
Water
Liquid temperature range
41 .. 179.6 °F
Rated current of system
37.4 A
Net weight
822.0 lb
Gross weight
1180.0 lb
Rated power - P2
2 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
8.8 A
Config. file no
98272401
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 4 CRE 15-1
Max flow
500 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
317 US gpm
Number of pumps
4
Maximum head
64.31 ft
Number of phases of main pump
1
Return valve
Product name:Hydro MPC-E 4 CRE 15-1
Rated head
51.84 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
1
Motor Curves
