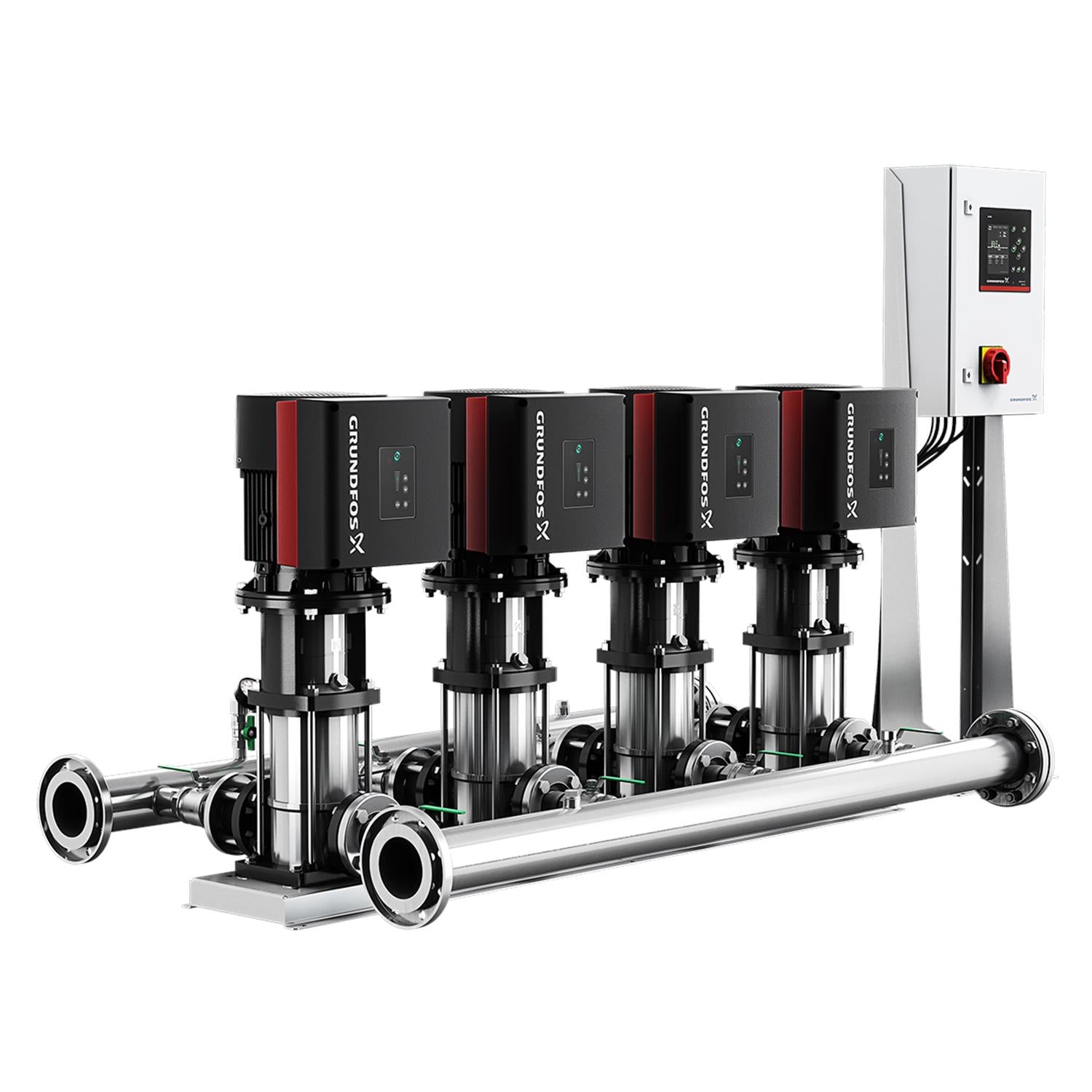

Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2
Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2
Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2
Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2
Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2
Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2

Grundfos 99689476 - Hydro MPC-E 4 CRE 10-2

GRUNDFOSSKU: 99689476
Price:
$33,869.44
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro MPC-E 4 CRE 10-2 | Pressure booster system supplied as compact packaged assembly certified and listed by UL (Category QCZJ - Packaged Pumping Systems) for conformance to U. S. and Canadian Standards. Approvals: NSF61/NSF372 - Drinking Water and Low Lead approval. OSHPD Seismic certification available on MPC E CR(CUE) systems. All pumps are speed-controlled. Each pump is equipped with an integrated variable frequency drive motor (MLE motor).

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 208-230 V
Pumped liquid Water
Liquid temperature range 41 .. 179.6 °F
Rated current of system 17.4 A
Net weight 781.0 lb
Gross weight 1130.0 lb
Rated power - P2 1.5 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 3.98 A
Config. file no 98272389
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 4 CRE 10-2
Max flow 277 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 213 US gpm
Number of pumps 4
Maximum head 95.81 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 4 CRE 10-2
Rated head 72.51 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3

Motor Curves

Dimensional Drawing

DWiring Diagram
