Description

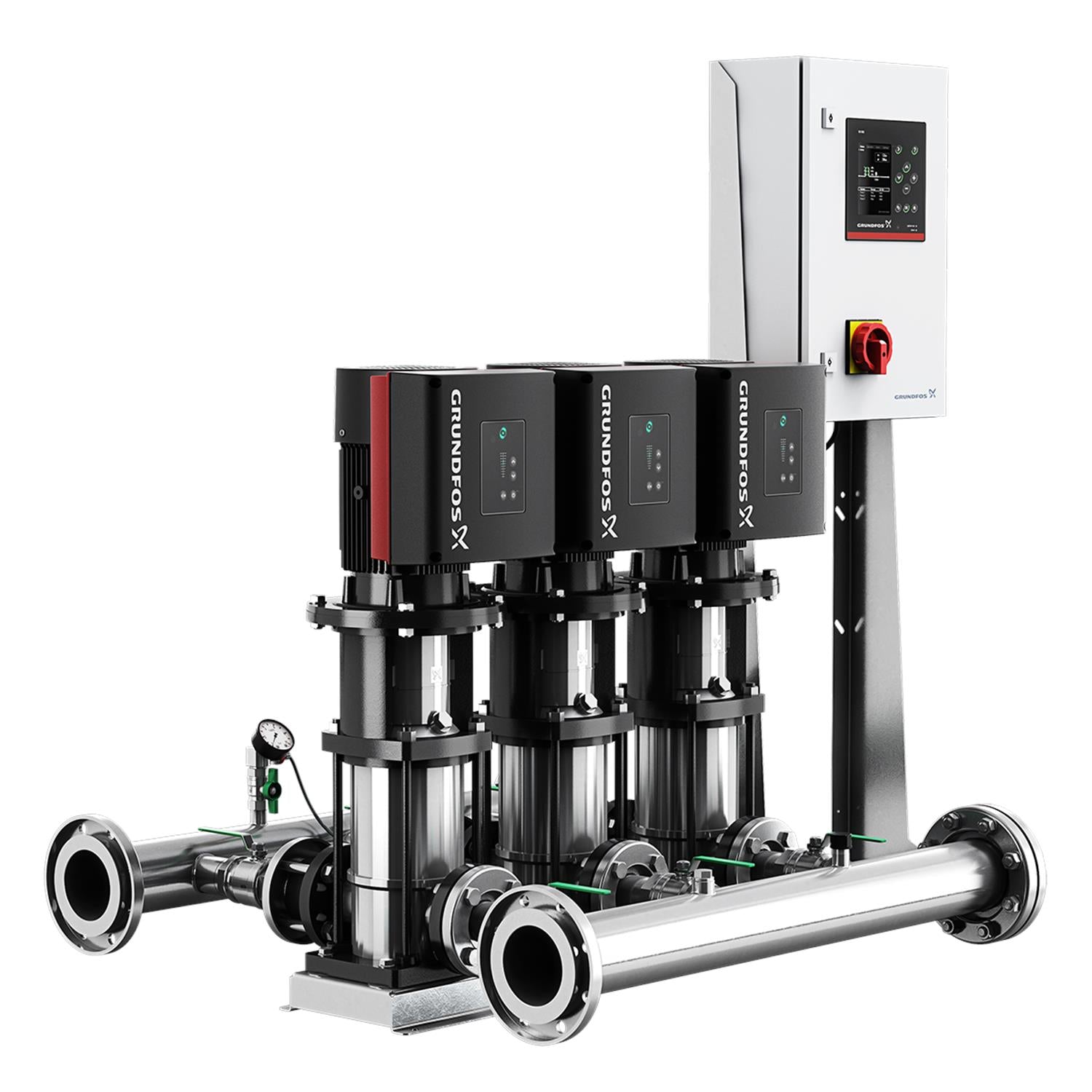

Grundfos 99689055 - Hydro MPC-E 3 CRE 64-2-1 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 460-480 V
Pumped liquid
Water
Liquid temperature range
41 .. 179.6 °F
Rated current of system
79 A
Net weight
1960.0 lb
Gross weight
2440.0 lb
Rated power - P2
20 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
26 A
Config. file no
98272351
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 3 CRE 64-2-1
Max flow
1350 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
1020 US gpm
Number of pumps
3
Maximum head
242.8 ft
Number of phases of main pump
3
Return valve
Product name:Hydro MPC-E 3 CRE 64-2-1
Rated head
176.5 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
3
Motor Curves
