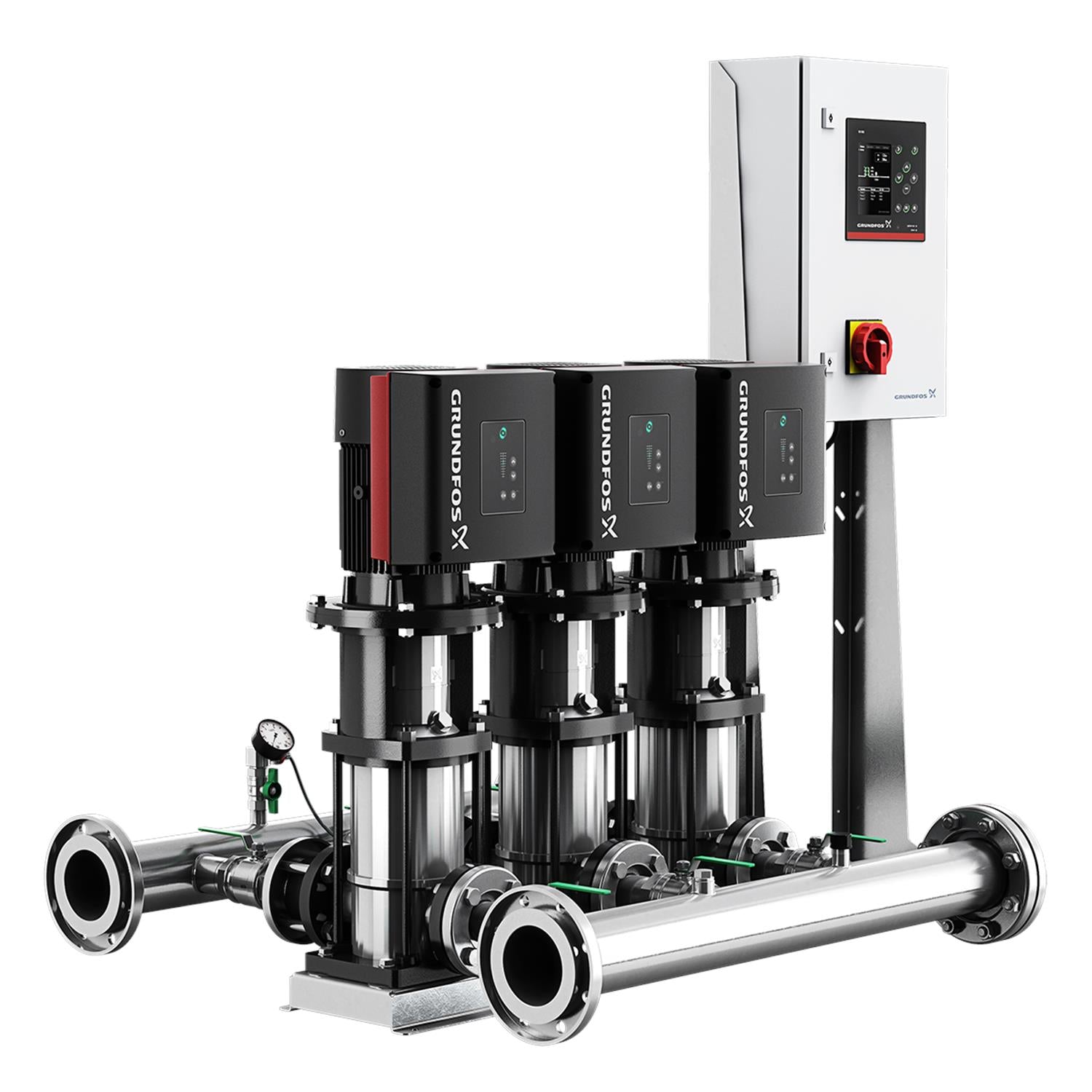

Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2
Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2
Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2
Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2
Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2
Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2

Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2

GRUNDFOSSKU: 99689041
Price:
$57,590.72
Build to order – stocked components,typically available in 22 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99689041 - Hydro MPC-E 3 CRE 45-3-2 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460-480 V
Pumped liquid Water
Liquid temperature range 41 .. 179.6 °F
Rated current of system 79 A
Net weight 1820.0 lb
Gross weight 2180.0 lb
Rated power - P2 20 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 26 A
Config. file no 98272444
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 3 CRE 45-3-2
Max flow 925 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 713 US gpm
Number of pumps 3
Maximum head 316.6 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 3 CRE 45-3-2
Rated head 247.4 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3
