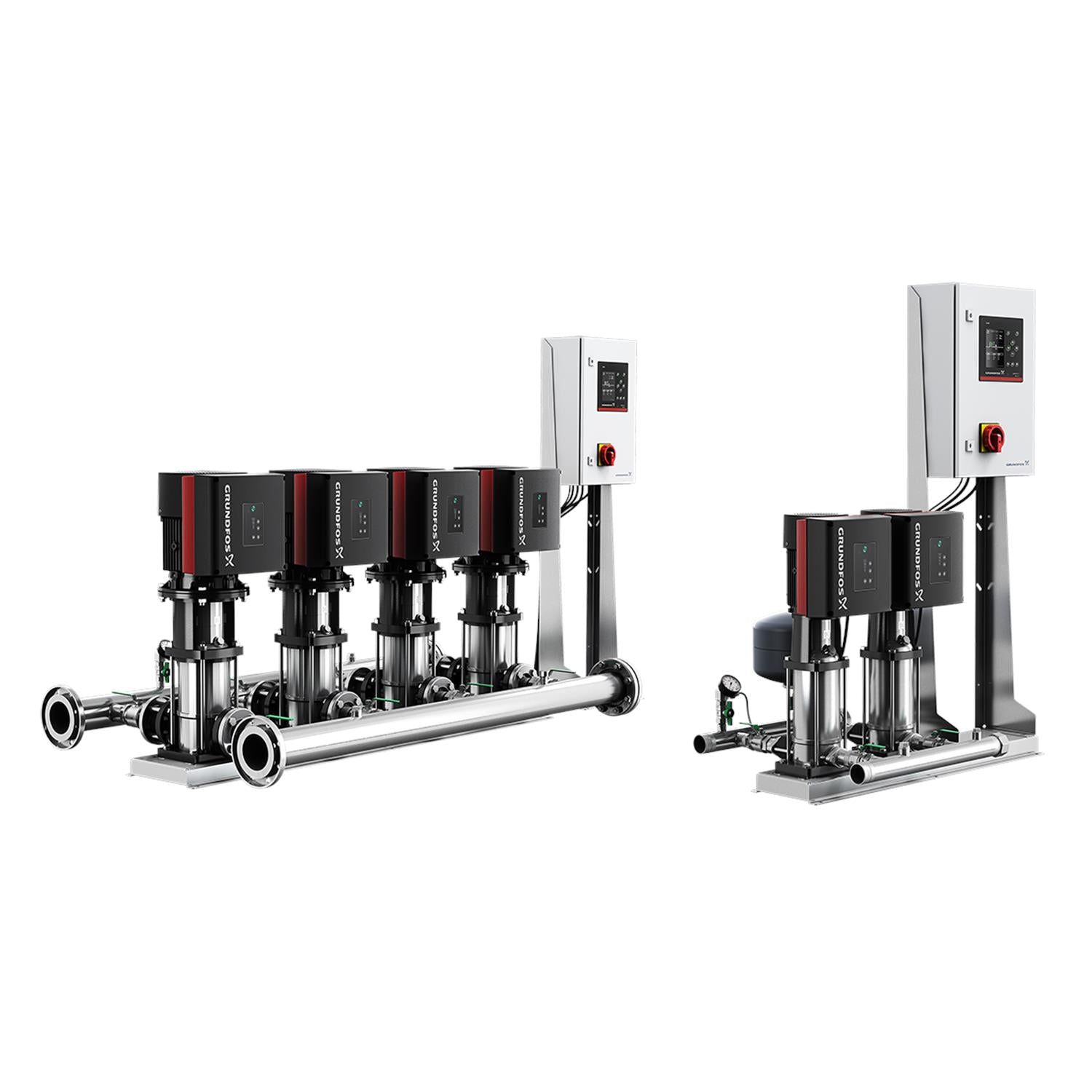

Grundfos 99649070 - Hydro MPC-E 3 CRE 3-12
Grundfos 99649070 - Hydro MPC-E 3 CRE 3-12

Grundfos 99649070 - Hydro MPC-E 3 CRE 3-12

GRUNDFOSSKU: 99649070
Price:
$24,493.92
Build to order – stocked components, typically available in 21 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99649070 - Hydro MPC-E 3 CRE 3-12 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460-480 V
Pumped liquid Water
Liquid temperature range 41 .. 140 °F
Rated current of system 0.375
Net weight 392.0 lb
Gross weight 690.0 lb
Rated power - P2 2 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 2.65 A
Config. file no 98272363
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 3 CRE 3-12
Max flow 71.3 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 46.2 US gpm
Number of pumps 3
Maximum head 373.4 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 3 CRE 3-12
Rated head 272.3 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3
