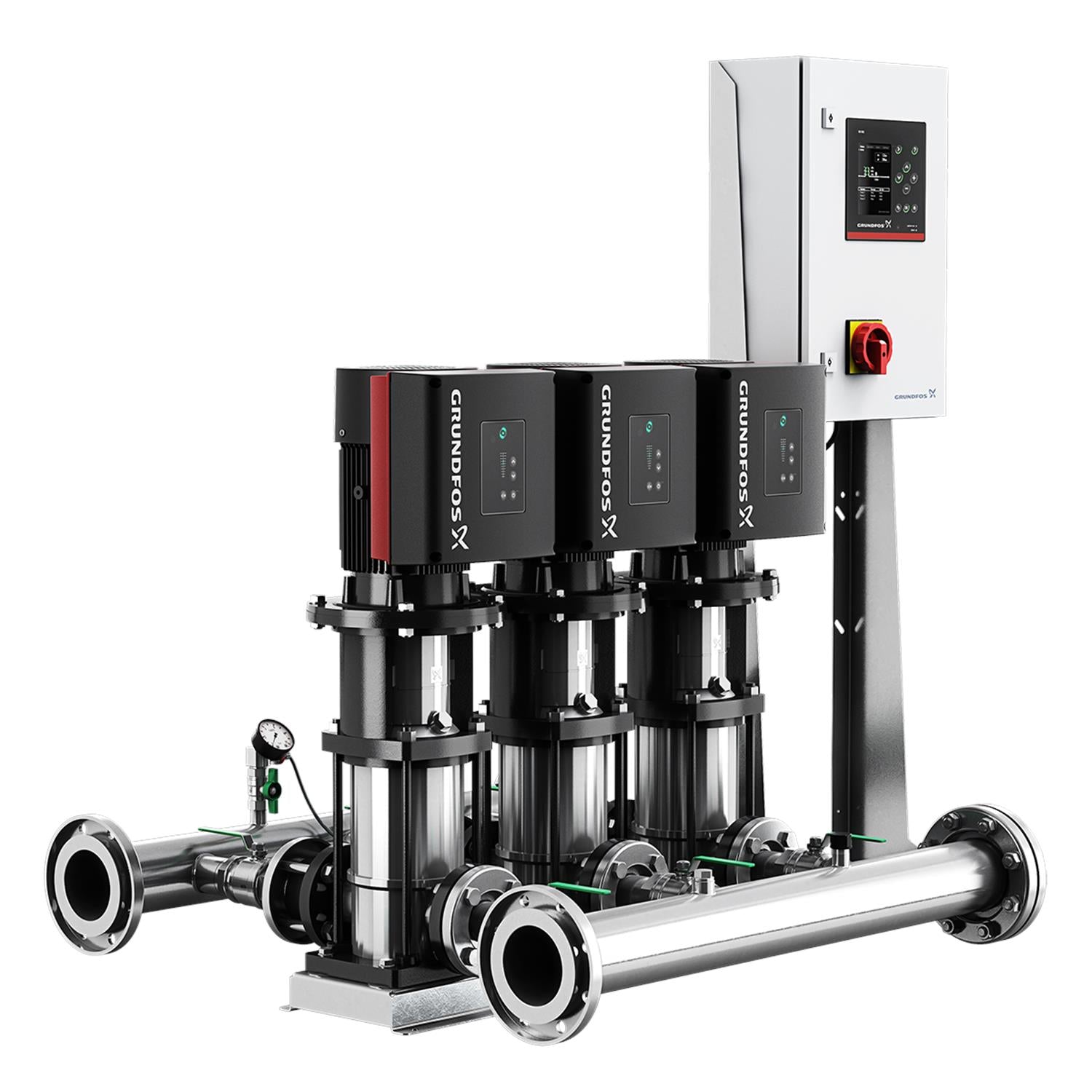

Grundfos 99689021 - Hydro MPC-E 3 CRE 20-4
Grundfos 99689021 - Hydro MPC-E 3 CRE 20-4
Grundfos 99689021 - Hydro MPC-E 3 CRE 20-4
Grundfos 99689021 - Hydro MPC-E 3 CRE 20-4

Grundfos 99689021 - Hydro MPC-E 3 CRE 20-4

GRUNDFOSSKU: 99689021
Price:
$38,471.84
Build to order – stocked components, typically available in 12 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro MPC-E 3 CRE 20-4 | Pressure booster system supplied as compact packaged assembly certified and listed by UL (Category QCZJ - Packaged Pumping Systems) for conformance to U. S. and Canadian Standards. Approvals: NSF61/NSF372 - Drinking Water and Low Lead approval. OSHPD Seismic certification available on MPC E CR(CUE) systems. All pumps are speed-controlled. Each pump is equipped with an integrated variable frequency drive motor (MLE motor).

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460-480 V
Pumped liquid Water
Liquid temperature range 41 .. 179.6 °F
Rated current of system 38.2 A
Net weight 957.0 lb
Gross weight 1250.0 lb
Rated power - P2 10 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 0
Config. file no 98272413
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 3 CRE 20-4
Max flow 462 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 334 US gpm
Number of pumps 3
Maximum head 274.3 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 3 CRE 20-4
Rated head 210.3 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3
