Description

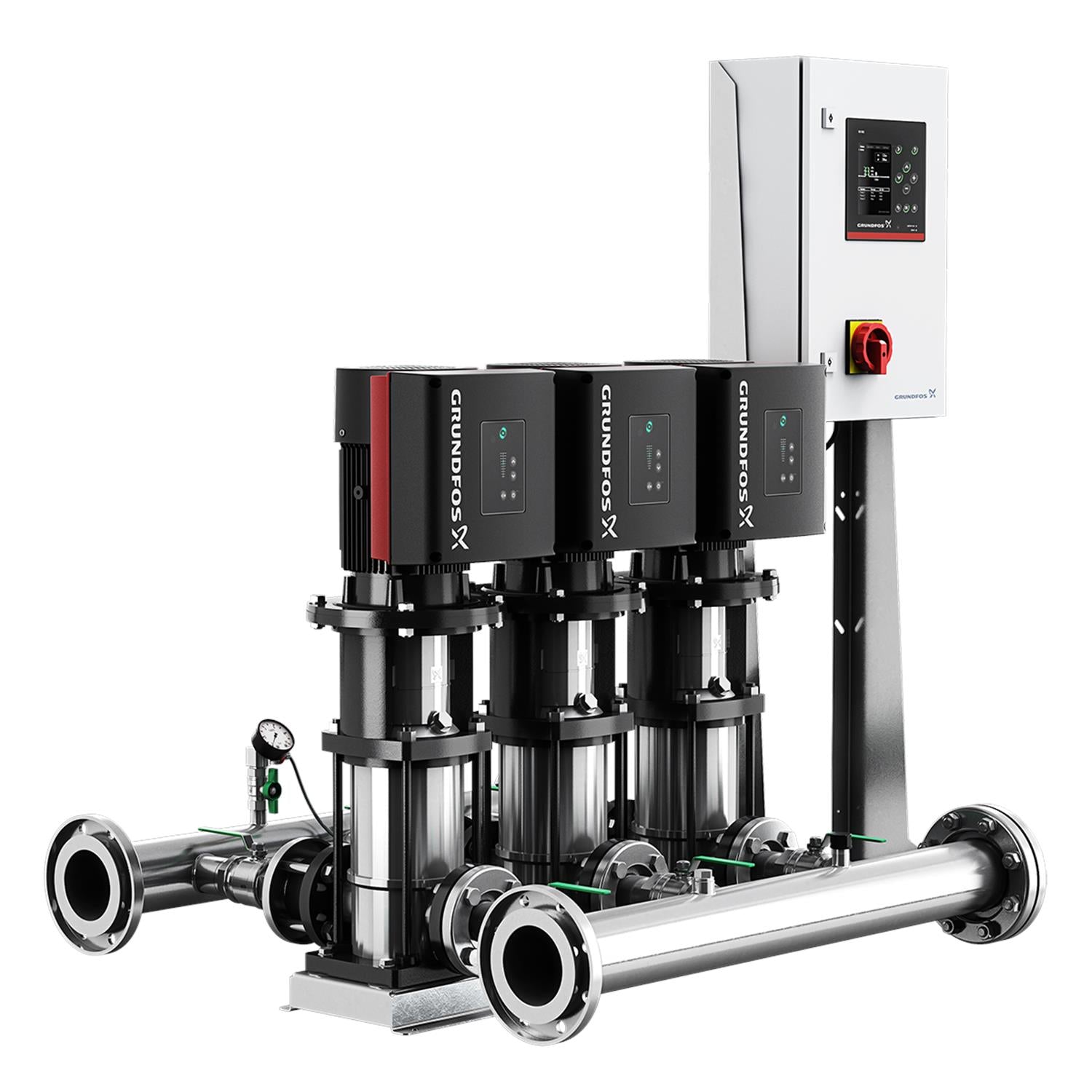

Grundfos 99689447 - Hydro MPC-E 3 CRE 15-3 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 208-230 V
Pumped liquid
Water
Liquid temperature range
41 .. 179.6 °F
Rated current of system
61 A
Net weight
900.0 lb
Gross weight
1200.0 lb
Rated power - P2
7.5 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
19.3 A
Config. file no
98272347
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 3 CRE 15-3
Max flow
375 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
271 US gpm
Number of pumps
3
Maximum head
200.5 ft
Number of phases of main pump
3
Return valve
Product name:Hydro MPC-E 3 CRE 15-3
Rated head
152.9 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
3
Motor Curves
