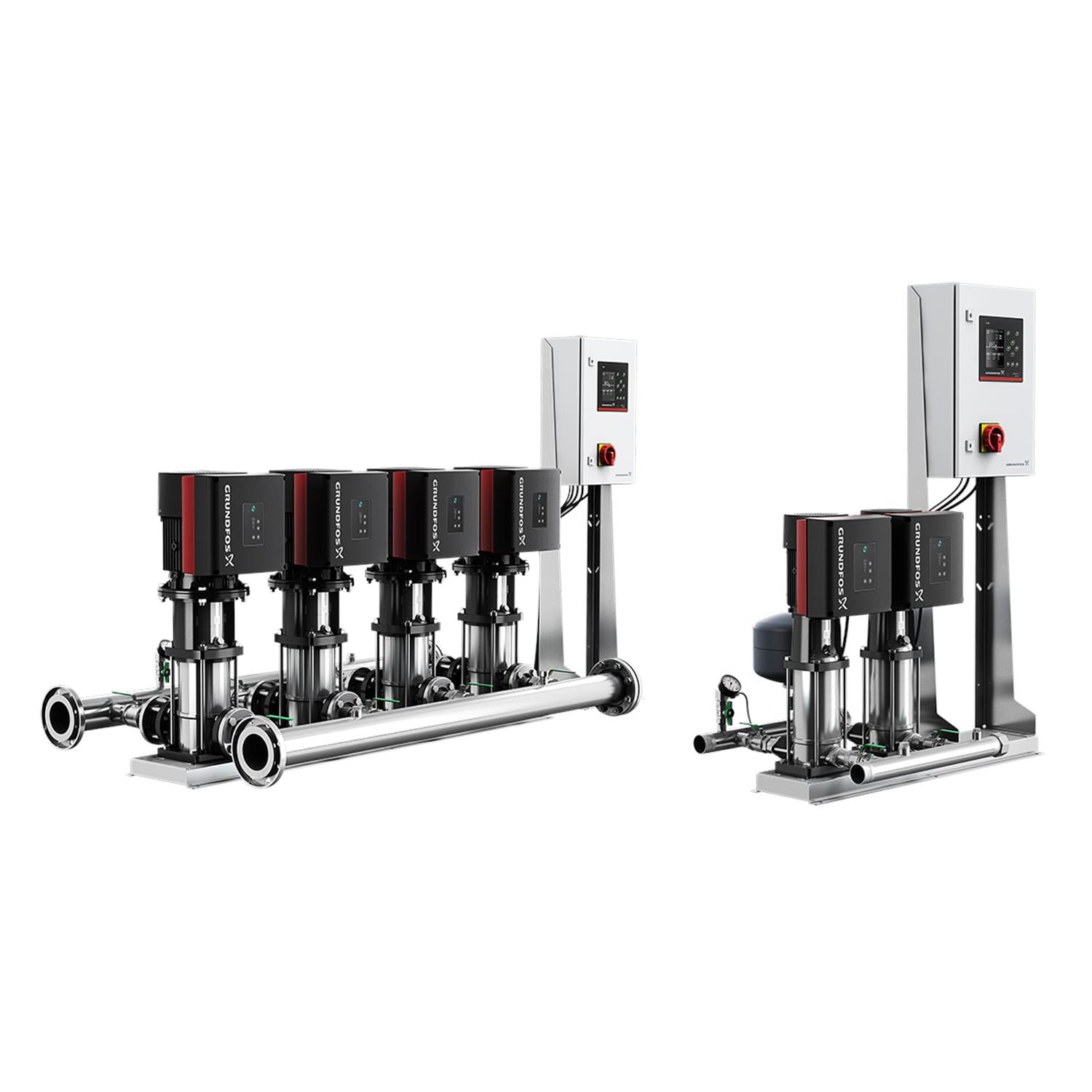

Image shown may not be actual product
![Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6]()
![Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6]()
![Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6]()
![Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6]()
![Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6]()
![Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6]()
Description
Grundfos 99689443 - Hydro MPC-E 3 CRE 10-6 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
3 x 208-230 V
Pumped liquid
Water
Liquid temperature range
41 .. 179.6 °F
Rated current of system
40.6 A
Net weight
756.0 lb
Gross weight
1050.0 lb
Rated power - P2
5 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
12.7 A
Config. file no
98272392
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 3 CRE 10-6
Max flow
207 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
160 US gpm
Number of pumps
3
Maximum head
289.4 ft
Number of phases of main pump
3
Return valve
Product name:Hydro MPC-E 3 CRE 10-6
Rated head
227 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
3
Motor Curves
