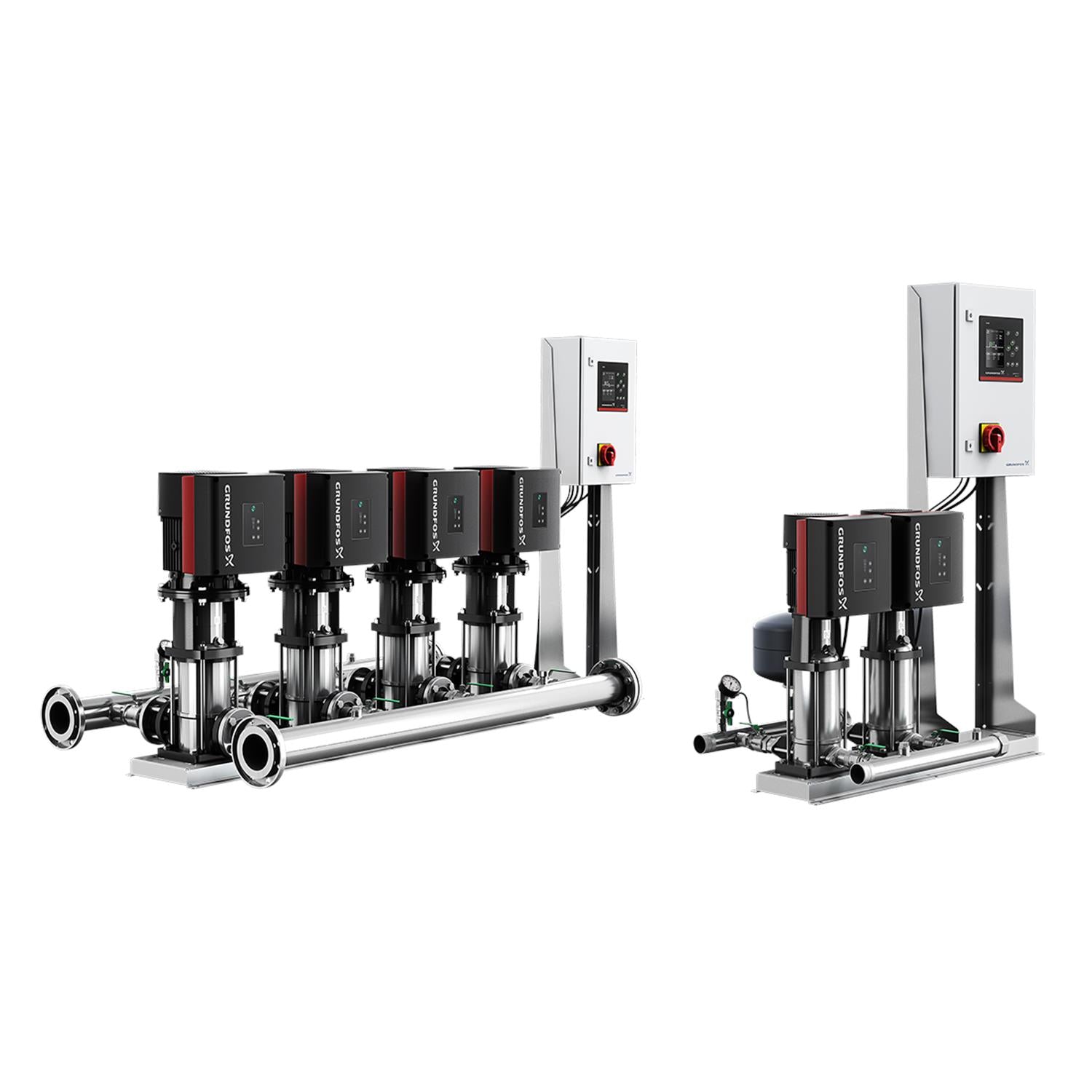

Image shown may not be actual product
Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4
Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4
Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4
Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4
Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4
Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4

Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4

GRUNDFOSSKU: 99689442
Price:
$29,707.92
Build to order – stocked components,typically available in 12 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99689442 - Hydro MPC-E 3 CRE 10-4 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 208-230 V
Pumped liquid Water
Liquid temperature range 41 .. 179.6 °F
Rated current of system 24.7 A
Net weight 695.0 lb
Gross weight 992.0 lb
Rated power - P2 3 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 7.64 A
Config. file no 98272390
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 3 CRE 10-4
Max flow 207 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 160 US gpm
Number of pumps 3
Maximum head 192.6 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 3 CRE 10-4
Rated head 150.3 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3
