Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

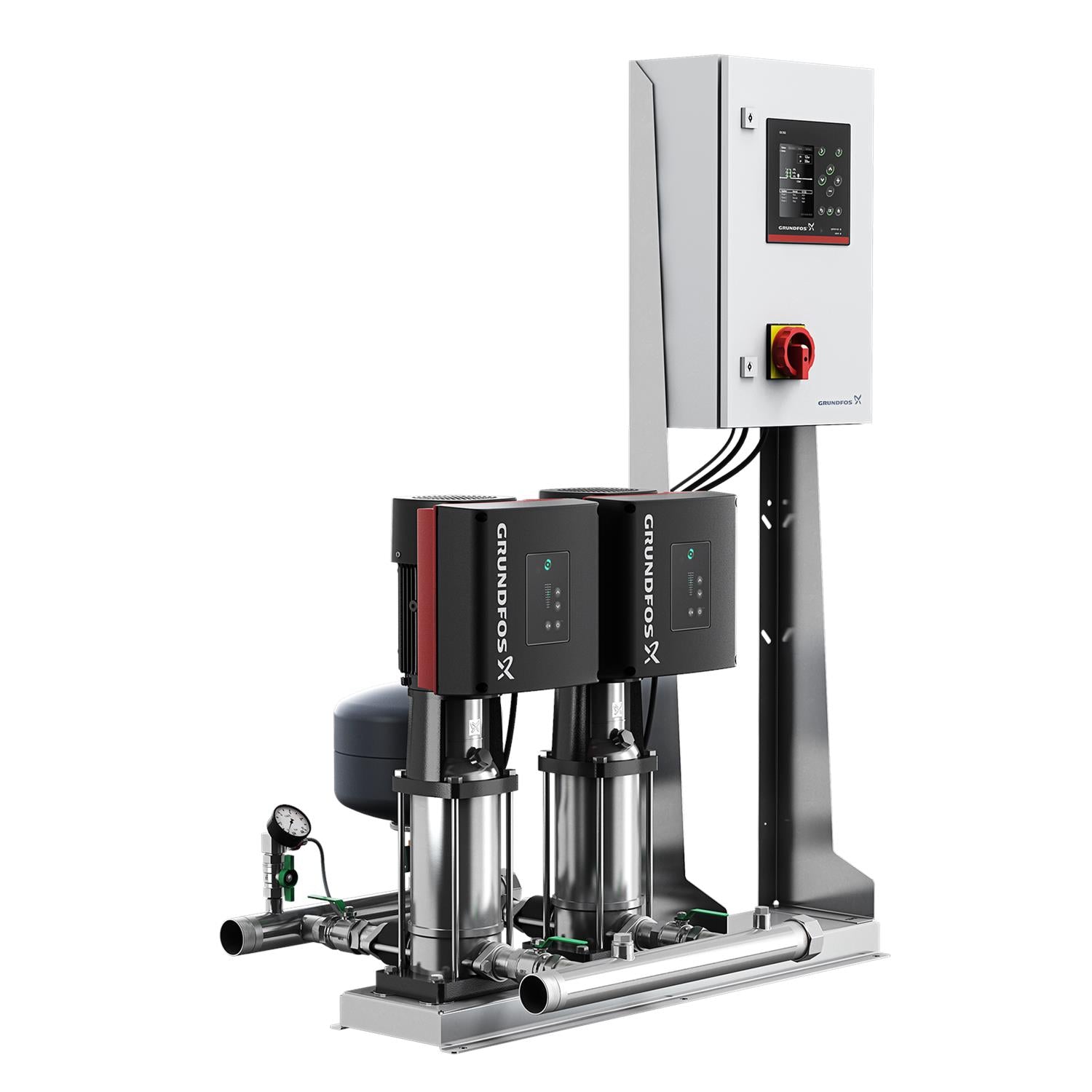

Hydro MPC-E 2 CRIE 10-5 · Vertical Multistage Centrifugal Pump — Stainless Variable Speed
The Grundfos 99173790 (Hydro MPC-E 2 CRIE 10-5) is a Vertical Multistage Centrifugal Pump — Stainless Variable Speed. Stainless steel EN 1.4301 (304) with integrated variable frequency drive. Nominal performance: 107US gpm at 188.9ft. Rated 380-415V, 3.0-Phase, 50, 60 Hz. Applications include HVAC: Heating, Plumbing: Pressure Boosting, District heating and more.
Voltage
380-415V
Phase
3.0-Phase
Max Flow
107US gpm
Max Head
188.9ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — Hydro MPC-E 2 CRIE 10-5
Series: CRIE
Model Code: Hydro MPC-E 2 CRIE 10-5
Flange Rating: PN 16
Technical Specifications
| Model Number | 99173790 |
| Product Series | CRIE |
| Series Description | Vertical Multistage Centrifugal Pump — Stainless Variable Speed |
| Voltage | 380-415V |
| Phase | 3.0-Phase |
| Frequency | 50, 60 Hz |
| Protection Class (IP) | IP54 |
| Nominal Flow | 107US gpm |
| Nominal Head | 188.9ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 140°F |
| Max Ambient Temperature | 104°F |
| Pipe Pressure Rating | PN 16 |
Applications
HVAC: Heating
Plumbing: Pressure Boosting
District heating
District cooling
Wash and clean
Industrial heating
Cooling
Industrial water supply & transfer
Desalination
Drinking water treatment
Municipal water transportation
Municipal wastewater treatment
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 380-415V, 3.0-Phase, 50, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 140°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRIE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CRIE Series
✓ Product Data Sheet — Hydro MPC-E 2 CRIE 10-5
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5712608089497
- Approvals and markings
- 73.8 m
- Battery back-up
- 73.8 m
- Colour
- 73.8 m
- Config. file no
- 98272391
- Connection
- PE
- Control type
- E
- Density
- 62.29 lb/ft³
- Dry running protection, mechanical
- PRESSURE SENSOR 0-6 BAR
- Enclosure class (IEC 34-5)
- IP54
- Flow range
- 73.8 m
- Gross weight
- 487.0 lb
- Head max
- 73.8 m
- Length
- 73.8 m
- Liquid temperature range
- 41 .. 140 °F
- Mains frequency
- 50 / 60 Hz
- Material Pricing Group
- 34
- Max flow
- 31.4 m³/h
- Maximum operating pressure
- 16 bar
- Maximum permissible inlet pressure
- 10 bar
- Motor
- 73.8 m
- Net weight
- 399.0 lb
- Number of leads
- 73.8 m
- Number of phases of main pump
- 3
- Number of pumps
- 2
- Pipework connection
- 73.8 m
- Pressure rating
- PN 16
- Pressure retention valve
- 73.8 m
- Pump
- 3
- Pumped liquid
- Water
- Radio interference supression
- EMC DIRECTIVE(2014/30/EU)
- Range of ambient temperature
- 41 .. 104 °F
- Rated current of system
- 12.4 A
- Rated flow
- 107 US gpm
- Rated head
- 191.9 ft
- Rated voltage
- 3 x 380-415 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Sens.interface
- 73.8 m
- Start. method
- Variable frequency drives
- Type
- E
- Valve type
- 73.8 m
- Volume of pressure tank
- 18 l
Dimensional Drawing
Wiring Diagram
