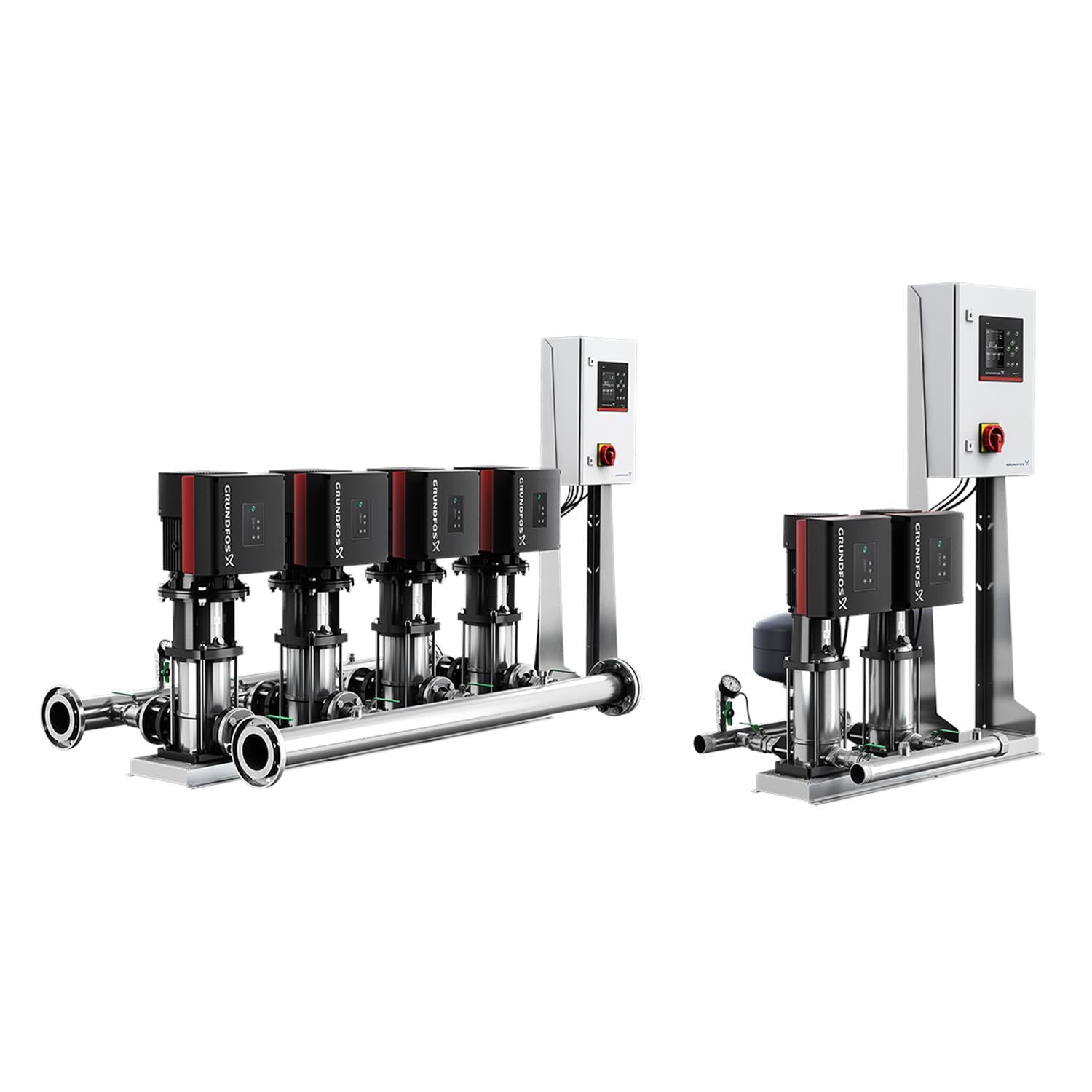

Image shown may not be actual product
Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3
Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3
Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3
Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3
Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3
Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3

Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3

GRUNDFOSSKU: 99688766
Price:
$43,774.72
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99688766 - Hydro MPC-E 2 CRE 45-3 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460-480 V
Pumped liquid Water
Liquid temperature range 41 .. 179.6 °F
Rated current of system 62 A
Net weight 1330.0 lb
Gross weight 1610.0 lb
Rated power - P2 25 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 30.5 A
Config. file no 98272446
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 2 CRE 45-3
Max flow 616 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 476 US gpm
Number of pumps 2
Maximum head 364.8 ft
Number of phases of main pump 3
Return valve Product name:Hydro MPC-E 2 CRE 45-3
Rated head 282.5 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 3

Motor Curves

Dimensional Drawing

DWiring Diagram
