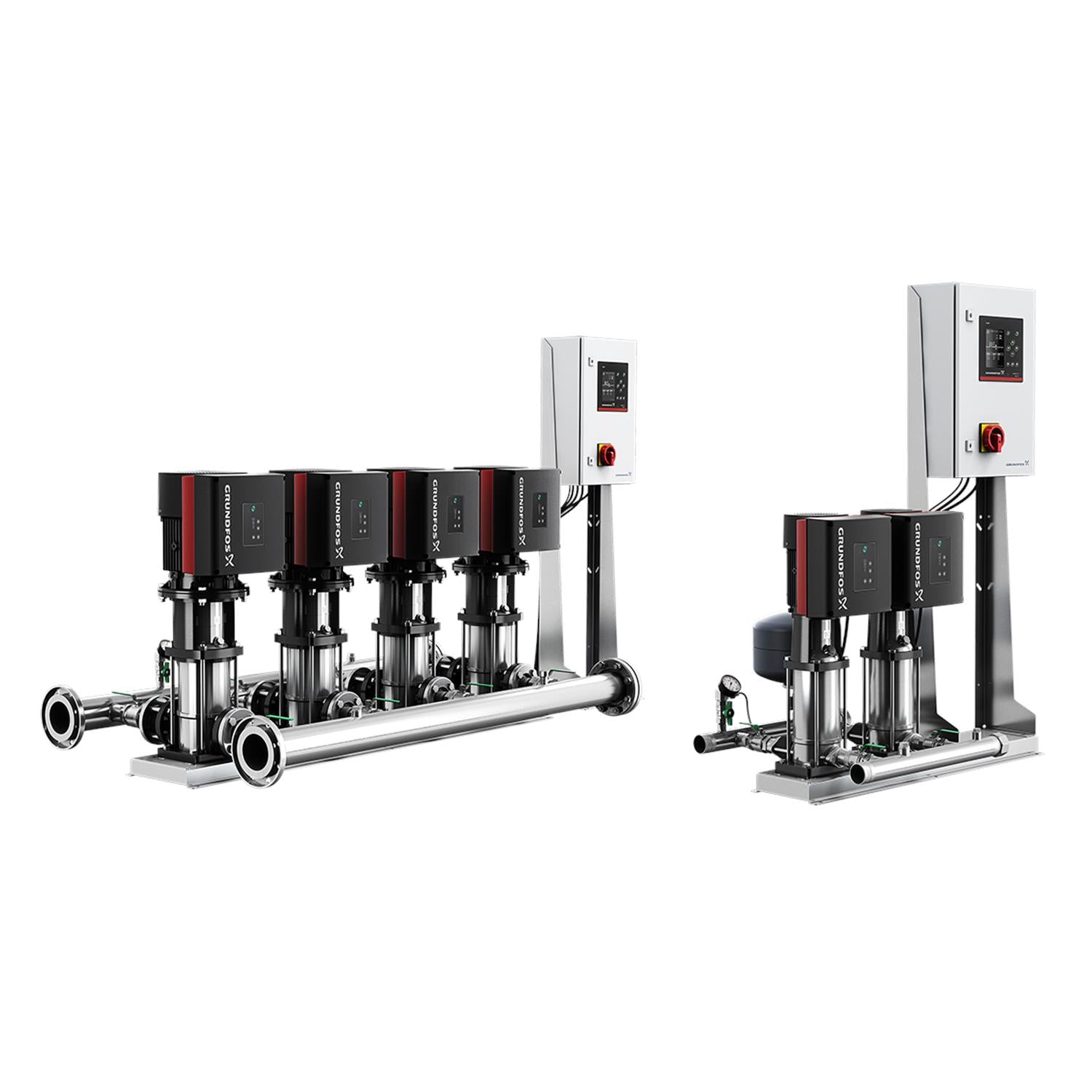

![Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9]()
![Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9]()
![Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9]()
![Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9]()
![Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9]()
![Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9]()
Description
Grundfos 99633586 - Hydro MPC-E 2 CRE 3-9 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Density
62.29 lb/ft³
Maximum operating pressure
232.06 psi
Selected liquid temperature
68 °F
Rated voltage
1 x 208-230 V
Pumped liquid
Water
Liquid temperature range
41 .. 140 °F
Rated current of system
19.2 A
Net weight
287.0 lb
Gross weight
507.0 lb
Rated power - P2
2 HP
Enclosure class (IEC 34-5)
IP54
Pressure rating for connection
PN 16
Rated current
8.8 A
Config. file no
98272360
Sales region
Namreg
Range of ambient temperature
41 .. 104 °F
Pressure sensor
Product name:Hydro MPC-E 2 CRE 3-9
Max flow
47.6 US gpm
Radio interference supression
EMC DIRECTIVE(2014/30/EU)
Approvals
CULUS,PROP65
Rated flow
30.8 US gpm
Number of pumps
2
Maximum head
280.9 ft
Number of phases of main pump
1
Return valve
Product name:Hydro MPC-E 2 CRE 3-9
Rated head
206.7 ft
Type
E
Control type
E
Connection
PE
Dry running protection, mechanical
PRESSURE SENSOR 0-10 BAR
Pump
1
