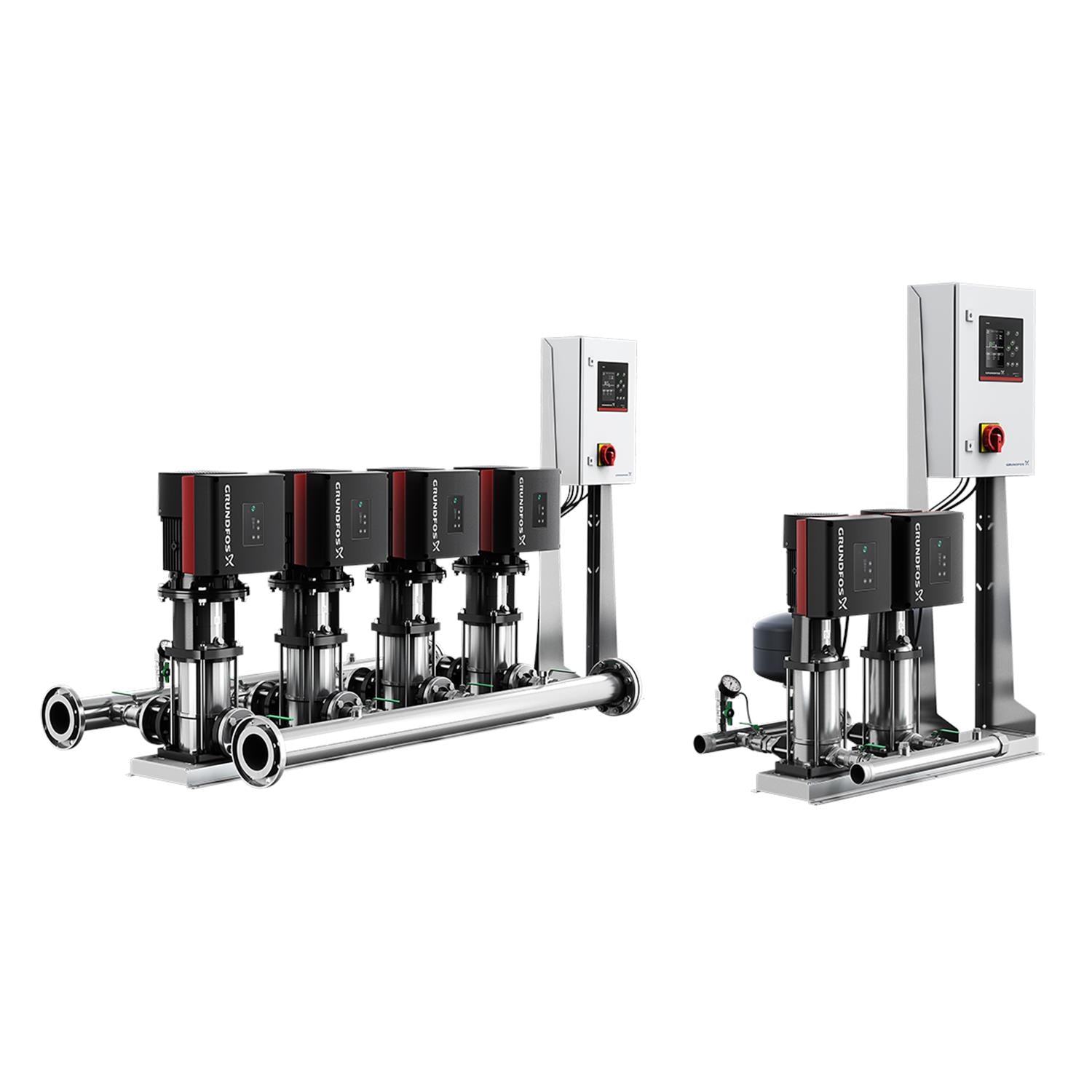

Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11
Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11
Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11
Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11
Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11
Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11

Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11

GRUNDFOSSKU: 99633587
Price:
$17,923.84
Build to order – stocked components, typically available in 21 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99633587 - Hydro MPC-E 2 CRE 3-11 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 1 x 208-230 V
Pumped liquid Water
Liquid temperature range 41 .. 140 °F
Rated current of system 19.2 A
Net weight 289.0 lb
Gross weight 509.0 lb
Rated power - P2 2 HP
Enclosure class (IEC 34-5) IP54
Pressure rating for connection PN 16
Rated current 8.8 A
Config. file no 98272362
Sales region Namreg
Range of ambient temperature 41 .. 104 °F
Pressure sensor Product name:Hydro MPC-E 2 CRE 3-11
Max flow 47.6 US gpm
Radio interference supression EMC DIRECTIVE(2014/30/EU)
Approvals CULUS,PROP65
Rated flow 30.8 US gpm
Number of pumps 2
Maximum head 342.9 ft
Number of phases of main pump 1
Return valve Product name:Hydro MPC-E 2 CRE 3-11
Rated head 251.7 ft
Type E
Control type E
Connection PE
Dry running protection, mechanical PRESSURE SENSOR 0-10 BAR
Pump 1

Motor Curves

Dimensional Drawing

DWiring Diagram
