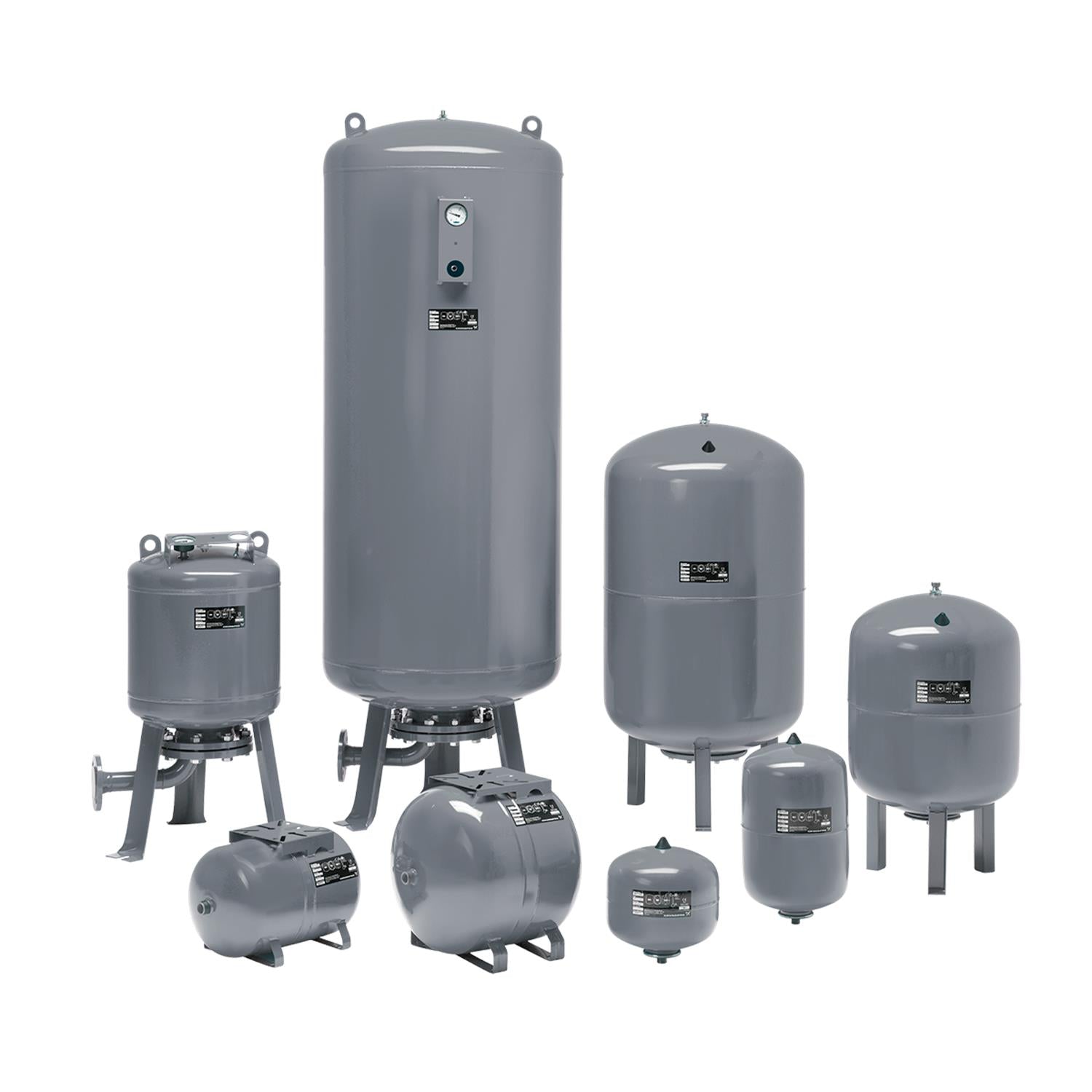

Grundfos 96573280 - GT-U-500 PN10 G11/4 V (Coated Flange)

GRUNDFOSSKU: 96573280

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

GT-U-500 PN10 G11/4 V (coated flange) Grundfos GT-U-500 PN10 G11/4 V (coated flange) is a Bladder pressure tank, with a capacity of l and installation. The tanks are approved for drinking water. The GT-U-500 PN10 G11/4 V (coated flange) is designed for a maximum operation pressure of 145. 04 psi and a maximum liquid temperature of 158 °F. The tank is a steel pressure tank with a replaceable, non-toxic butyl rubber bladder enclosed by compressed nitrogen. The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. The tank has a FlowThru connection, which constantly flushes the tank while the pump is running. This ensures that the water in the tank remains fresh and eliminates the risk of stagnant water during normal system operation. The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. The tank has a FlowThru connection, which constantly flushes the tank while the pump is running. This ensures that the water in the tank remains fresh and eliminates the risk of stagnant water during normal system operation. The tanks have a non-replaceable diaphragm that is pre-charged with nitrogen (27. 56 psi). The tanks have a non-toxic butyl rubber diaphragm, dividing the tank chamber into two compartments. The upper compartment contains compressed nitrogen. The lower compartment has a liner of polypropylene (PP) and is filled with water from the pump. A pressure tank ensures controlled pressure in the water supply and thereby limits the switching frequency of the pump in case of low water consumption or leakage loss. The result is increased comfort in your installation by limiting the start/stop frequency of your pump, and it increases system comfort by compensating for pressure drops when a tap is opened, while reducing problems with water hammer in the pipework.

EAN 5700830553176
Approvals WEEE
Approvals for drinking water WRAS
Connection 1 1/4 inch
Environmental approvals WEEE
Gross weight 254.0 lb
Liquid temperature range 32 .. 158 °F
Material Pricing Group 3M
Maximum operating pressure 10 bar
Membrane type BLADDER
Net weight 234.0 lb
Pre-pressure 1.9 bar
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of connection 1 1/4 inch
Tank volume 500 l
Type Standard
Type of connection G
Danish VVS No. 398258050

Motor Curves

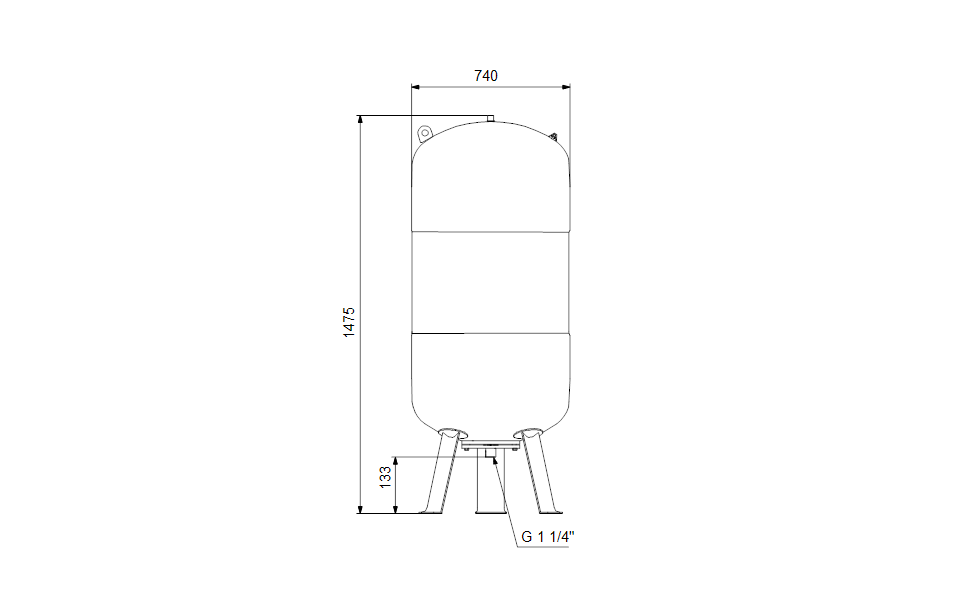

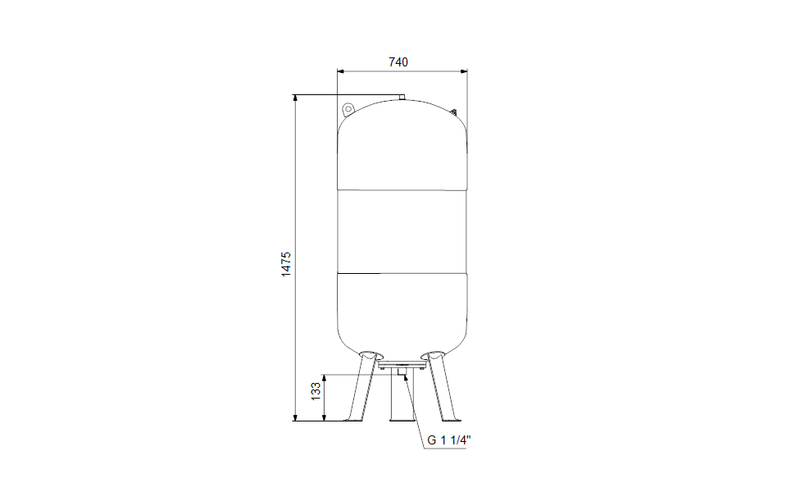

Dimensional Drawing
