Grundfos 99818535 - Grundfos iSOLUTIONS Monitor

GRUNDFOSSKU: 99818535

Price:
Sale price$1,841.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

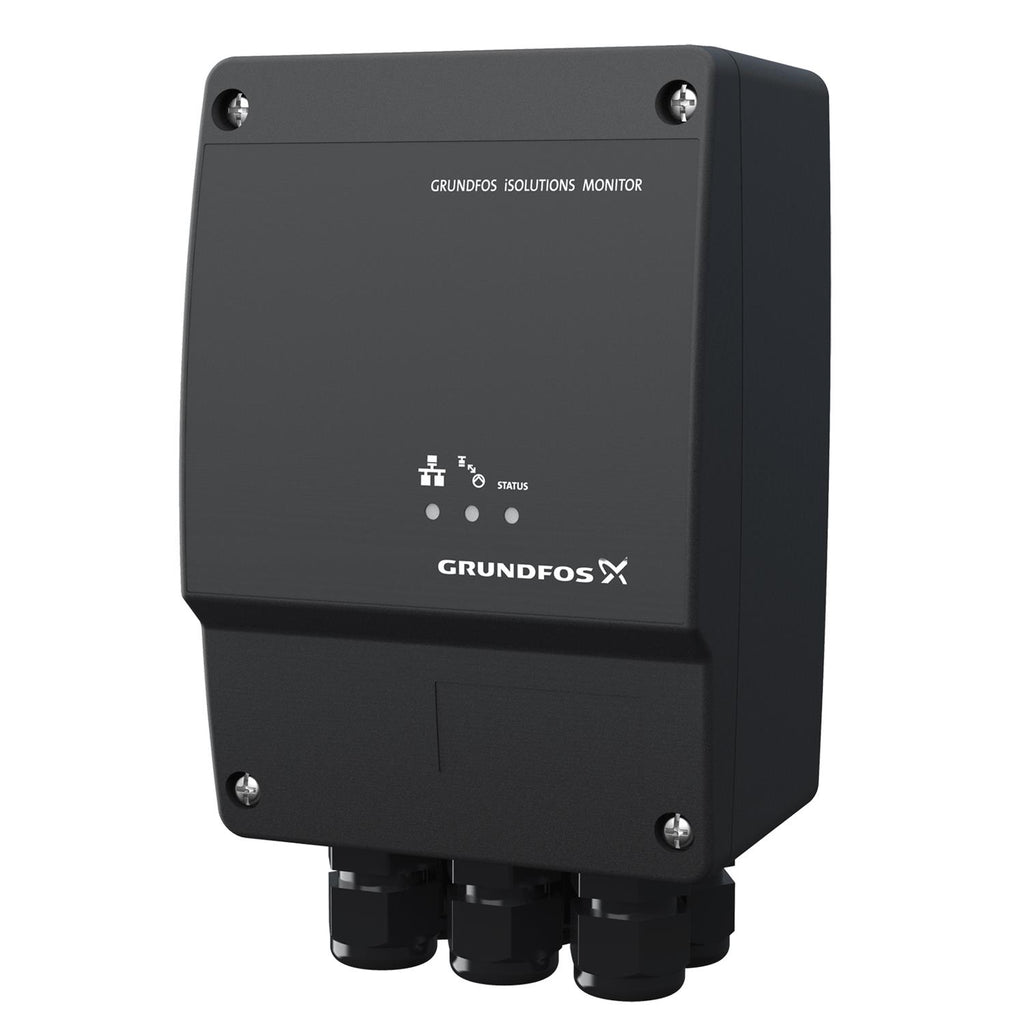

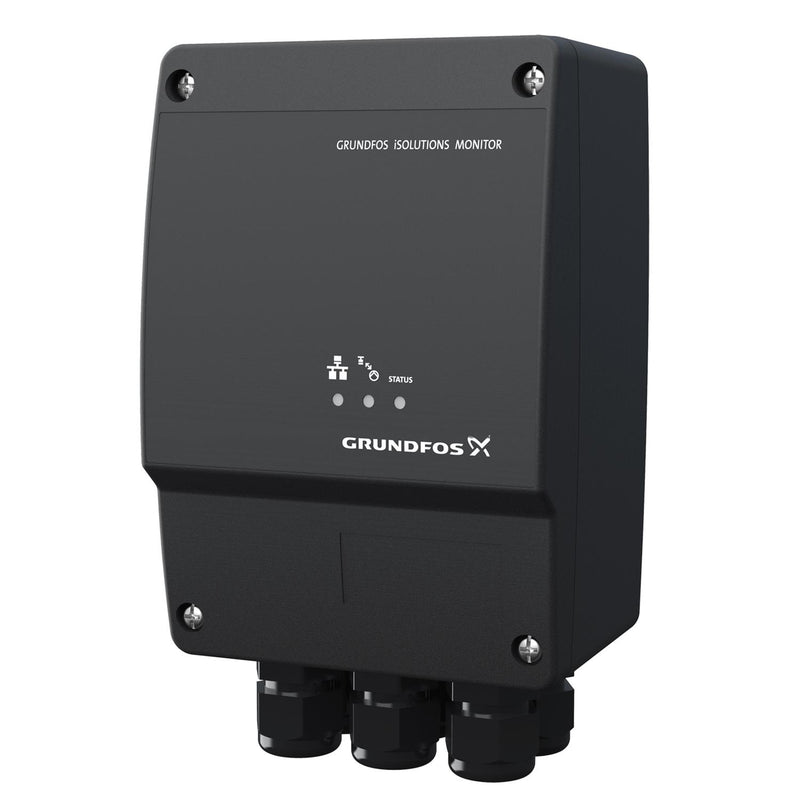

Grundfos iSOLUTIONS MONITOR Grundfos iSOLUTIONS MONITOR is a condition monitoring sensor for Grundfos CR pumps that monitors your CR pumps for possible failures or deviation from normal (baseline) operation. Integration of condition monitoring into daily maintenance processes can help to reduce unscheduled downtime, improve planning of maintenance and improve the overall health level of your equipment. Grundfos iSOLUTIONS MONITOR is a support tool for pump operators to make better decisions and as such should not be used in isolation. The Grundfos iSOLUTIONS MONITOR solutions contains the following items: Hardware*: box + sensorSupports CiM 280 and CiM 500. The sensor can be integrated with a local PLC system, or can optionally be connected to Grundfos iSOLUTIONS CLOUD including service and support.

EAN 5713834720666
Approvals CE
Connection 1/2 inch
Enclosure class (IEC 34-5) IP54
Gross weight 5.45 lb
Length of sensor cable 3 m
Liquid temperature range -4 .. 194 °F
Material Pricing Group 95
Maximum measuring temperature 90 °C
Minimum measuring temperature -20 °C
Net weight 4.9 lb
O-ring Rubber
Range of ambient temperature -4 .. 113 °F
Rated voltage ac 240 V
Rated voltage dc 240.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of connection 1/2 inch
Danish VVS No. 386009800

Motor Curves

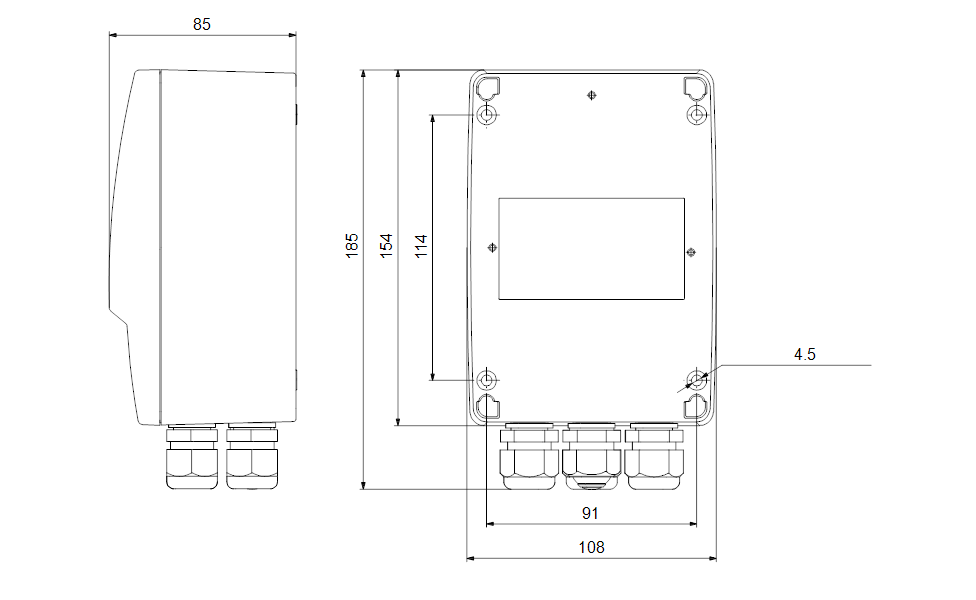

Dimensional Drawing
