General Purpose Motor, ODP, 75 HP, 3600 RPM, 230/460V, 364TS Frame, Rigid Base 460V 60HZ Three Phase 75 HP Cast Iron

WorldWide ElectricSKU: ODP75-36-364TS

Price:
Sale price$3,636.21
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

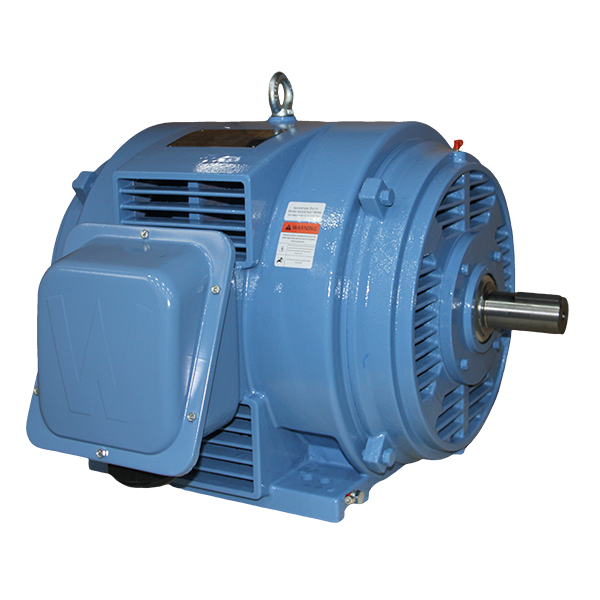

WorldWide Electric General Purpose Motor - 75 HP, ODP

Introducing the WorldWide Electric General Purpose Motor, a robust and efficient solution for your industrial needs. This 75 HP motor operates at 3600 RPM and is designed for three-phase applications with a voltage rating of 230/460V. Featuring a 364TS frame and constructed from durable cast iron, this motor ensures longevity and reliability in demanding environments.

With an Open Drip Proof (ODP) design, this motor is ideal for applications where moisture and dust are minimal. It boasts a premium efficiency rating, making it a cost-effective choice for energy-conscious operations. The rigid base allows for easy installation and stability during operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SKU: ODP75-36-364TS. If you encounter any difficulties, our team is here to help you find the perfect solution.

Supplier Part Number 8501.52.8040
Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 724
Degree of Protection IP23
Enclosure Type ODP
FL Efficiency (%) 93.6
Frame Size 364TS
Frequency 60/50 HZ*
Full Load Amps 83.3
Horsepower 75
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Voltage 230/460
