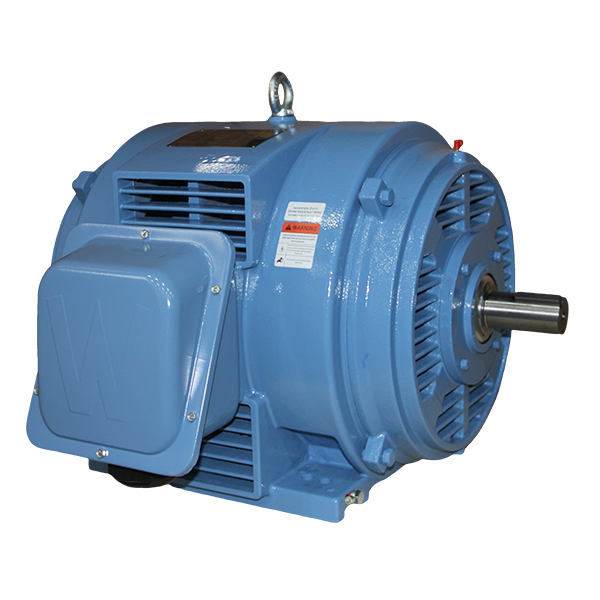

General Purpose Motor, ODP, 200 HP, 3600 RPM, 230/460V, 444TS Frame, Rigid Base 460V 60HZ Three Phase 200 HP Cast Iron

Worldwide ElectricSKU: ODP200-36-444TS

Price:
Sale price$9,052.92
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric ODP200-36-444TS (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number ODP200-36-444TS
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 1654
Degree of Protection IP23
Duty Cycle S1 / Continuous
Enclosure Type ODP
FL Efficiency (%) 95.0
Frame Size 444TS
Frequency 60/50 HZ*
Horsepower 200
Insulation Class Class F
Mounting Type Rigid Base
NEMA Code Letter G
NEMA Design B
Phase Three-Phase
Poles 2
RPM 3600
Service Factor 1.15
Voltage 230/460

Motor Curves
