General Purpose Motor, ODP, 200 HP, 1800 RPM, 230/460V, 445T Frame, Rigid Base 460V 60HZ Three Phase 200 HP Cast Iron

WorldWide ElectricSKU: ODP200-18-445T

Price:
Sale price$8,915.81
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

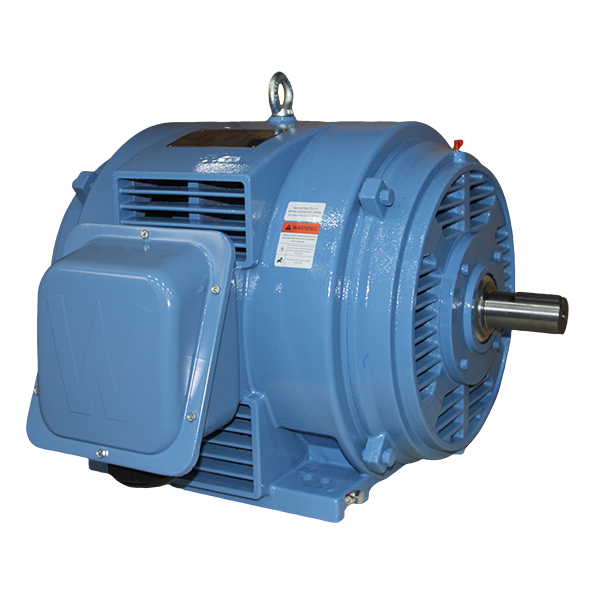

WorldWide Electric General Purpose Motor - ODP 200 HP

Introducing the WorldWide Electric General Purpose Motor, a robust and efficient solution for your industrial needs. This 200 HP motor operates at 1800 RPM and is designed for three-phase applications with a voltage rating of 230/460V. Built with a 445T frame and constructed from durable cast iron, this motor ensures longevity and reliability in demanding environments.

Key features include:

  • Open Drip Proof (ODP) design for enhanced cooling and protection
  • Premium efficiency for reduced energy consumption
  • Rigid base for stable mounting and operation
  • 1.15 Service Factor for added performance

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, SKU: ODP200-18-445T, to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 1733
Degree of Protection IP23
Duty Cycle S1 / Continuous
Enclosure Type ODP
FL Efficiency (%) 95.8
Frame Size 445T
Frequency 60/50 HZ*
Horsepower 200
Insulation Class Class F
Mounting Type Rigid Base
NEMA Code Letter G
NEMA Design B
Phase Three-Phase
Poles 4
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
