General Purpose Motor, ODP, 20 HP, 1800 RPM, 230/460V, 256TC Frame, C-Face With Feet 460V 60HZ Three Phase 20 HP

This item ships free!
WorldWide ElectricSKU: ODP20-18-256TC

Price:
Sale price$1,382.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

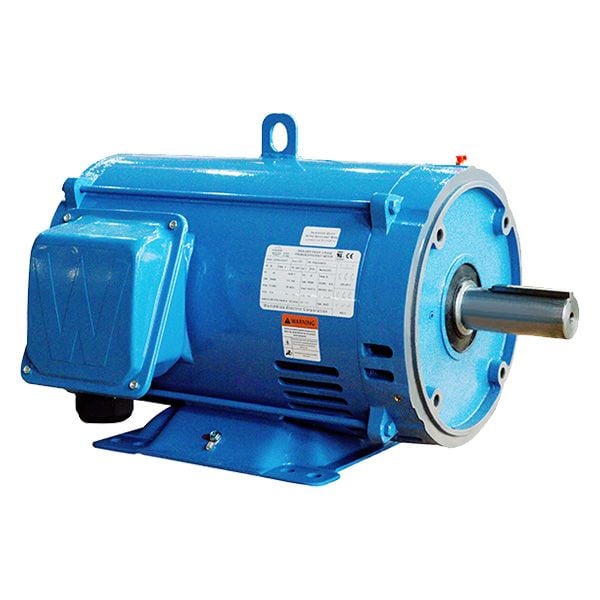

WorldWide Electric General Purpose Motor - ODP 20 HP

Upgrade your operations with the WorldWide Electric General Purpose Motor, designed for reliability and efficiency. This 20 HP motor operates at 1800 RPM and is suitable for 230/460V three-phase applications. With a 256TC frame and C-face rigid mounting, this motor is built to last, featuring a robust rolled steel construction and premium efficiency rating.

Key Features:

  • Type: General Purpose Motor
  • Power: 20 HP
  • Speed: 1800 RPM
  • Voltage: 230/460V
  • Phase: 3 Phase
  • Frame Size: 256TC
  • Design: Open Drip Proof (ODP)
  • Service Factor: 1.15 SF

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, our team is here to help you find the perfect solution.

Degree of Protection IP23
Enclosure Type ODP
Frame Size 256TC
Frequency 60/50 HZ*
Horsepower 20
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460
