General Purpose Motor, ODP, 150 HP, 1800 RPM, 230/460V, 444TS Frame, Rigid Base 460V 60HZ Three Phase 150 HP Cast Iron

WorldWide ElectricSKU: ODP150-18-444TS

Price:
Sale price$7,311.23
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

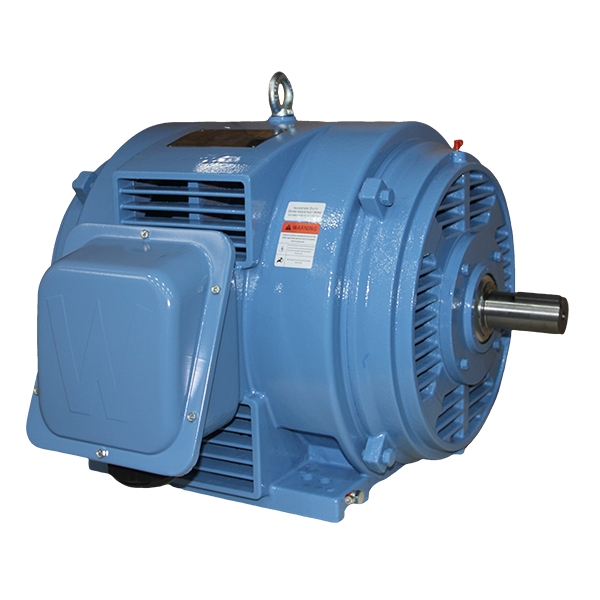

WorldWide Electric General Purpose Motor - ODP 150 HP

Introducing the WorldWide Electric General Purpose Motor, a robust and efficient solution for your industrial needs. This 150 HP motor operates at 1800 RPM and is designed for three-phase applications with a voltage rating of 230/460V. Featuring a 444TS frame and constructed from durable cast iron, this motor ensures longevity and reliability in demanding environments.

With an Open Drip Proof (ODP) design, this motor is ideal for applications where moisture and dust are minimal. It boasts a premium efficiency rating, making it a cost-effective choice for energy-conscious operations. The rigid base allows for easy installation and stability during operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your operations with the reliable and efficient WorldWide Electric General Purpose Motor today!

Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 1504
Degree of Protection IP23
Duty Cycle S1 / Continuous
Enclosure Type ODP
FL Efficiency (%) 95.8
Frame Size 444TS
Frequency 60/50 HZ*
Horsepower 150
Insulation Class Class F
Mounting Type Rigid Base
NEMA Code Letter G
NEMA Design B
Phase Three-Phase
Poles 4
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
