General Purpose Motor, ODP, 150 HP, 1800 RPM, 230/460V, 444T Frame, Rigid Base 460V 60HZ Three Phase 150 HP Cast Iron

WorldWide ElectricSKU: ODP150-18-444T

Price:
Sale price$7,311.23
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

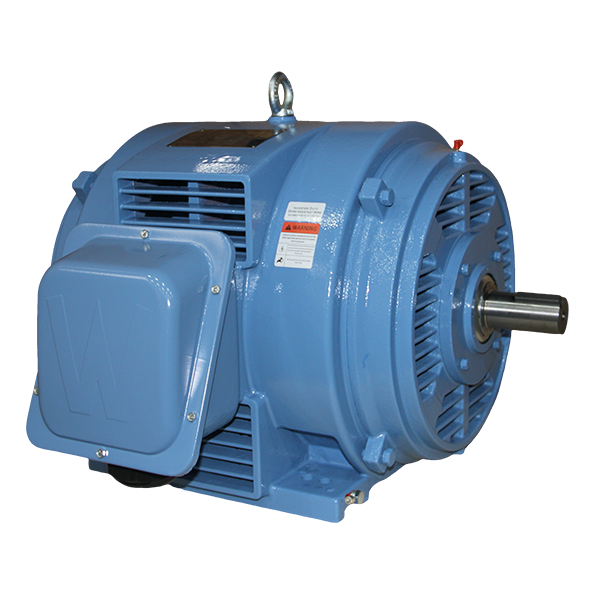

WorldWide Electric General Purpose Motor - 150 HP

Introducing the WorldWide Electric General Purpose Motor, a robust and reliable solution for your industrial needs. This Open Drip Proof (ODP) motor boasts a powerful 150 HP output, operating at 1800 RPM with a voltage rating of 230/460V. Designed for three-phase applications, this motor is ideal for a variety of general-purpose uses.

Key features include:

  • Frame Size: 444T
  • Efficiency: Premium efficiency for reduced energy costs
  • Construction: Durable cast iron for longevity and reliability
  • Mounting: Rigid base for stable installation

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SKU: ODP150-18-444T. If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 1504
Degree of Protection IP23
Duty Cycle S1 / Continuous
Enclosure Type ODP
FL Efficiency (%) 95.8
Frame Size 444T
Frequency 60/50 HZ*
Horsepower 150
Insulation Class Class F
Mounting Type Rigid Base
NEMA Code Letter G
NEMA Design B
Phase Three-Phase
Poles 4
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
