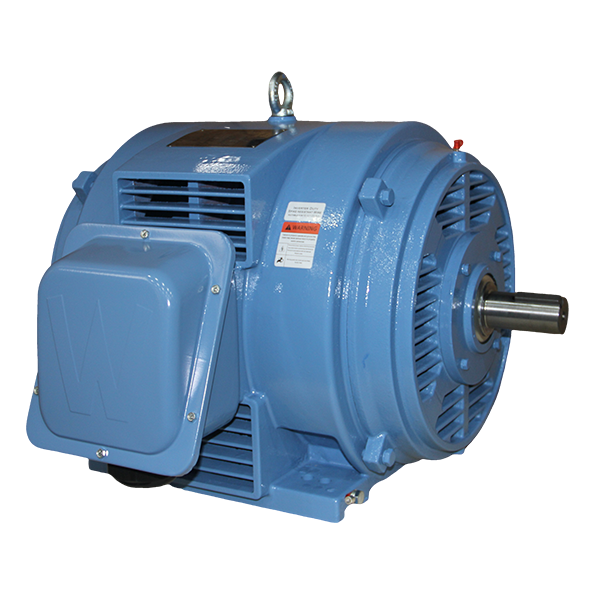

General Purpose Motor, ODP, 125 HP, 1800 RPM, 230/460V, 405TS Frame, Rigid Base 460V 60HZ Three Phase 125 HP Cast Iron

WorldWide ElectricSKU: ODP125-18-405TS

Price:
Sale price$6,287.77
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric General Purpose Motor - 125 HP, ODP

Introducing the WorldWide Electric General Purpose Motor, a robust and efficient solution for your industrial needs. This 125 HP motor operates at 1800 RPM and is designed for three-phase applications with a voltage rating of 230/460V. Featuring a 405TS frame and constructed from durable cast iron, this motor ensures longevity and reliability in demanding environments.

With an Open Drip Proof (ODP) design, this motor is ideal for applications where moisture and dust are minimal. It boasts a premium efficiency rating, making it a cost-effective choice for energy-conscious operations. The rigid base allows for easy installation and stability during operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your equipment with the WorldWide Electric General Purpose Motor and experience the difference in performance and efficiency.

Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 1085
Degree of Protection IP23
Duty Cycle S1 / Continuous
Enclosure Type ODP
FL Efficiency (%) 95.4
Frame Size 405TS
Frequency 60/50 HZ*
Full Load Speed 1788
Horsepower 125
Insulation Class Class F
Mounting Type Rigid Base
NEMA Code Letter E
NEMA Design B
Phase Three-Phase
Poles 4
RPM 1800
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
