General Purpose Motor, ODP, 0.5 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 5 HP

WorldWide ElectricSKU: ODP12-36-56CB

Price:
Sale price$212.75
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

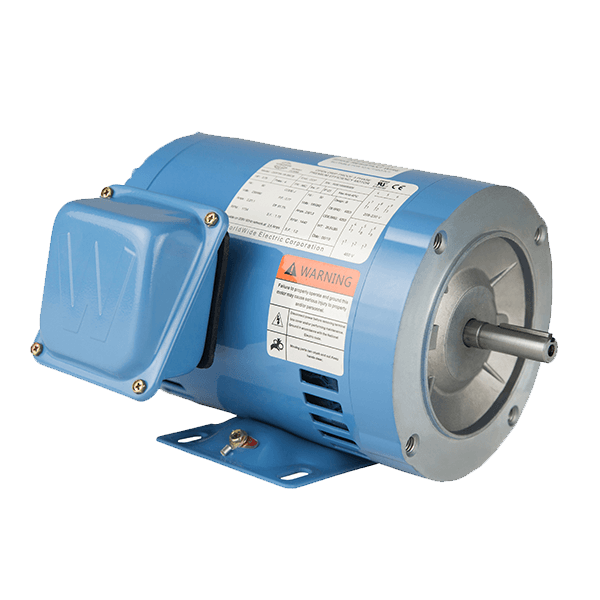

WorldWide Electric General Purpose Motor - ODP, 0.5 HP

Upgrade your machinery with the WorldWide Electric General Purpose Motor, designed for reliable performance in various applications. This 0.5 HP motor operates at 3600 RPM and is suitable for three-phase systems with a voltage rating of 230/460V. Featuring a 56C frame and a C-face removable base, this motor is built for easy installation and maintenance.

Constructed from rolled steel, this Open Drip Proof (ODP) motor ensures premium efficiency and durability, making it an ideal choice for general-purpose applications. With a service factor of 1.15, it provides reliable operation under varying load conditions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Specifications:

  • Type: General Purpose Motor
  • Power: 0.5 HP
  • Speed: 3600 RPM
  • Voltage: 230/460V
  • Phase: Three Phase
  • Frame: 56C
  • Mounting: C-Face with Removable Base
  • Efficiency: Premium
  • Construction: Rolled Steel
  • Service Factor: 1.15

Ensure optimal performance in your operations with the WorldWide Electric General Purpose Motor. Order yours today!

Supplier Part Number 8501.51.4040
Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 22
Degree of Protection IP23
Enclosure Type ODP
FL Efficiency (%) 73.4
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 0.73
Horsepower 0.5
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Voltage 230/460

Motor Curves
