General Purpose Motor, 1 HP, 1800 RPM, 115/230V, 56C Frame, C-Face With Removable Base 230V 60HZ Single Phase 1 HP 56°C

WorldWide ElectricSKU: NT1-18-56CB

Price:
Sale price$300.51
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

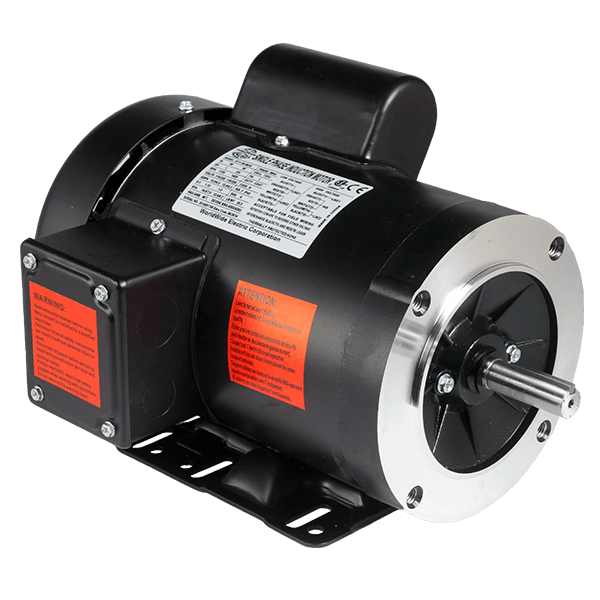

WorldWide Electric General Purpose Motor - 1 HP, 1800 RPM

The WorldWide Electric General Purpose Motor is designed for reliable performance in a variety of applications. With a power output of 1 HP and a speed of 1800 RPM, this motor operates efficiently at 115/230V and is suitable for single-phase systems. The 56C frame and C-face removable base make installation straightforward, while the TEFC (Totally Enclosed Fan Cooled) design ensures durability and protection against environmental factors.

This motor features a standard efficiency rating and is constructed from rolled steel, making it a robust choice for general-purpose applications. Whether you need a replacement motor or are looking to upgrade your equipment, this motor is an excellent option.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you’re having trouble finding the right item, our team is here to help!

Specifications:

  • Power: 1 HP
  • Speed: 1800 RPM
  • Voltage: 115/230V
  • Phase: Single-phase
  • Frame: 56C
  • Type: TEFC
  • Mounting: C-face removable base
  • Efficiency: Standard

Upgrade your motor with the WorldWide Electric General Purpose Motor today!

Category Electric Motors
Subcategory General Purpose Motors
Approximate Weight (lbs) 36
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 70.0
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 6.5
Horsepower 1
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Single-Phase
RPM 1800
Service Factor 1.15
Voltage 115/230

Motor Curves
