Image shown may not be actual product

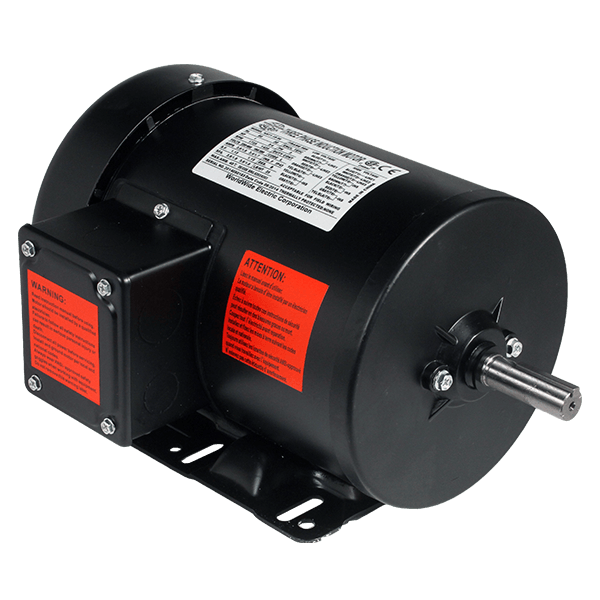

General Purpose Motor, 0.5 HP, 1800 RPM, 230/460V, 56 Frame, Rigid Base
Roll over image to zoom in Click on image to zoom
General Purpose Motor, 0.5 HP, 1800 RPM, 230/460V, 56 Frame, Rigid Base
WorldWide Electric Motors

General Purpose Motor, 0.5 HP, 1800 RPM, 230/460V, 56 Frame, Rigid Base 460V 60HZ Three Phase 5 HP

Worldwide ElectricSKU: NAT12-18-56
Price:
$221.53

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component

The WorldWide Electric NAT12-18-56 for WorldWide Electric pump systems.

Part Specifications
Part Number NAT12-18-56
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Supplier Part Number
8501.51.4040
Category
Electric Motors
Subcategory
General Purpose Motors
Approximate Weight (lbs)
19
Degree of Protection
IP43
Enclosure Type
TEFC
FL Efficiency (%)
70.0
Frame Size
56
Frequency
60/50 HZ*
Full Load Amps
0.95
Horsepower
0.5
Insulation Class
Class F
Mounting Type
Rigid Base
Phase
Three-Phase
RPM
1800
Service Factor
1.15
Voltage
230/460
