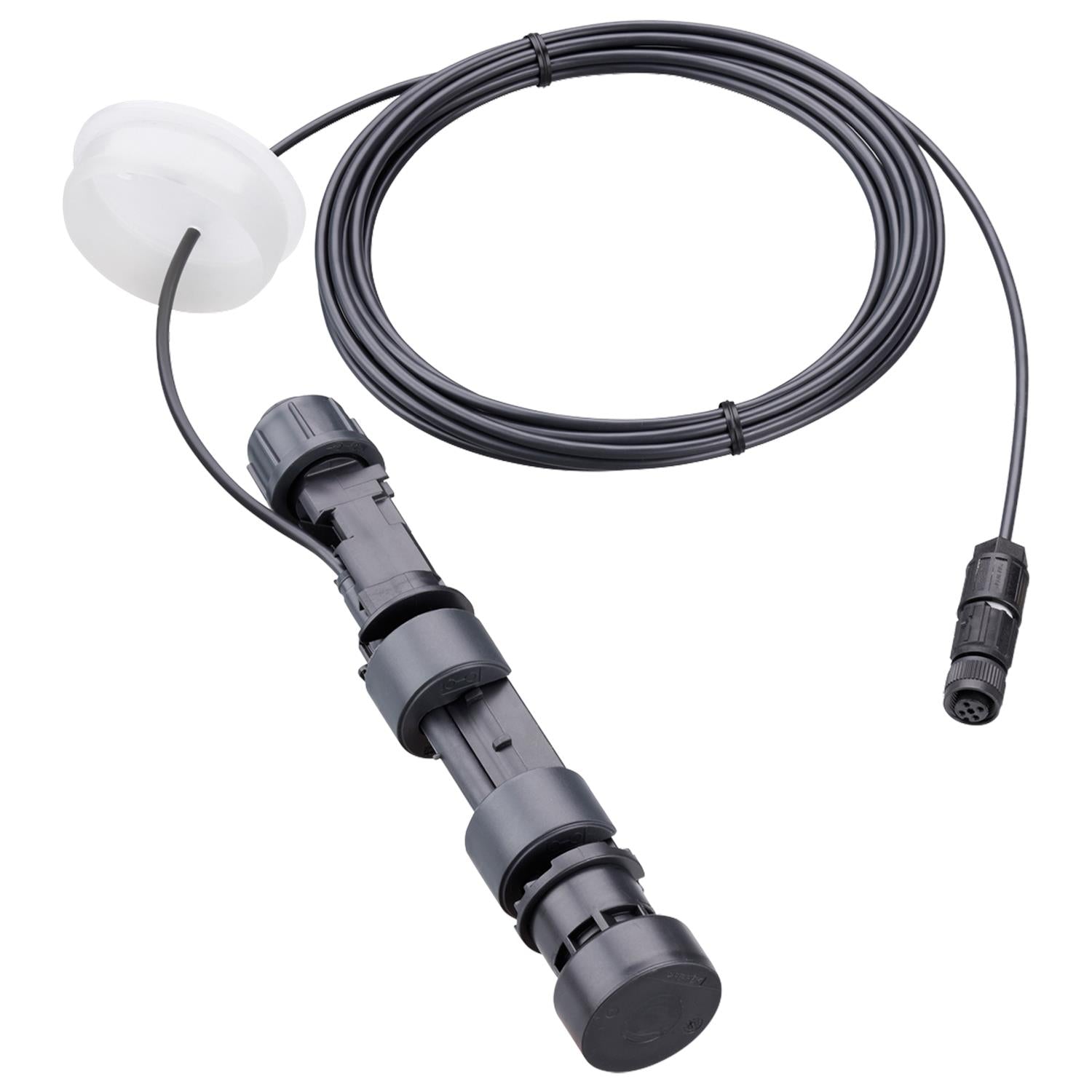

Grundfos 98070967 - Foot Valve 2L-G5/8 PE/T/C U2

GRUNDFOSSKU: 98070967

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Foot valve 2L-G5/8 PE/T/C U2 Foot valves are installed at the lower end of the suctionhose and include weight, strainer (mesh size 0, 8mm) and non-return valveAdditionally they include Reed-switch unit with two floaters for low level and empty indication (switch mode adjustable NO or NC)
Cable with PE jacket
M 12 plug to connect DDA, DDC, DDE or DDI dosing pump
PE cap, d. 58 mm, for assembly in Grundfoscylindrical tanks, or for use with tank adaptors.

EAN 5710628437953
Applications Accessories
Cable jacket Plastic
Connection 45081
Gasket Composite
Gross weight 0.36 kg
Length of cable 5 m
Level indication Low level and empty tank
Material Plastic
Material Pricing Group 67
Maximum flow 60 l/h
Net weight 0.36 kg
Product family Foot valves
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size M12
Size of connection 45081
Type Round
Type of connection Connection pack
Valve ball Ceramic

Motor Curves

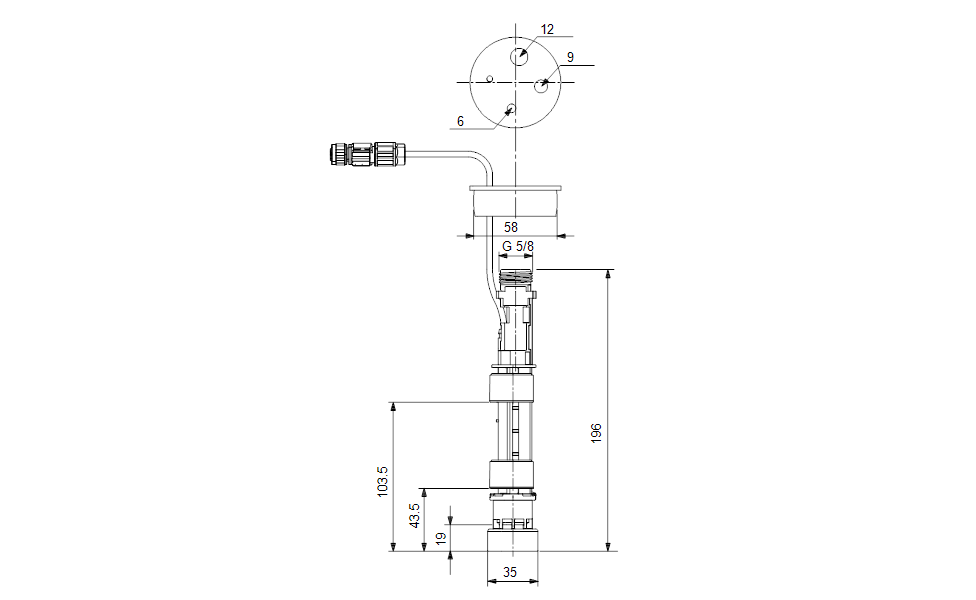

Dimensional Drawing
