Farm Duty Motor, 7.5 HP, 1800 RPM, 230V, 215TZ Frame, Rigid Base 230V 60HZ Single Phase 7.5 HP 1.125 In 3.38 In

WorldWide ElectricSKU: FD7.5-18-215TZ

Price:
Sale price$1,003.31
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

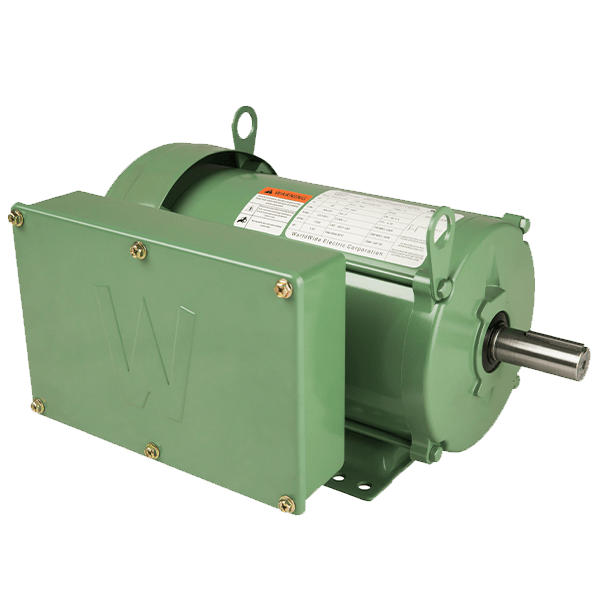

WorldWide Electric Farm Duty Motor - 7.5 HP

Introducing the WorldWide Electric Farm Duty Motor, a robust and reliable solution for your agricultural needs. This 7.5 HP motor operates at 1800 RPM and is designed for single-phase applications at 230V and 60 Hz. With a 215TZ frame and a TEFC (Totally Enclosed Fan Cooled) design, this motor ensures durability and efficiency in demanding farm environments.

Key features include:

  • Power: 7.5 HP
  • Speed: 1800 RPM
  • Voltage: 208-230V
  • Frame Size: 215TZ
  • Rigid mounting for stability
  • Shaft Diameter: 1.125 inches
  • Shaft Length: 3.38 inches
  • Standard efficiency for cost-effective operation

This motor is perfect for a variety of farm applications, providing the power and reliability you need to keep your operations running smoothly. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this motor (SKU: FD7.5-18-215TZ). If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

Supplier Part Number 8501.40.6040
Category Electric Motors
Subcategory Farm Duty Motors
Approximate Weight (lbs) 134
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 86.6
Frame Size 215TZ
Frequency 60 HZ
Full Load Amps 28.7
Horsepower 7.5
Insulation Class Class F
Mounting Type Rigid Base
Phase Single-Phase
RPM 1800
Service Factor 1.15
Voltage 230
