Explosion Proof Motor, 100 HP, 1200 RPM, 230/460V, 444/5T Frame, Rigid Base, Ball Bearing On Drive-End 460V 60HZ Three Phase 100 HP Cast Iron

WorldWide ElectricSKU: IXPEWWE100-12-444/5TBB

Price:
Sale price$14,600.76
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

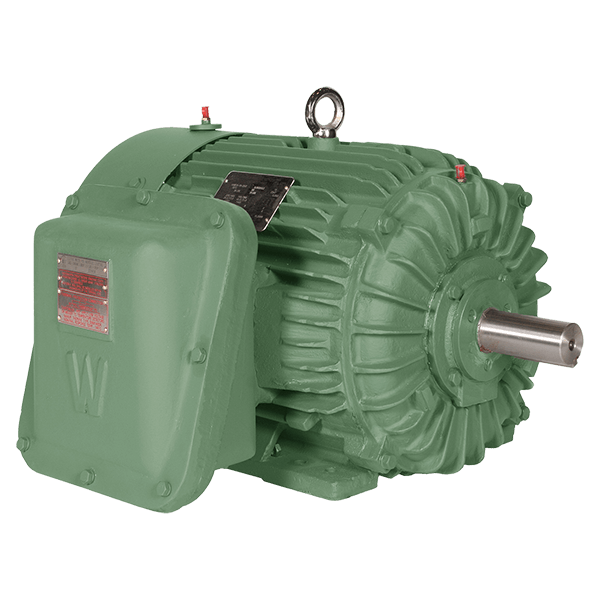

WorldWide Electric Explosion Proof Motor - 100 HP

Introducing the WorldWide Electric Explosion Proof Motor, a robust and reliable solution designed for demanding industrial applications. With a power rating of 100 HP and a speed of 1200 RPM, this motor operates efficiently at 230/460V and is engineered to meet the highest safety standards in hazardous environments.

This TEFC (Totally Enclosed Fan Cooled) motor features a 444/5T frame and is constructed from durable cast iron, ensuring longevity and resilience. The premium efficiency design not only enhances performance but also reduces energy consumption, making it an economical choice for your operations.

Key features include:

  • Explosion proof design for safe operation in hazardous locations
  • Rigid base for stable mounting
  • Ball bearing on drive-end for smooth operation
  • 1.15 service factor for added reliability

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is IXPEWWE100-12-444/5TBB. If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Subcategory Explosion Proof Motors
Approximate Weight (lbs) 1642
Degree of Protection IP55
Enclosure Type TEXP
FL Efficiency (%) 95.0
Frame Size 444/5T
Frequency 60/50 HZ*
Full Load Amps 117
Horsepower 100
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.15
Voltage 230/460

Motor Curves
