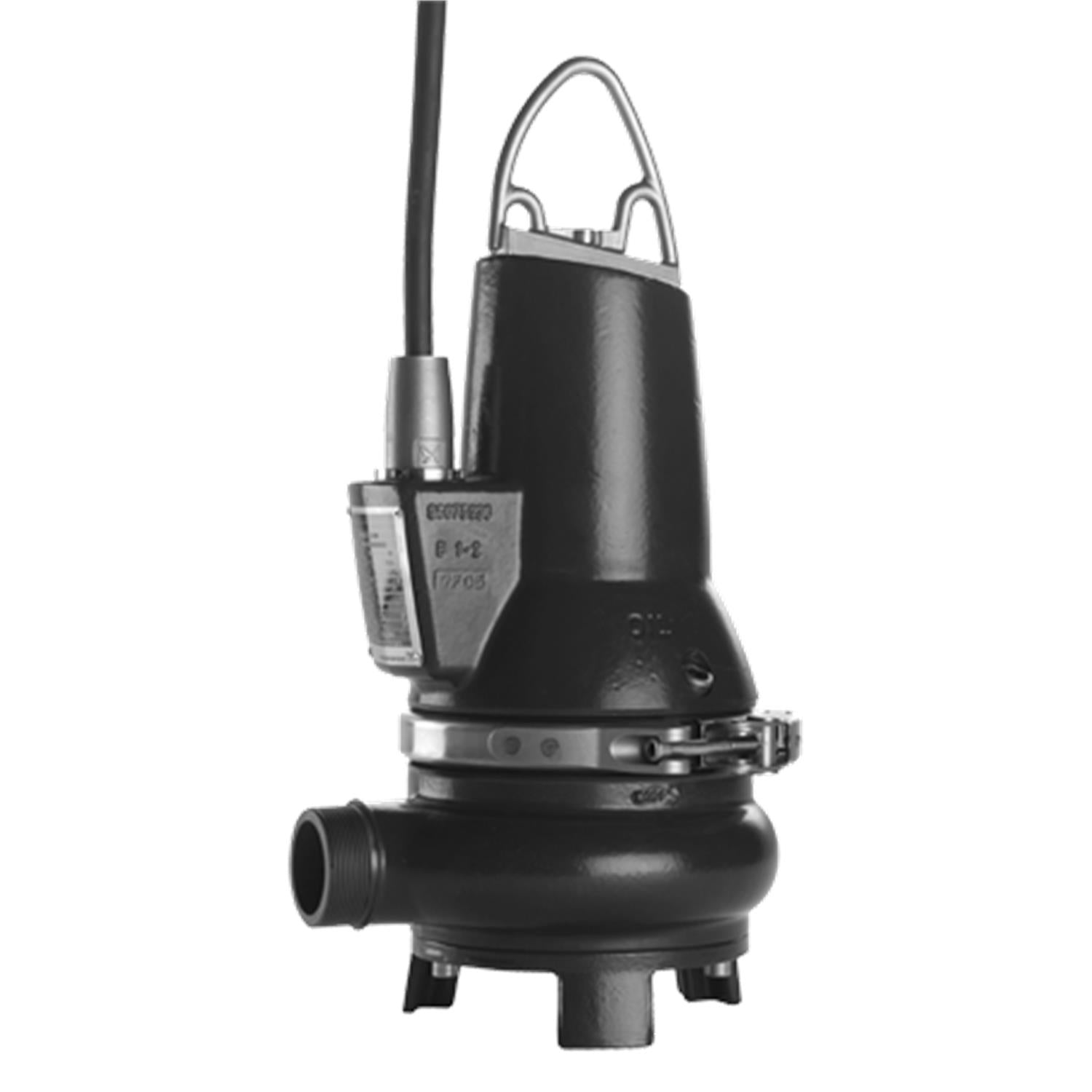

Grundfos 96104196 - EF30.50.15.2.50B
Roll over image to zoom in Click on image to zoom
Grundfos 96104196 - EF30.50.15.2.50B
Grundfos Pumps & Systems

Grundfos 96104196 - EF30.50.15.2.50B

GRUNDFOSSKU: 96104196

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96104196 · Grundfos Accessory / Spare Part / Control
ACC2HP400-415V3.0-Phase50 HzIP68Cast iron

The Grundfos 96104196 (EF30.50.15.2.50B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 88.9US gpm at 38.95ft. Rated 400-415V, 3.0-Phase, 50 Hz. Applications include Plumbing: Sewage, Municipal wastewater transport.

Power
2HP
Voltage
400-415V
Phase
3.0-Phase
Max Flow
88.9US gpm
Max Head
38.95ft
Max Pressure
87.02psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96104196
Series: ACC
Impeller Material: Cast iron
Housing Material: Cast iron
Shaft Seal: SiC/SiC
Flange Rating: PN 10
Technical Specifications
Model Number 96104196
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 2HP
Voltage 400-415V
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 2720rpm
Motor Protection PTO
Motor Efficiency 67%
Insulation Class F
Protection Class (IP) IP68
Nominal Flow 88.9US gpm
Nominal Head 38.95ft
Max Operating Pressure 87.02psi
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Nominal Pipe Bore 2inch
Pipe Pressure Rating PN 10
Pipe Standard Rs2
Impeller Material Cast iron
Housing Material Cast iron
Shaft Seal SiC/SiC
Approvals / Certifications EN 12050-2
Applications
Plumbing: Sewage
Municipal wastewater transport
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 400-415V, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96104196
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96104196 · 96104196Authorized Grundfos Distributor · pump-stop.com
EAN
5700396854236
Additional I/O
External
Approvals
LGA
Approvals and markings
22.5 m
Auto-coupling
Y
AUTOADAPT
NO
Battery back-up
22.5 m
Breakdown torque
12 Nm
Built-in motor protection
THERMAL SWITCH
Cable type
H07RN-F
Colour
22.5 m
Connect code
0.71
Control box
not included
Cos phi - p.f. at 1/2 load
0.71
Cos phi - p.f. at 3/4 load
0.81
Curve tolerance
ISO9906:2012 3B2
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP68
Explosion proof
no
Flow range
22.5 m
Head max
22.5 m
Housing
Cast iron
Impeller
Cast iron
Inst dry/wet
S
Insulation class (IEC 85)
F
Length
22.5 m
Length of cable
10 m
Liquid temperature range
32 .. 104 °F
Locked-rotor torque
11 Nm
Mains frequency
50 Hz
Material Pricing Group
7
Max flow
12.9 l/s
Max starts per hour
30
Maximum ambient temperature
104 °F
Maximum current consumption
0.71
Maximum installation depth
7 m
Maximum operating pressure
6 bar
Maximum particle size
30 mm
Moisture sensor
without moisture sensors
Moment of inertia
0.093 lb ft²
Motor
22.5 m
Motor efficiency at 1/2 load
0.63
Motor efficiency at 3/4 load
0.68
Motor efficiency at full load 1
0.67
Net weight
88.2 lb
Number of leads
22.5 m
Number of poles
2
Pipework connection
22.5 m
Power 1
2.2 kW
Power factor 1
0.88
Power input - P1
2.2 kW
Pressure retention valve
22.5 m
Primary shaft seal
SIC/SIC
Pump housing
Cast iron
Pump inlet
0.71
Pump outlet
R 2
Rated current
3.8 A
Rated current at 1/2 load
2.4 A
Rated current at 3/4 load
0.125
Rated current at no load
1.9 A
Rated power - P2
1.5 kW
Rated speed
2720 rpm
Rated voltage
3 x 400-415 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sens.interface
22.5 m
Size
30 mm
Start. method
direct-on-line
Starting current
21 A
Thermal protec
internal
Type
H07RN-F
Type of cable plug
No plug
Type of impeller
SEMI OPEN
Valve type
22.5 m
Voltage tolerance
+6/-10 %
Water-in-oil sensor
without water-in-oil sensor
