Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96922679 · Grundfos Accessory / Spare Part / Control

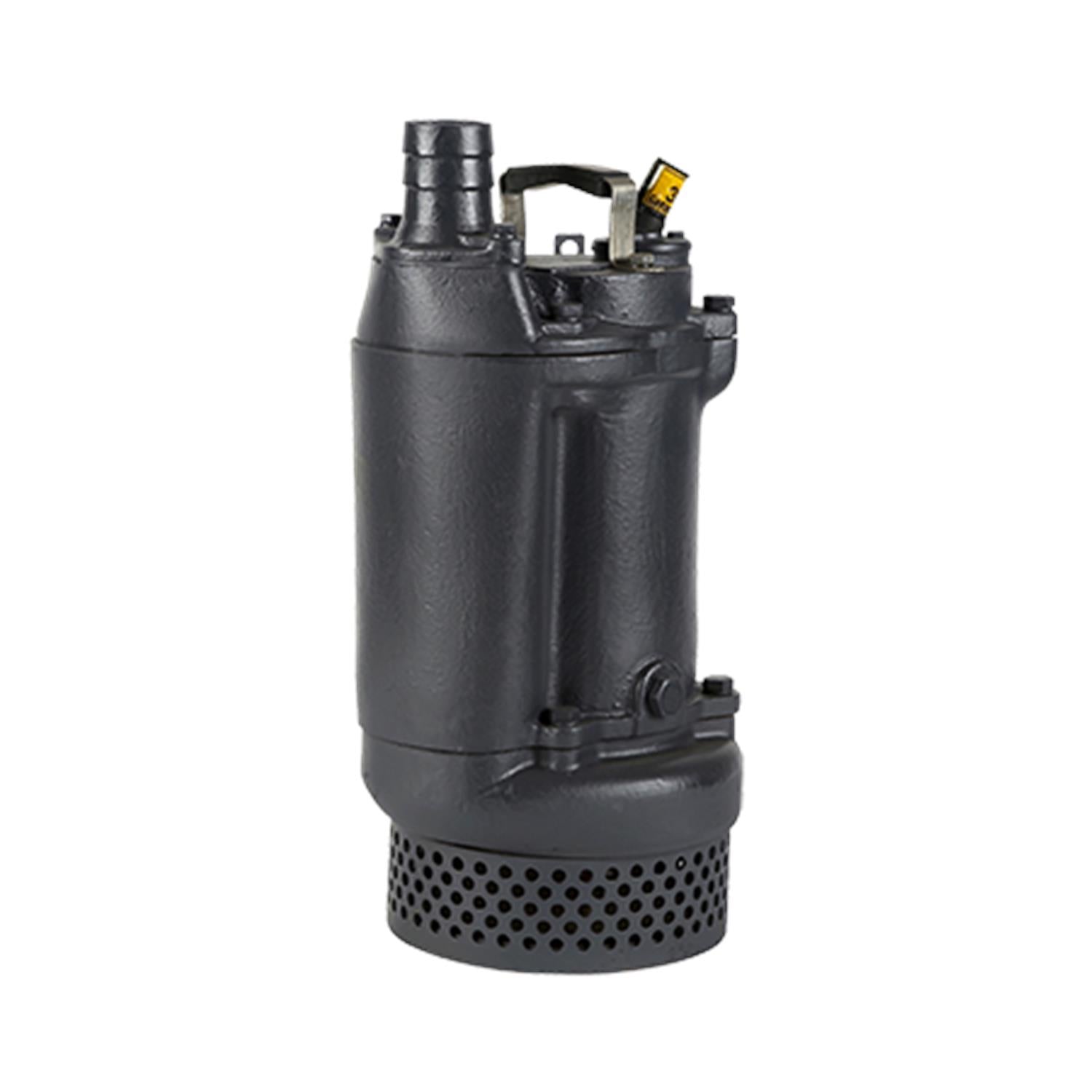

The Grundfos 96922679 (DWK.O.6.50.075.6.0D) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 56.7US gpm at 22.57ft. Rated 380-415V, 3.0-Phase, 60 Hz.
Power
1HP
Voltage
380-415V
Phase
3.0-Phase
Max Flow
56.7US gpm
Max Head
22.57ft
Max Pressure
82.67psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 96922679
Series: ACC
Impeller Material: Ductile cast iron
Housing Material: Cast iron
Flange Rating: PN 10
Technical Specifications
| Model Number | 96922679 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 1HP |
| Voltage | 380-415V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3450rpm |
| Full Load Current | 1.5A |
| Motor Protection | PTO |
| Motor Efficiency | 79.2% |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 56.7US gpm |
| Nominal Head | 22.57ft |
| Max Operating Pressure | 82.67psi |
| Max Fluid Temperature | 104°F |
| Max Ambient Temperature | 104°F |
| Outlet Connection | DN 50 |
| Pipe Pressure Rating | PN 10 |
| Impeller Material | Ductile cast iron |
| Housing Material | Cast iron |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 380-415V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96922679
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5700313724666
- Actual impeller diameter
- 3.74 in
- Approvals and markings
- 13.2 m
- Battery back-up
- 13.2 m
- Cable size
- 4X1.5MM2+2X1MM2
- Cable type
- PNCT
- Colour
- 13.2 m
- Connect code
- 0.72
- Cos phi - p.f. at 1/2 load
- 0.72
- Cos phi - p.f. at 3/4 load
- 0.82
- Curve tolerance
- ISO9906:2012 3B2
- Density
- 62.29 lb/ft³
- Diameter
- 3.74 in
- Enclosure class (IEC 34-5)
- IP68
- Explosion proof
- no
- Flow range
- 13.2 m
- Head max
- 13.2 m
- Head min
- 3.4 m
- Housing
- Cast iron
- Impeller
- Ductile cast iron
- Insulation class (IEC 85)
- F
- Length
- 13.2 m
- Length of cable
- 10 m
- Liquid temperature range
- 32 .. 104 °F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 7
- Max flow
- 5 l/s
- Max starts per hour
- 30
- Maximum ambient temperature
- 104 °F
- Maximum current consumption
- 0.72
- Maximum installation depth
- 25 m
- Maximum particle size
- 6 mm
- Motor
- Cast iron
- Motor efficiency at 1/2 load
- 0.725
- Motor efficiency at 3/4 load
- 0.775
- Motor efficiency at full load 1
- 0.792
- Net weight
- 86.0 lb
- Number of leads
- 13.2 m
- Number of poles
- 2
- Pipework connection
- 13.2 m
- Power factor 1
- 0.88
- Pressure retention valve
- 13.2 m
- Primary shaft seal
- SIC-SIC
- Pump housing
- Cast iron
- Pump inlet
- 0.72
- Pump outlet
- DN 50
- Rated current
- 1.5 A
- Rated current at 1/2 load
- 0.041666666666666664
- Rated current at 3/4 load
- 1.3 A
- Rated power - P2
- 0.75 kW
- Rated speed
- 3450 rpm
- Rated voltage
- 3 x 380-415 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Sens.interface
- 13.2 m
- Size
- 4X1.5MM2+2X1MM2
- Start. method
- direct-on-line
- Starting current
- 0.72
- Type
- PNCT
- Type of impeller
- O
- Valve type
- 13.2 m
- Voltage tolerance
- +5/-5 %
- Water-in-oil sensor
- without water-in-oil sensor
Dimensional Drawing
Wiring Diagram
