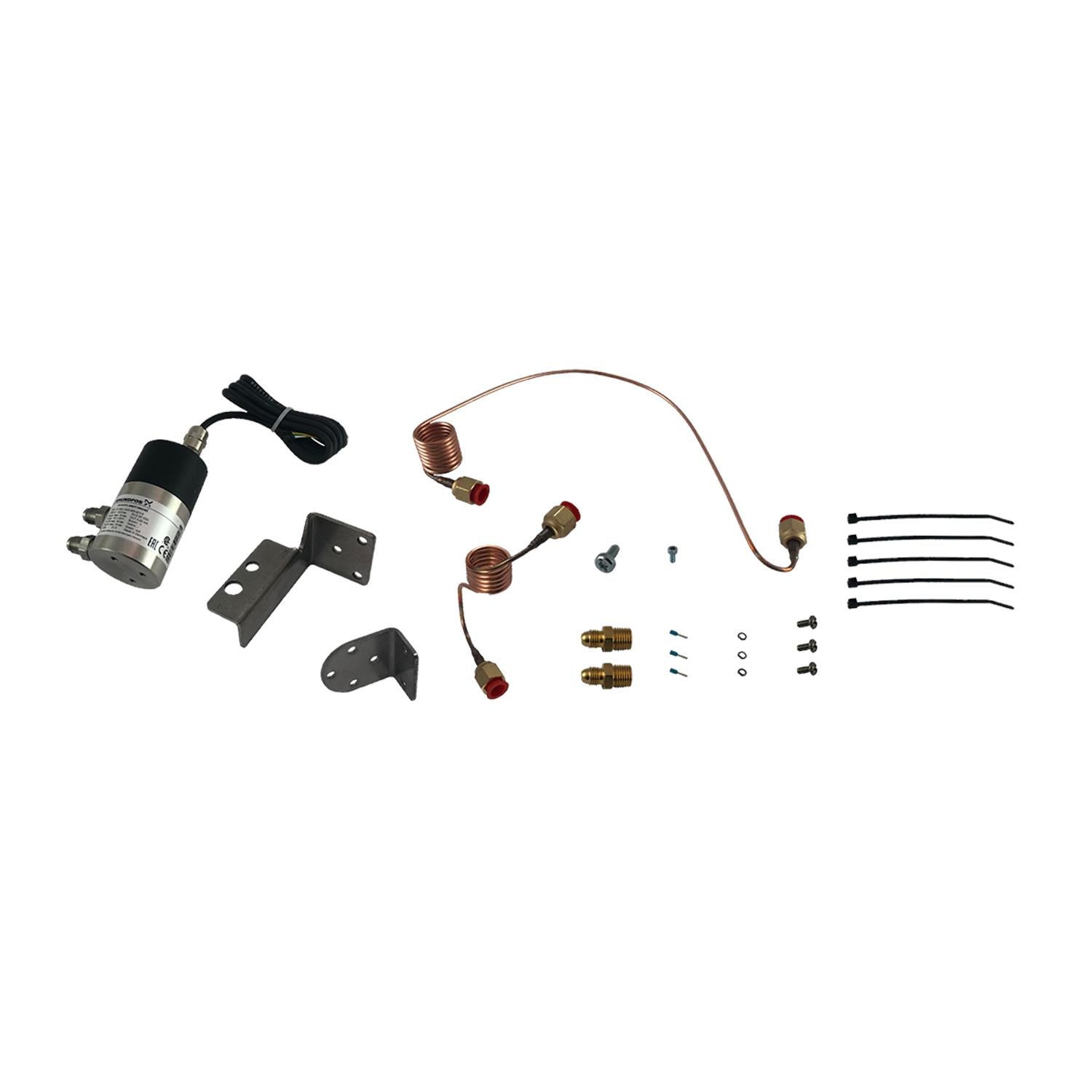

Grundfos 96611526 - DPI/--0-4.0b/1/ G/D.900-B/V-5/-B/02B/SD-1 | Pressure Sensor | Digital | Industrial

Save $210.90 This item ships free!
GRUNDFOSSKU: 96611526

Price:
Sale price$492.10 Regular price$703.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96611526 DPI/--0-4.0b/1/ G/D.900-B/V-5/-B/02B/SD-1 is a digital industrial pressure sensor/transmitter used with Grundfos controls and accessories for monitoring system pressure; suitable for technicians and plant maintenance teams. The transmitter housing is stainless steel (1.4404) for corrosion resistance.

Key features

  • Digital pressure sensing compatible with DPI series controls
  • Stainless steel 1.4404 construction for durability in industrial environments
  • Provides reliable pressure feedback for system monitoring and control

Applications

General industrial pressure measurement, integration with pump control systems, instrumentation panels, and process monitoring where robust, digital sensor feedback is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611526

EAN 5700834481574
Approvals EAC
Enclosure class (IEC 34-5) IP55
Flow functionality (Yes/No) N
Length of cable 0.9 m
Liquid temperature range 14 .. 158 °F
Material Pricing Group 46
Pressure differential functionality = Yes/No Y
Pressure relative functionality (Yes/No) N
Product family DPI
Range of ambient temperature -40 .. 158 °F
Rated voltage dc 30.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Danish VVS No. 475273040
Finnish LVI No. 4534506
Swedish RSK No. 6010205

Motor Curves

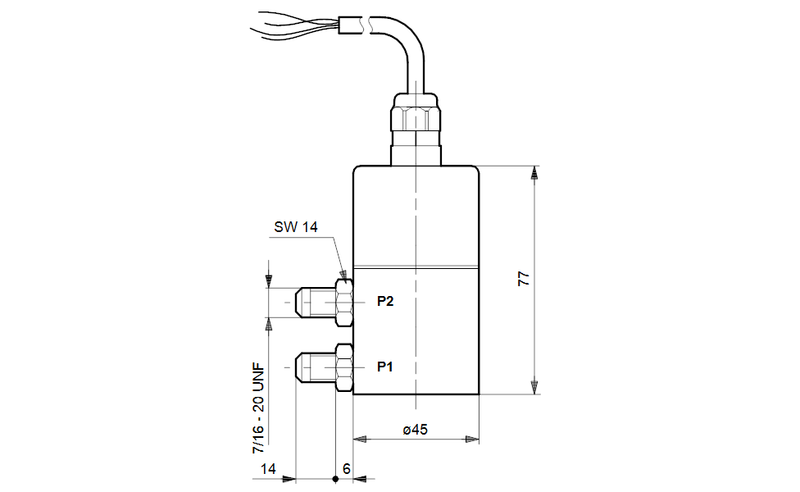

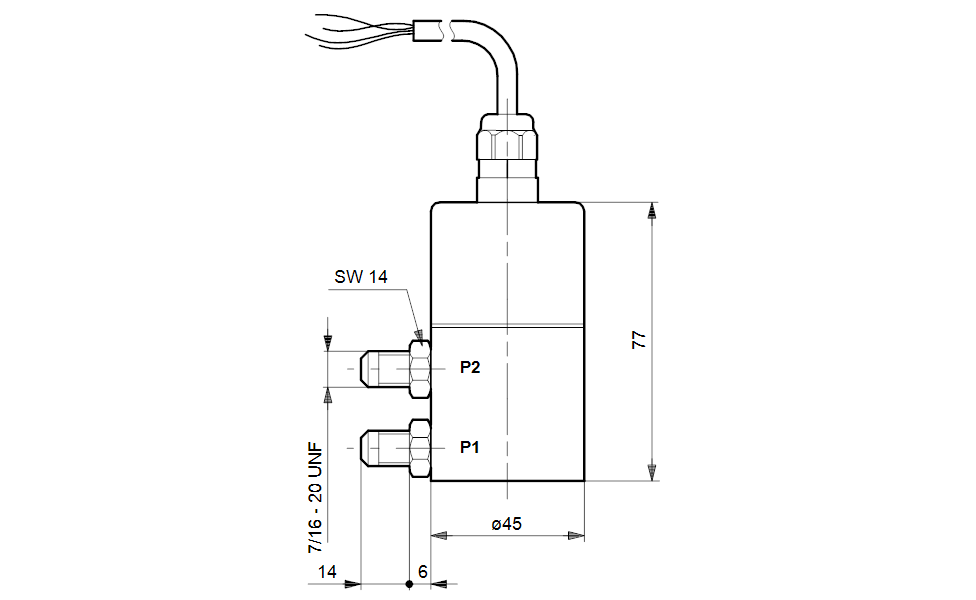

Dimensional Drawing
