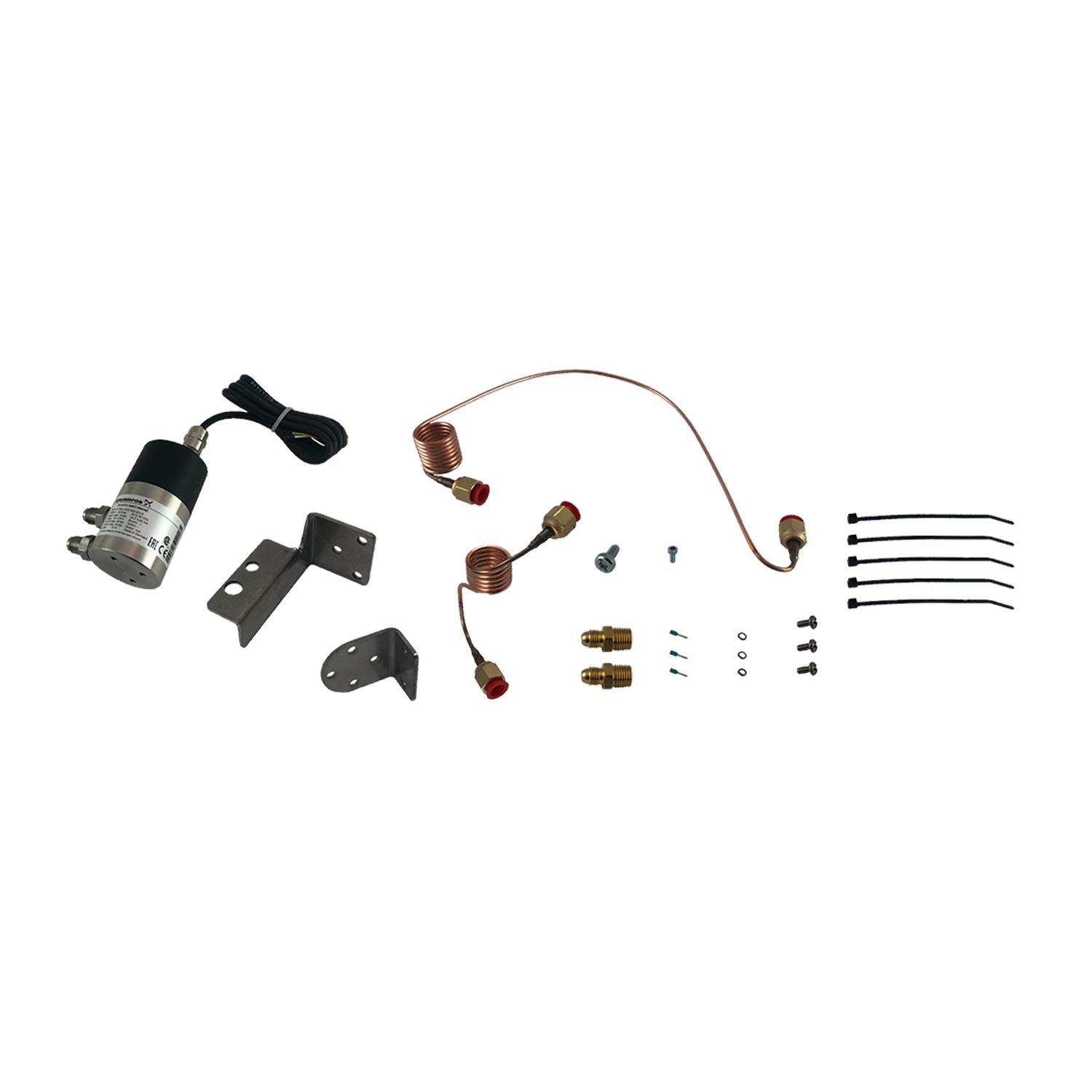

Grundfos 96611525 - DPI/--0-2.5b/1/ G/D.900-B/V-5/-B/02B/SD-1 | Pressure Sensor | Digital | Industrial

Save $210.90 This item ships free!
GRUNDFOSSKU: 96611525

Price:
Sale price$492.10 Regular price$703.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96611525 DPI/--0-2.5b/1/ G/D.900-B/V-5/-B/02B/SD-1 is a digital industrial pressure sensor/transmitter used in pump control and monitoring assemblies, suited for technicians and system integrators working with Grundfos controls and accessories.

Key features

  • Transmitter construction includes 1.4404 stainless steel for corrosion resistance
  • Designed for industrial sensor and control applications (DPI, Grundfos Controls & Accessories)
  • Provides reliable pressure measurement to support system protection and consistent operation

Applications

Typical uses include industrial pressure monitoring, pump control panels, process instrumentation, and replacement within OEM and field service kits.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611525

EAN 5700834481567
Approvals EAC
Enclosure class (IEC 34-5) IP55
Flow functionality (Yes/No) N
Length of cable 0.9 m
Liquid temperature range 14 .. 158 °F
Material Pricing Group 46
Pressure differential functionality = Yes/No Y
Pressure relative functionality (Yes/No) N
Product family DPI
Range of ambient temperature -40 .. 158 °F
Rated voltage dc 30.00 V
Real Time 1 Available on 10/13/2023 Plant: Fresno  Update with real time availability and Net price
Danish VVS No. 475273025
Finnish LVI No. 4534505
Swedish RSK No. 6010204

Motor Curves

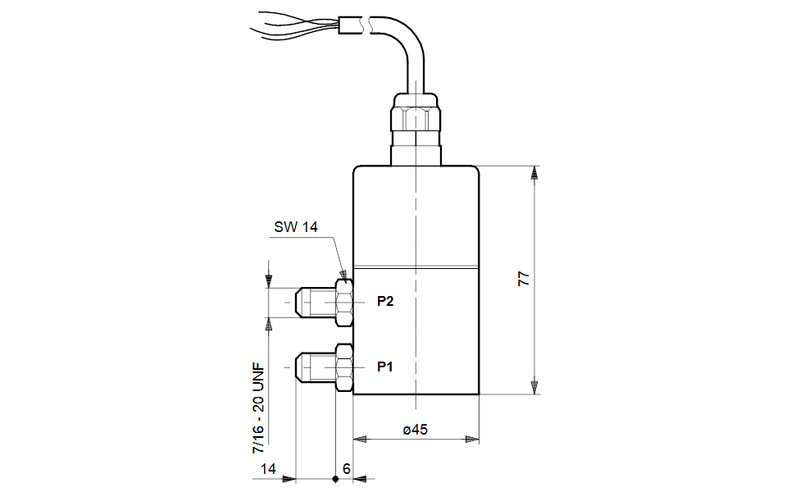

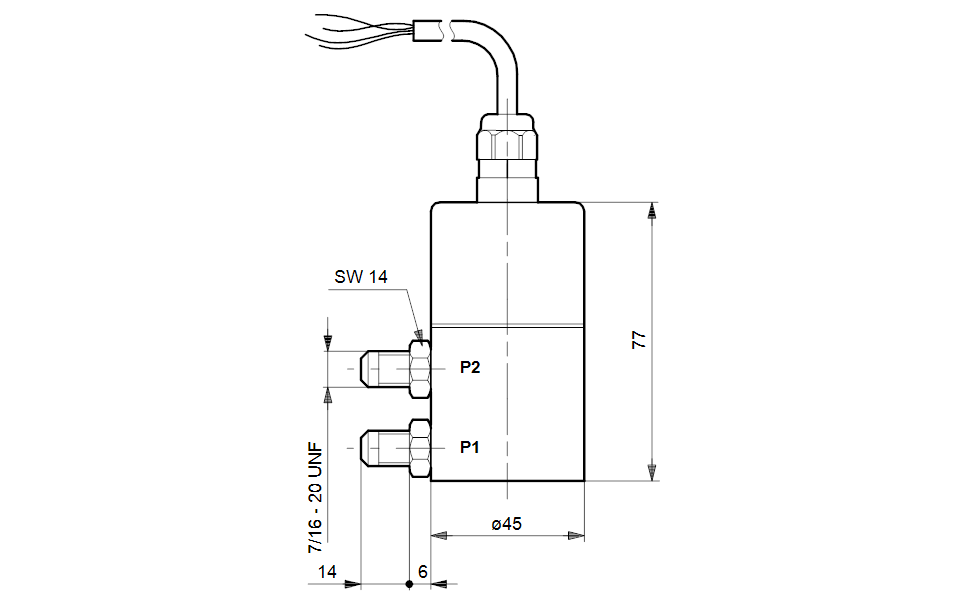

Dimensional Drawing
