Grundfos 96611550 - DPI/---0-10b/1/ G/D.900-B/V-5/-B/02B/SD-1 | Pressure Sensor | Digital | Industrial

Save $210.90 This item ships free!
GRUNDFOSSKU: 96611550

Price:
Sale price$492.10 Regular price$703.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96611550 DPI/---0-10b/1/ G/D.900-B/V-5/-B/02B/SD-1 is a digital pressure sensor/transmitter designed for industrial control systems and accessories, used by technicians and facility engineers for monitoring process pressures.

Key features

  • Stainless steel transmitter housing (1.4404) for corrosion resistance
  • Part of Grundfos controls and accessories, suitable for DPI applications
  • Provides accurate digital pressure feedback to support reliable system performance

Applications

Typical uses include industrial pressure monitoring, control panel integration, pump and compressor systems, and process automation where robust sensor feedback is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96611550

EAN 5700834481901
Approvals EAC
Enclosure class (IEC 34-5) IP55
Flow functionality (Yes/No) N
Length of cable 0.9 m
Liquid temperature range 14 .. 158 °F
Material Pricing Group 46
Pressure differential functionality = Yes/No Y
Pressure relative functionality (Yes/No) N
Product family DPI
Range of ambient temperature -40 .. 158 °F
Rated voltage dc 30.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Danish VVS No. 475273100
Finnish LVI No. 4534508

Motor Curves

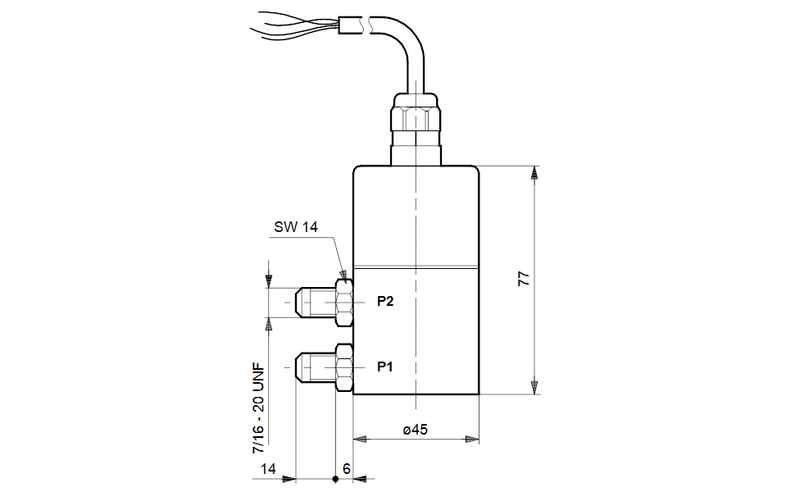

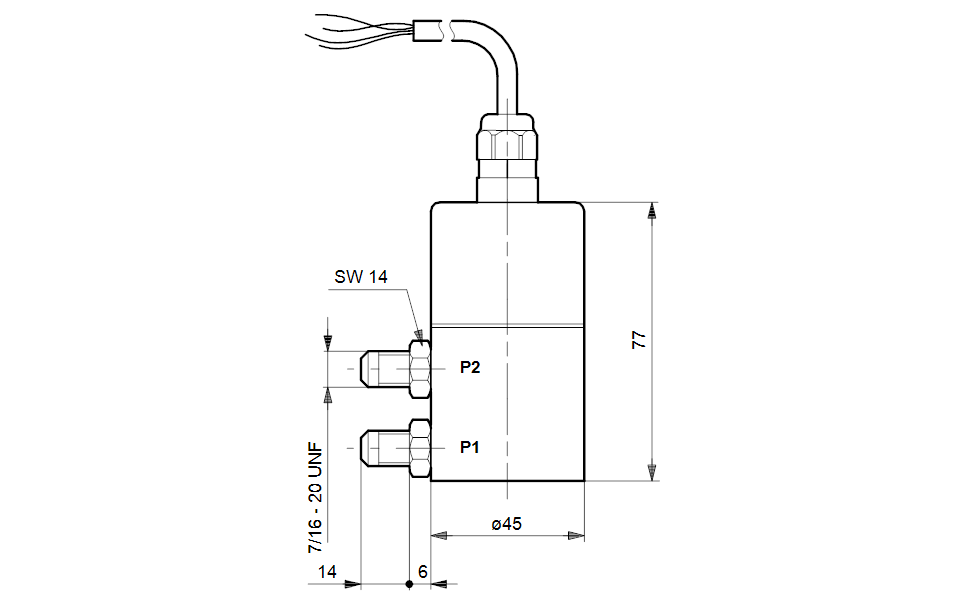

Dimensional Drawing
