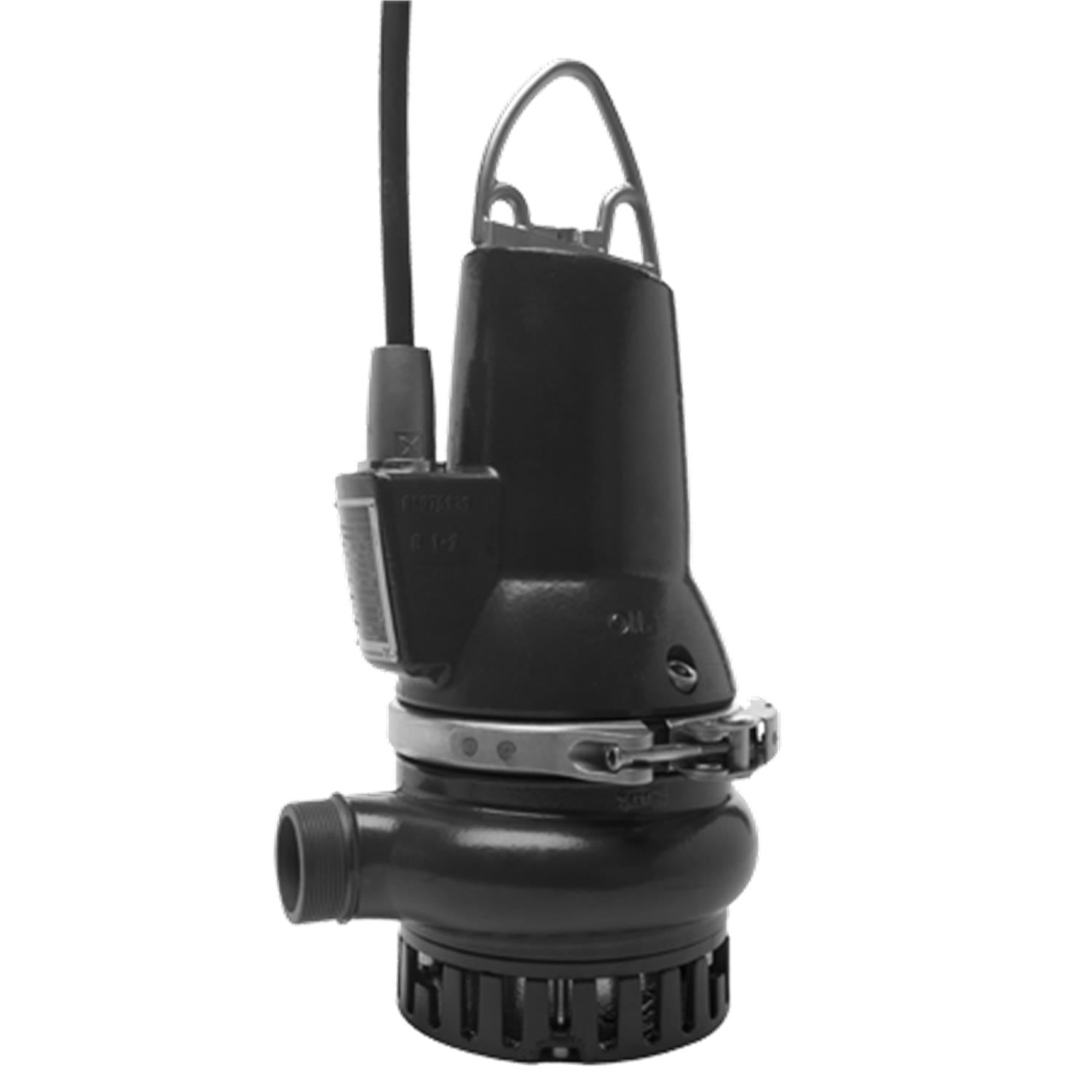

Grundfos 96104204 - DP10.50.09.2.50B
Roll over image to zoom in Click on image to zoom
Grundfos 96104204 - DP10.50.09.2.50B
Grundfos Pumps & Systems

Grundfos 96104204 - DP10.50.09.2.50B

GRUNDFOSSKU: 96104204

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
96104204 · Grundfos Accessory / Spare Part / Control
ACC1.21HP400-415V3.0-Phase50 HzIP68Cast iron

The Grundfos 96104204 (DP10.50.09.2.50B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 88.1US gpm at 28.35ft. Rated 400-415V, 3.0-Phase, 50 Hz. Applications include Plumbing: Sewage, Residential wastewater, Municipal wastewater transport.

Power
1.21HP
Voltage
400-415V
Phase
3.0-Phase
Max Flow
88.1US gpm
Max Head
28.35ft
Max Pressure
87.02psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 96104204
Series: ACC
Impeller Material: Cast iron
Housing Material: Cast iron
Flange Rating: PN 10
Technical Specifications
Model Number 96104204
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1.21HP
Voltage 400-415V
Phase 3.0-Phase
Frequency 50 Hz
Motor Speed 2870rpm
Motor Protection PTO
Motor Efficiency 65%
Insulation Class F
Protection Class (IP) IP68
Nominal Flow 88.1US gpm
Nominal Head 28.35ft
Max Operating Pressure 87.02psi
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Outlet Connection R 2
Pipe Pressure Rating PN 10
Pipe Standard Rs2
Impeller Material Cast iron
Housing Material Cast iron
Approvals / Certifications LGA
Applications
Plumbing: Sewage
Residential wastewater
Municipal wastewater transport
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 400-415V, 3.0-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 96104204
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 96104204 · 96104204Authorized Grundfos Distributor · pump-stop.com
EAN
5700396852645
Additional I/O
External
Approvals
LGA
Approvals and markings
13.8 m
AUTOADAPT
NO
Battery back-up
13.8 m
Breakdown torque
12 Nm
Built-in motor protection
THERMAL SWITCH
Cable type
H07RN-F
Colour
13.8 m
Connect code
0.58
Control box
not included
Cos phi - p.f. at 1/2 load
0.58
Cos phi - p.f. at 3/4 load
0.68
Curve tolerance
ISO9906:2012 3B2
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP68
Explosion proof
no
Flow range
13.8 m
Head max
13.8 m
Housing
Cast iron
Impeller
Cast iron
Inst dry/wet
S
Insulation class (IEC 85)
F
Length
13.8 m
Length of cable
10 m
Liquid temperature range
32 .. 104 °F
Locked-rotor torque
11 Nm
Mains frequency
50 Hz
Material Pricing Group
7
Max flow
11.8 l/s
Max starts per hour
30
Maximum ambient temperature
104 °F
Maximum current consumption
0.58
Maximum installation depth
7 m
Maximum operating pressure
6 bar
Maximum particle size
10 mm
Moisture sensor
without moisture sensors
Moment of inertia
0.078 lb ft²
Motor
13.8 m
Motor efficiency at 1/2 load
0.58
Motor efficiency at 3/4 load
0.61
Motor efficiency at full load 1
0.65
Net weight
94.8 lb
Number of leads
13.8 m
Number of poles
2
Pipework connection
13.8 m
Power 1
1.4 kW
Power factor 1
0.76
Power input - P1
1.4 kW
Pressure retention valve
13.8 m
Primary shaft seal
SIC/SIC
Pump housing
Cast iron
Pump inlet
0.58
Pump outlet
R 2
Rated current
2.8 A
Rated current at 1/2 load
2.1 A
Rated current at 3/4 load
2.5 A
Rated current at no load
1.9 A
Rated power - P2
0.9 kW
Rated speed
2870 rpm
Rated voltage
3 x 400-415 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sens.interface
13.8 m
Size
10 mm
Start. method
direct-on-line
Starting current
21 A
Thermal protec
internal
Type
H07RN-F
Type of cable plug
No plug
Type of impeller
SEMI OPEN
Valve type
13.8 m
Voltage tolerance
+6/-10 %
Water-in-oil sensor
without water-in-oil sensor
