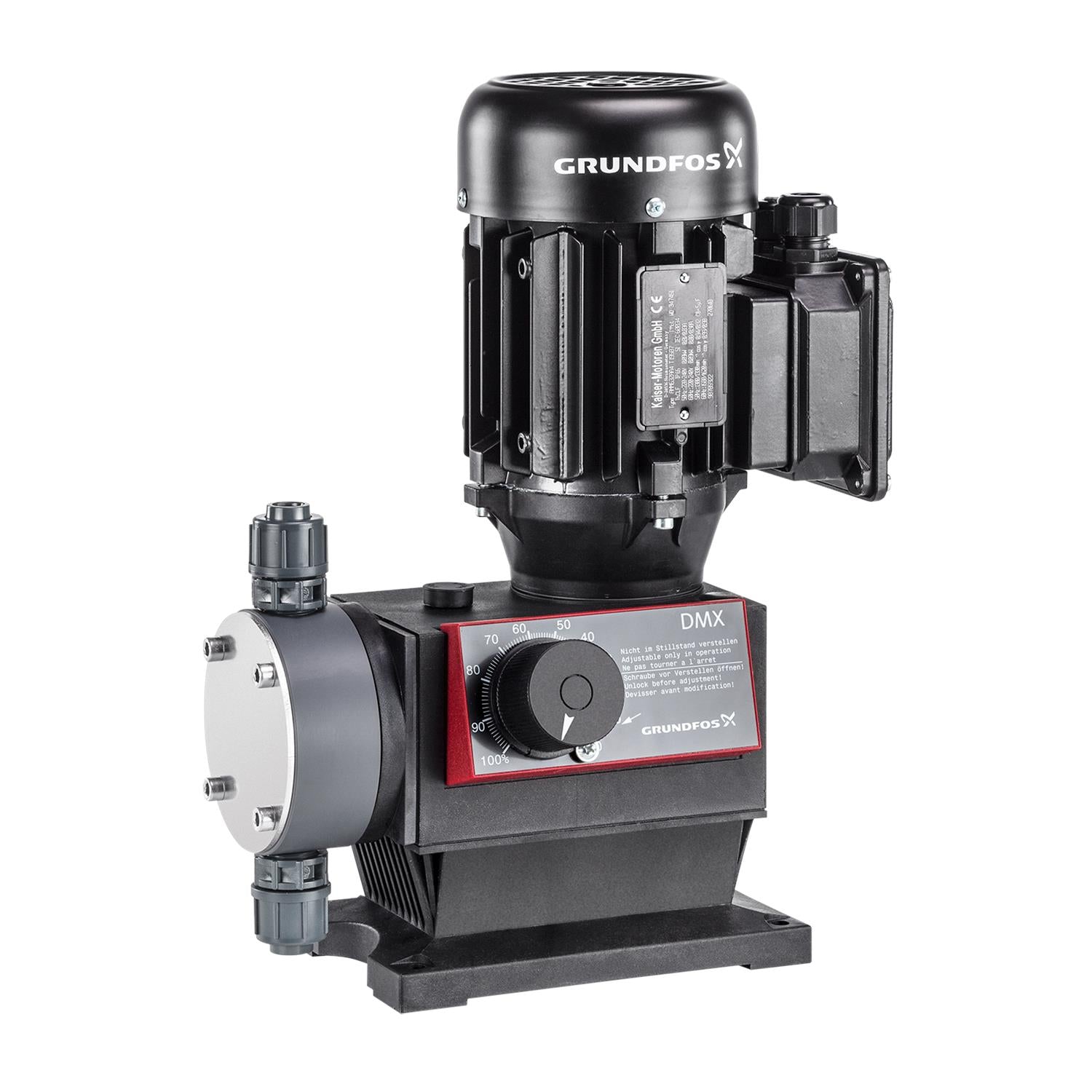

![Grundfos 99773013 - DMX 8-10 AR-PVC/T/T-S-H1A9A9BEMNG]()
![Grundfos 99773013 - DMX 8-10 AR-PVC/T/T-S-H1A9A9BEMNG]()
![Grundfos 99773013 - DMX 8-10 AR-PVC/T/T-S-H1A9A9BEMNG]()
![Grundfos 99773013 - DMX 8-10 AR-PVC/T/T-S-H1A9A9BEMNG]()
Description
Grundfos 99773013 - DMX 8-10 AR-PVC/T/T-S-H1A9A9BEMNG This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713834058202
Applications
Dosing & Disinfection
Material Pricing Group
62
Density
62.29 lb/ft³
Size of inlet connection
1/2 inch
Selected liquid temperature
68 °F
Power input P1
0.09 kW
Rated voltage
1 x 110/120 V
Pumped liquid
Water
Size of outlet connection
1/2 inch
Liquid temperature range
32 .. 104 °F
Mains frequency
60 Hz
Net weight
15.4 lb
Gross weight
21.1 lb
Enclosure class (IEC 34-5)
IP65
Type of outlet connection
NPT(M)
Frequency converter
Not prepared for VFD
Control variant
AR Electronic
Max. frequency
60 Hz
Approvals
CE
Nominal flow rate at 60 Hz
9.6 l/h
Power 1
0.09 kW
Housing
Thermoplastic
Number of dosing heads
1
Gasket
PTFE
Valve ball
Composite
Connection
1/2 inch
Pump housing
Thermoplastic
Cable included (Yes/No)
Y
Type of inlet connection
NPT(M)
Non return valve type, inlet pump 1
Standard
Maximum permissible inlet pressure
0 bar
Power plug
US plug
