Image shown may not be actual product

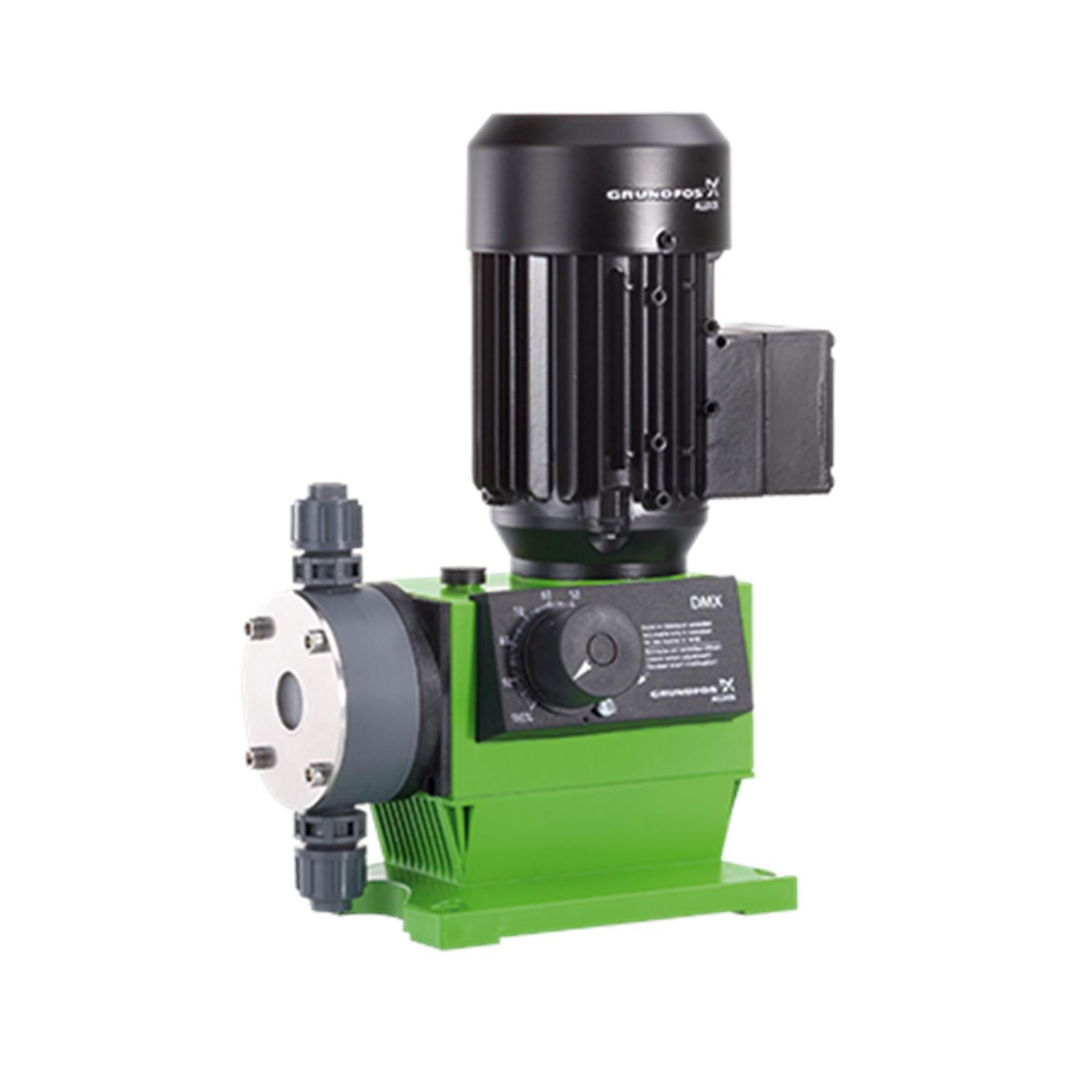

![Grundfos 96650928 - DMX 35-10 B-PVC/V/G-X-E1B1B1]()
![Grundfos 96650928 - DMX 35-10 B-PVC/V/G-X-E1B1B1]()
![Grundfos 96650928 - DMX 35-10 B-PVC/V/G-X-E1B1B1]()
![Grundfos 96650928 - DMX 35-10 B-PVC/V/G-X-E1B1B1]()
Description
Grundfos 96650928 - DMX 35-10 B-PVC/V/G-X-E1B1B1 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5700836747319
Applications
Dosing & Disinfection
Material Pricing Group
62
Density
62.29 lb/ft³
Size of inlet connection
6/12, 12
Selected liquid temperature
68 °F
Power input P1
0,090 kW kW
Rated voltage
3 x 230/400 V, 50/60 Hz 440/480 V, 60 Hz V
Pumped liquid
Water
Size of outlet connection
6/12, 12
Mains frequency
50 Hz
Mains cable
NO CABLE m
Enclosure class (IEC 34-5)
IP 65/F
Pulse control
Not integrated
Level control
Not integrated
Type of outlet connection
Connection pack
Control panel
No control panel (without AR control)
Frequency converter
Not prepared for VFD
Other in/output
Not integrated
Control variant
B
Max. frequency
50 Hz
Stroke control
manual
Nominal flow rate at 50 Hz
35 l/h
Approvals
CE
Power 1
0
Flow rate adjustment
manual
Number of dosing heads
1
Grundfos Alldos PN
221-35-10004
Connection
45266
Adjustment
manual
Analog input
Not integrated
Type of inlet connection
Connection pack
Non return valve type, inlet pump 1
Not spring-loaded
Power plug
No plug
