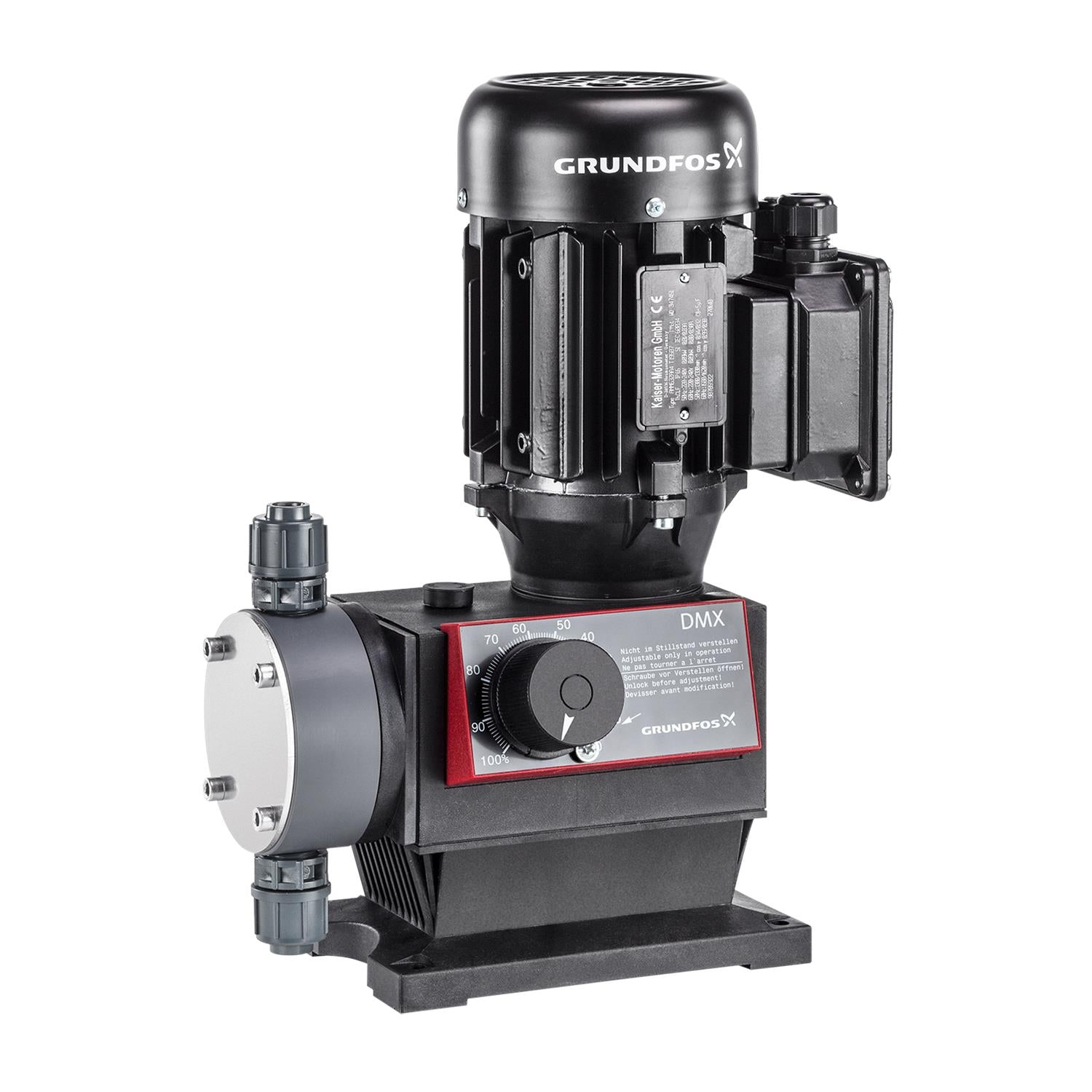

Grundfos 99773107 - DMX 18-10 B-PVC/T/T-X-H1A9A9BEMNG
Grundfos 99773107 - DMX 18-10 B-PVC/T/T-X-H1A9A9BEMNG
Grundfos 99773107 - DMX 18-10 B-PVC/T/T-X-H1A9A9BEMNG
Grundfos 99773107 - DMX 18-10 B-PVC/T/T-X-H1A9A9BEMNG

Grundfos 99773107 - DMX 18-10 B-PVC/T/T-X-H1A9A9BEMNG

GRUNDFOSSKU: 99773107
Price:
$3,484.72
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

DMX 18-10 B-PVC/T/T-X-H1A9A9BEMNG | The 221 pump of the DMX series is a versatile positive displacement diaphragm dosing pump. The diaphragm is coupled mechanically via a precise gear-eccenter-tapet-system to a high efficiency AC motor. The dosing capacity is adjusted by varying the stroke length at the stroke adjustment knob in the ratio 1: 10. The liquid end is composed of: Dosing head
PTFE coated diaphragm
Double ball valves up to 50 l/h and single ball valves from 60 l/hOther features: Robust industrial pump with chemical resistance plastic enclosure
Easy to install and operate design
Long life PTFE coated diaphragm
Optimum capacity and stroke frequency graduation
Dosing flow variation < ±1. 5%, linearity
±4%Electronics features: Applies only to pumps with control variant: AR Etron Profi microprocessor electronics, direct attached to motor: Stroke frequency adjustable from 1 stroke/min to maximum stroke frequency
Pulse control with multiplier and divisor
Analog signal control 0/4-20 mA
Level control with input for two level signals.
Pulse, analog and remote on/off input
Analog output
Alarm relay output
Stroke output
Input for dosing controller and diaphragm monitoring sensorApplies only to pumps with control variant: AT0Automatic adjustment of stroke length via direct drive control or mA-input signal
Block-proof synchronous motor with feedback potentiometer
Two limit switches
For further specifications please refer to servomotor
EAN 5713834060083
Applications Dosing & Disinfection
Material Pricing Group 62
Density 62.29 lb/ft³
Size of inlet connection 1/2 inch
Selected liquid temperature 68 °F
Power input P1 0.09 kW
Rated voltage 1 x 110/120 V
Pumped liquid Water
Size of outlet connection 1/2 inch
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Net weight 15.4 lb
Gross weight 21.1 lb
Enclosure class (IEC 34-5) IP65
Type of outlet connection NPT(M)
Frequency converter Not prepared for VFD
Control variant Standard
Max. frequency 60 Hz
Approvals CE
Nominal flow rate at 60 Hz 21.6 l/h
Power 1 0.09 kW
Housing Thermoplastic
Number of dosing heads 1
Gasket PTFE
Valve ball Composite
Connection 1/2 inch
Pump housing Thermoplastic
Cable included (Yes/No) N
Type of inlet connection NPT(M)
Non return valve type, inlet pump 1 Standard
Maximum permissible inlet pressure 0 bar
Power plug US plug
