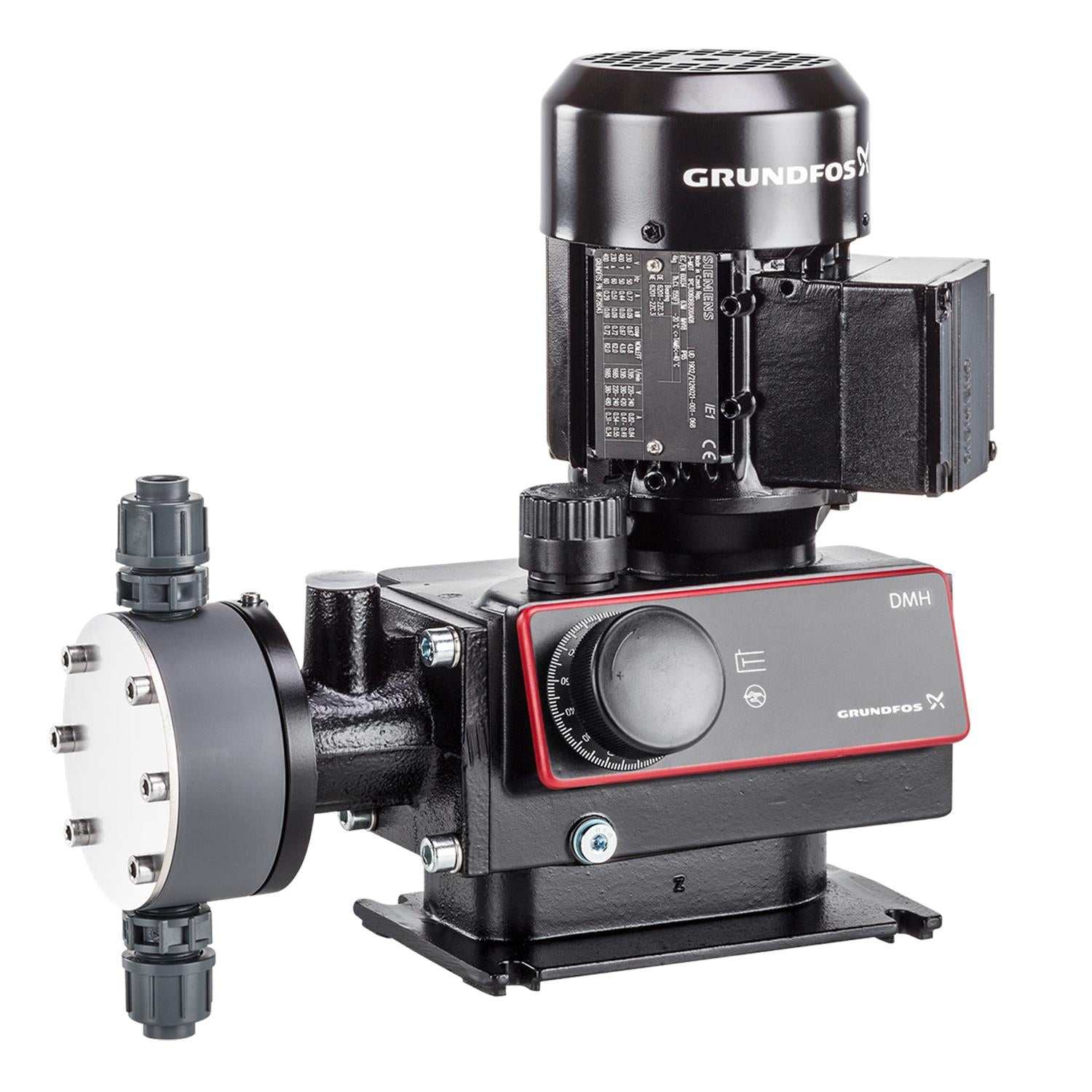

DMH 12-16 B-PVC/E/C-X-E1U2U2XE0AG | The pump of the DMH series is a versatile positive displacement diaphragm dosing pump. The diaphragm is coupled hydraulically via a precise gear-eccenter-tapet-system to a high efficiency AC motor. The dosing capacity is adjusted by varying the stroke length at the stroke adjustment knob in the ratio 1 to 10. The range is highly versatile, it covers a wide flow range and offers a variety of dosing head sizes, materials and accessories. Customers worldwide have enjoyed years of trouble-free operation from their DMH pumps. The Grundfos DMH range is a series of extremely strong, robust pumps for applications requiring reliable dosing capability, such as process engineering. The liquid end is composed of: Dosing head
PTFE diaphragm
Ball valvesOther features: Robust industrial pump with aluminium or cast iron enclosure
Easy to install and operate design
Long life PTFE diaphragm
Optimum capacity and stroke frequency graduation
Dosing flow variation ±1. 5% (FS), linearity ±2% (FS)Applies only to pumps with: ATEX certification The dosing pump DMH 25x is certified according to the ATEX guideline RL 94/9/EC for non-electrical operating supplies. The motor versions EEx e and EEx de defined by Grundfos are certified by the manufacturers according to ATEX guidelines for electrical operating supplies. The motor type plate is labelled according to ATEX. The ATEX approved DMH pumps are available in a variety of configurations - some can be used for dosing combustible liquids. Electronics features: Applies only to pumps with control variant: AR Etron Profi microprocessor electronics, direct attached to motor: Stroke frequency adjustable from 1 stroke/min to maximum stroke frequency
Pulse control with multiplier and divisor
Analogue signal control 0/4-20 mA
Level control with input for two level signals.
Pulse, analogue and remote on/off input
Analogue output
Alarm relay outputStroke output
Input for dosing controller and diaphragm monitoring sensor Applies only to pumps with control variant: D3; D6Automatic adjustment of stroke length via direct drive control or mA-input signal
For further specifications please refer to servomotor

EAN 5713834767586
Applications Dosing & Disinfection
Material Pricing Group 63
Density 62.29 lb/ft³
Size of inlet connection 4/6, 6/9, 6/12, 9/12
Selected liquid temperature 68 °F
Power input P1 0.2 kW
Rated voltage 3 x 230/400 V
Pumped liquid Water
Size of outlet connection 4/6, 6/9, 6/12, 9/12
Liquid temperature range 32 .. 68 °F
Mains frequency 50 Hz
Net weight 26.5 lb
Gross weight 51.3 lb
Enclosure class (IEC 34-5) IP65
Type of outlet connection Connection pack
Frequency converter Prepared for VFD
Control variant Standard
Max. frequency 100 Hz
Nominal flow rate at 50 Hz 12 l/h
Approvals CE
Power 1 0.2 kW
Housing Aluminium
Number of dosing heads 1
Gasket EPDM
Valve ball Ceramic
Connection 45081
Pump housing Aluminium
Cable included (Yes/No) N
Type of inlet connection Connection pack
Non return valve type, inlet pump 1 Standard
Maximum permissible inlet pressure 8 bar
Power plug No plug
