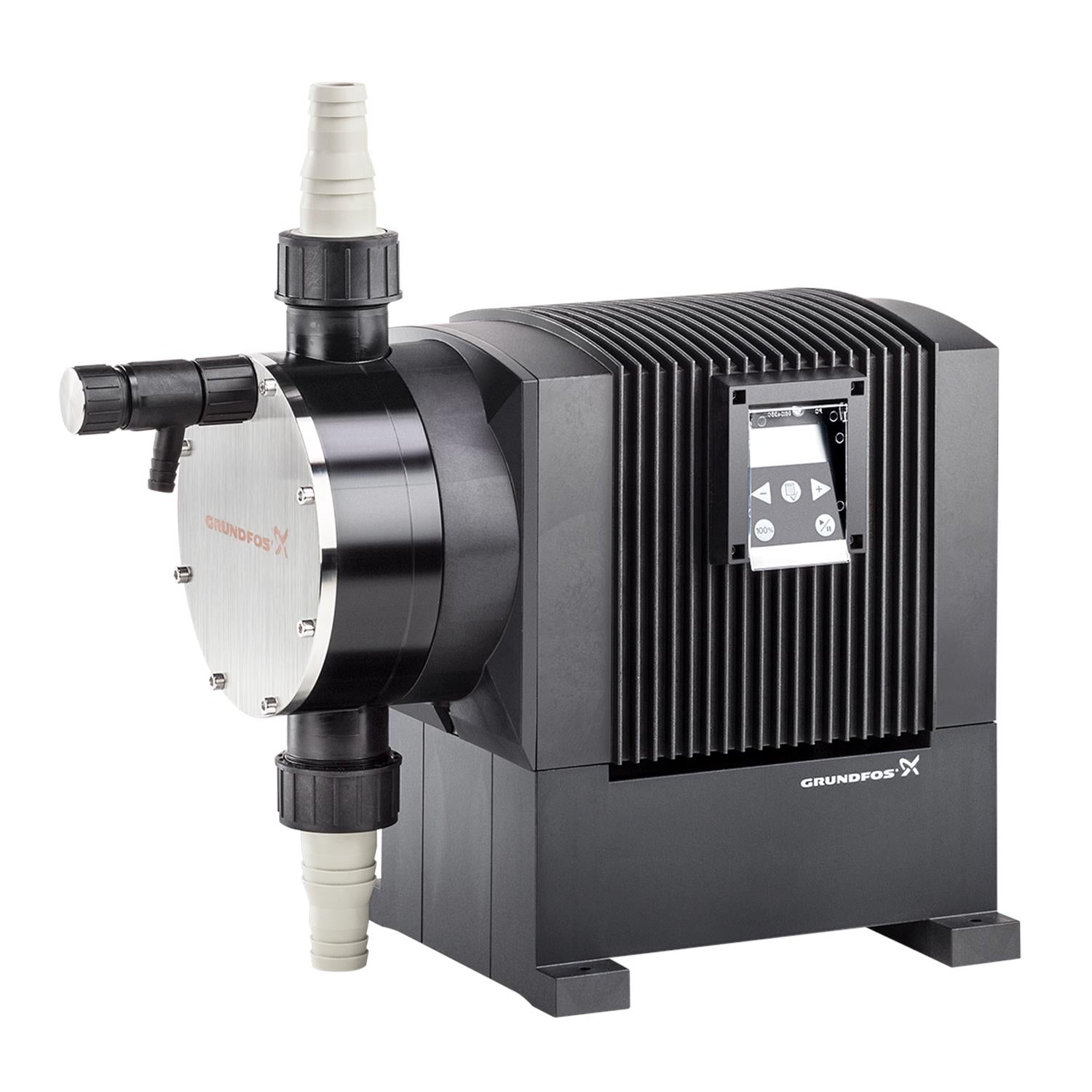

![Grundfos 95905976 - DME940-4AR PV/V/C-F-31A4A4B]()
![Grundfos 95905976 - DME940-4AR PV/V/C-F-31A4A4B]()
![Grundfos 95905976 - DME940-4AR PV/V/C-F-31A4A4B]()
![Grundfos 95905976 - DME940-4AR PV/V/C-F-31A4A4B]()
Description
DME940-4AR PV/V/C-F-31A4A4B |
EAN
5700837555081
Applications
Dosing & Disinfection
4-20 mA control
input for analog 4-20 mA control integrated
Anti-cavitation
function integrated
Approvals
CE
Batch (puls)
puls-based batch function integrated
Batch (timer)
timer-based batch function integrated
Capacity
940 l/h
Capacity limit
max. capacity limitation function integrated
Control panel
front
Control variant
AR
Density
62.29 lb/ft³
Gasket
FKM
Gross weight
59.8 lb
Housing
PVDF
Level control
input for dual-level sensor or external start/stop integrated
Mains frequency
60 Hz
Material Pricing Group
42
Max. capacity 1
940 l/h
Maximum operating pressure
4 bar
Model
A
Net weight
52.9 lb
Other in/output
ALARM RELAY
Power 1
240 W
Power input - P1
240 W
Product family
DME
Pulse control
input for pulse control integrated
Pump housing
PVDF
Pump inlet
THREADED NPT 1 1/4"
Pump outlet
THREADED NPT 1 1/4"
Pumped liquid
Water
Rated current
2.4 A
Rated voltage
1 x 120-240 V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Selected liquid temperature
68 °F
Type of cable plug
USA
Valve
Standard
Valve ball
Ceramic
Venting valve
integrated in pump housing
Motor Curves
Dimensional Drawing
OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)
Water Utility, Optimized solutions for Municipalities (Product brochure)
DME, Variant AR, 16 to 248 gph (60-940 l/h) (Installation and operating instructions)
DME, Variant B (Multi language)
DME, A (2-48 l/h) (Installation and operating instructitons)
